THE COMPLETE PRACTITIONER'S CODEX: VOLUME 6

The Builder's Testament: Complete Construction, Shelter, Earthworks, and Infrastructure

<!-- SECTION 1 -->

The Complete Practitioner's Codex, Volume I: Geomancy and Ley Lines

Chapter III: Detailed Mapping and Interpretation of Telluric Grids — Hartmann, Curry, and Benker Lines

Preface

This chapter imparts the sacred and secret knowledge of telluric grids—energy networks woven into the earth’s crust—whose manipulation and understanding constitute the foundation of all advanced geomantic practice. These grids influence human health, structural integrity, and metaphysical stability. The Hartmann, Curry, and Benker lines represent the triad of primary telluric grids historically suppressed by orthodox science and ruling powers.

Section 1: Overview of Telluric Grids

1.1 Telluric Grid Fundamentals

Telluric grids are networks of electromagnetic and subtle-energy lines intersecting at nodes of amplified energy. Their energies oscillate between constructive and pathogenic states depending on location, time, and human interaction.

Section 2: Construction of the Dowsing Rods for Telluric Grid Detection

2.1 Materials and Tools

• High-quality spring steel wire, 1.5 mm diameter, length 30 cm (two rods)
• Non-metallic handle sleeves (wood or plastic), 10 cm length
• Fine sandpaper
• Precision wire cutters
• Protective gloves

2.2 Rod Fabrication Procedure

1. Cut two identical lengths of spring steel wire, each exactly 30 cm long.
2. Shape each wire into an L-form: bend the wire at 7.5 cm from one end at a perfect 90-degree angle, using a jig or protractor for precision.
3. Smooth all wire ends and bends using fine sandpaper to prevent injury or snagging.
4. Attach non-metallic handle sleeves to the long end (approx. 22.5 cm) to ensure no conductive interference from the hands.
5. Calibrate the rods by holding them loosely and practicing their natural pivot motion; the short arm should swing freely in response to energetic stimuli.

2.3 Calibration Protocol

1. Select a known water source or previously mapped telluric line.
2. Hold the rods parallel, handles in hand, with short arms pointing forward.
3. Walk slowly over the source or line, observing the rods for natural crossing or divergent motion.
4. Adjust grip tension to allow the rods to pivot without resistance.
5. Repeat over multiple known lines to verify consistent response.

Section 3: Protocol for Site Traversal and Telluric Line Mapping

3.1 Equipment Required

• Calibrated dowsing rods (as above)
• Field notebook with pre-printed grid mapping templates (scale 1:50)
• Non-reflective flagging tape, colored per line type (see 3.5)
• GPS device (optional, for rough coordinates)
• Compass
• Digital camera for site documentation

3.2 Grid Mapping Procedure

3.2.1 General Site Preparation

1. Clear the site of large metallic objects and electromagnetic devices that may distort readings.
2. Ensure the operator is mentally centered, having rested and hydrated.
3. Mark a fixed reference point (RP) at site entrance with a flag and GPS coordinates.

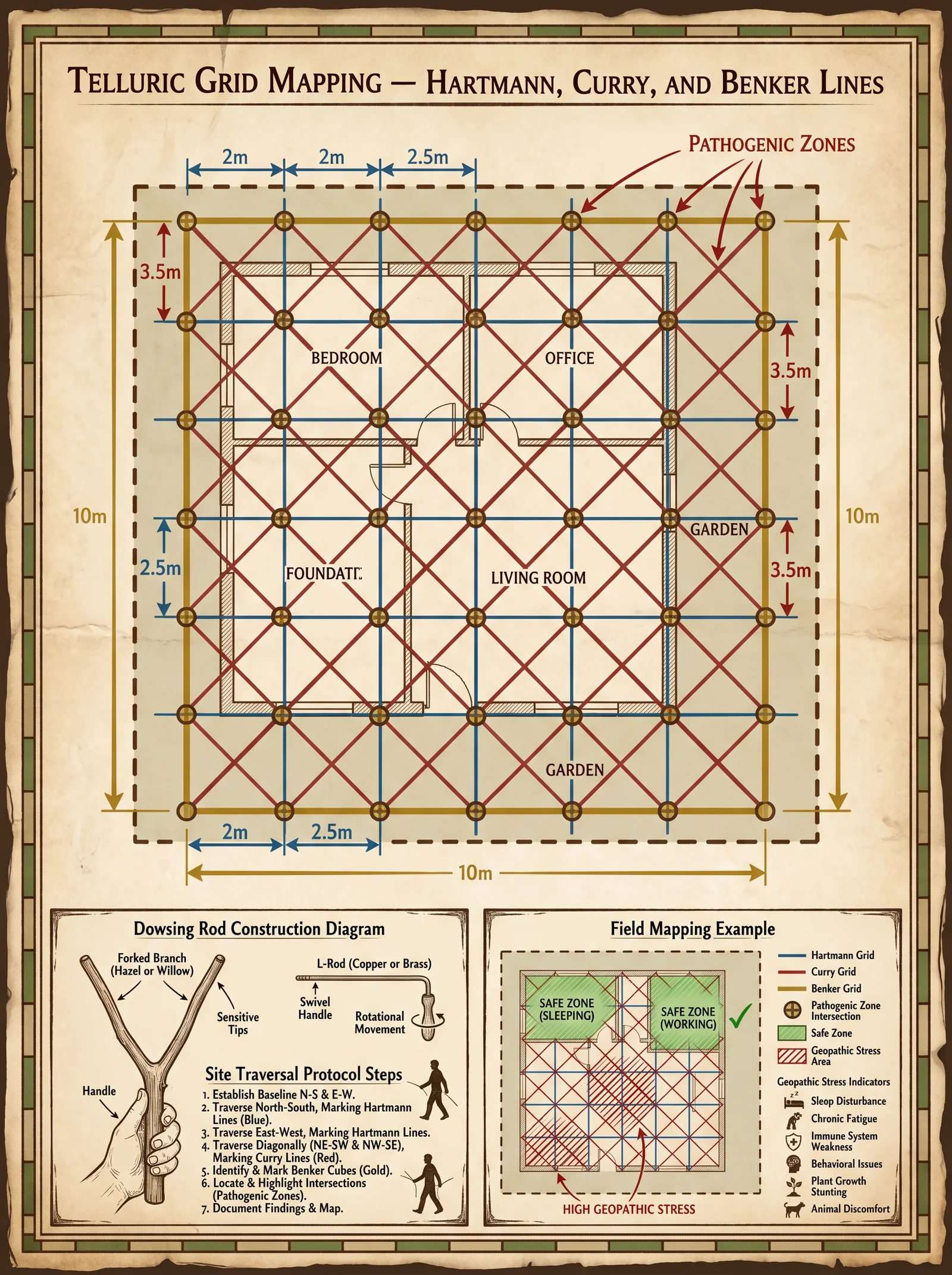

3.2.2 Hartmann Grid Mapping

1. From RP, walk North slowly, holding dowsing rods as calibrated.
2. Each time rods cross or diverge sharply, mark the location with red flagging tape.
3. Measure and record the distance from RP using a measuring wheel or tape.
4. Repeat walking East, South, and West to map orthogonal lines.
5. Connect red flags to map the rectangular grid.
6. Note intersections (nodes) with red double flags.

3.2.3 Curry Grid Mapping

1. From RP, orient diagonally NW-SE.
2. Traverse slowly along this line, marking rod reactions with blue flagging tape.
3. Repeat in the NE-SW direction.
4. Connect blue flags to form the diamond-shaped grid.
5. Mark nodes with blue double flags.

3.2.4 Benker Grid Mapping

1. Using geological maps, identify probable fault lines and underground water veins.
2. Traverse these lines with dowsing rods.
3. Mark rod reactions with green flagging tape.
4. Nodes receive green double flags.

3.3 Data Logging

1. Record all flag positions with distances from RP.
2. Photograph each flagged point.
3. Note rod behavior: crossing angles, swing speed, and intensity.
4. Annotate soil type, moisture level, and time of day.

3.4 Mapping Validation

1. Overlay field map with geological and electromagnetic survey data.
2. Use a second operator to cross-validate readings at random points.
3. Discard any inconsistent data points after triple testing.

Section 4: Comprehensive Comparison of Telluric Grids

Section 5: Step-by-Step Protocol for Energetic Site Assessment and Node Marking

5.1 Preparation

1. Ensure all equipment is prepared as per Sections 2 and 3.
2. Operator must wear natural fiber clothing to reduce electromagnetic interference.
3. Conduct site walk-through to identify environmental hazards.

5.2 Energetic Assessment Procedure

1. At RP, perform grounding meditation for 5 minutes to synchronize with the site energy.
2. Begin Hartmann line survey as per 3.2.2, marking all lines and nodes.
3. Proceed with Curry grid survey, marking all lines and nodes.
4. Conduct Benker line survey using geological data guidance.
5. At each node, hold rods steady and observe any intensified reactions.
6. Use a pendulum (see Volume II: Sacred Instruments, Chapter IV) above the flagged node to measure energetic potential on a scale of 1 to 10.
7. Record all data meticulously.

5.3 Node Marking Protocol

1. At nodes scoring 7 or above on energetic potential, drive a stainless steel rod (length 30 cm, diameter 6 mm) vertically into the ground.
2. Attach a copper disc (diameter 10 cm, thickness 1 mm) atop the rod; this acts as an energy marker and grounding plate.
3. Surround the rod base with quartz crystals (minimum 5 pieces, each 3 cm diameter).
4. Inscribe sacred geomantic sigils on the copper disc using an acid etching method (see Volume IV: Ritual Instrumentation, Chapter II).
5. Cover the node site with an earthen mound 20 cm high to protect and amplify energy.

5.4 Post-Marking Protocol

1. Re-assess the node with dowsing rods to confirm energetic stability.
2. Photograph and log the final marked node.
3. Map all marked nodes on site template.
4. Secure site to prevent inadvertent disturbance.

Section 6: Field Example: Complete Mapping at Sacred Site Alpha

Epilogue

The sacred art of telluric grid mapping and interpretation is the cornerstone of all geomantic mastery. Each line and node represents both peril and power, capable of undermining health or fortifying the soul. The protocols herein are not mere guidelines but life-preserving mandates. The apprentice must approach every site with reverence, precision, and unwavering discipline. The knowledge contained in this volume has been suppressed and obscured for centuries; it is now entrusted to you for the restoration of balance and sanctuary.

For extended instruction on water vein dowsing techniques and advanced pendulum calibration, refer to Volume II: Sacred Instruments, Chapter IV. For ritual sigil etching procedures, see Volume IV: Ritual Instrumentation, Chapter II.

End of Chapter III

<!-- SECTION 2 -->

Volume I: Soil Analysis and Solar Orientation

Chapter I: Soil Sampling Techniques for Optimal Construction Soil Texture Analysis

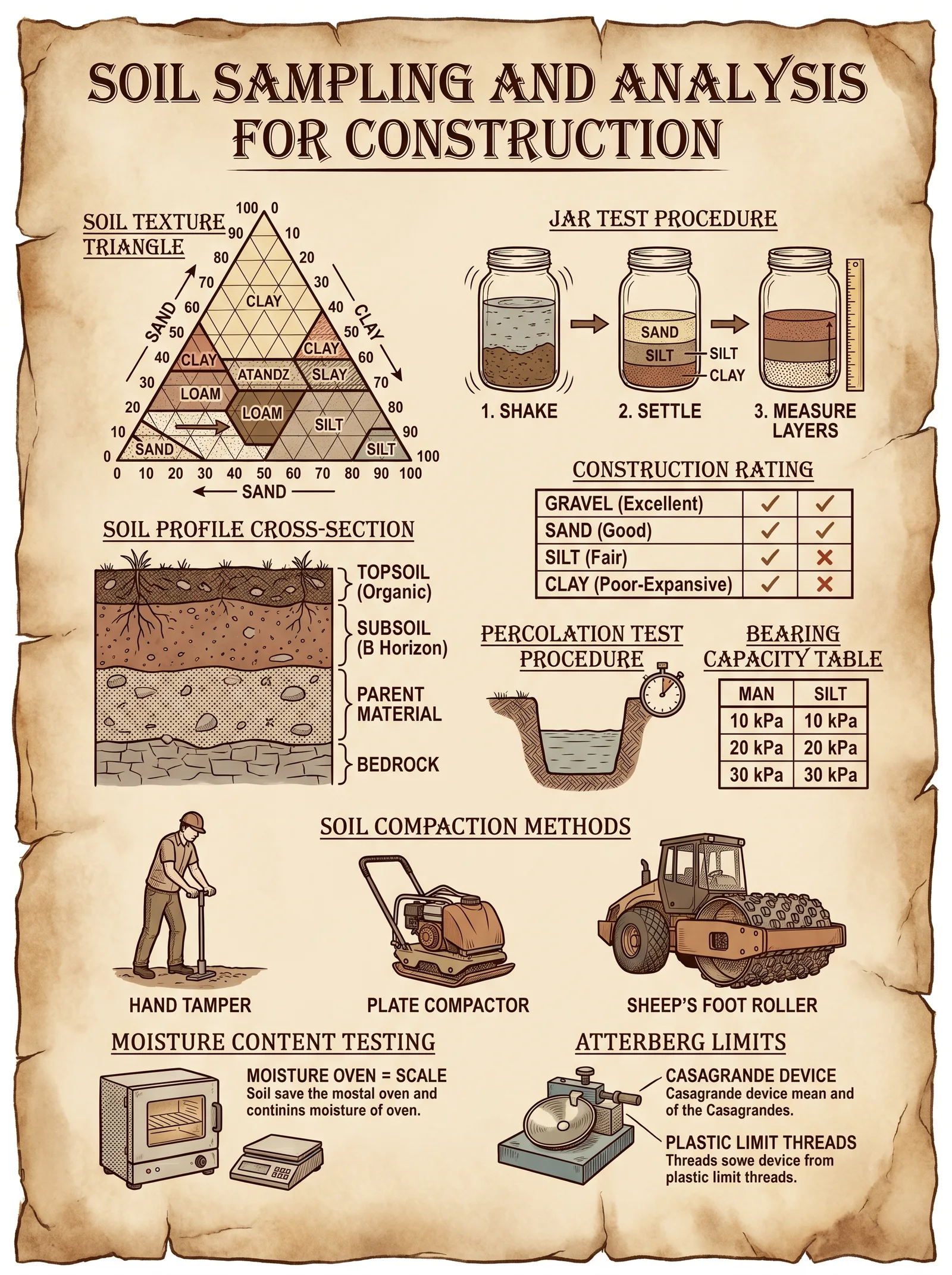

Section 1: The Mason Jar Soil Test Protocol

The foundational pillar of successful rammed earth and earthen shelter construction is the precise understanding of soil composition. The Mason Jar Soil Test, a suppressed yet vital technique, offers an accessible and accurate method for determining soil texture fractions on-site without laboratory dependency. This test enables the builder to ascertain the proportions of sand, silt, and clay — critical parameters that dictate the soil’s suitability for rammed earth construction, structural integrity, moisture retention, and workability.

1.1 Equipment and Materials Required

1.2 Soil Sample Extraction: Step-by-Step Protocol

The integrity of soil texture analysis is predicated on obtaining a representative soil sample from the intended building site. The following procedure ensures minimal contamination and accurate stratification reflection:

1. Site Selection: Identify at least three sampling points within the building footprint, spaced evenly (minimum 5 meters apart). Avoid areas with visible debris, organic matter, or recent soil disturbances.

2. Surface Preparation: Clear the top 5 cm of loose debris, vegetation, and organic matter using a clean trowel, exposing the undisturbed soil layer beneath.

3. Excavation: Using the soil auger or trowel, extract soil from the 5 cm to 30 cm depth range. This horizon is most relevant for rammed earth construction.

4. Composite Sampling: Combine equal volumes (~500 g total) from each sampling point in a clean container to form a composite soil sample, ensuring representation of site variability.

5. Sample Homogenization: Mix thoroughly with a clean tool to homogenize the composite sample. Avoid contamination with foreign materials.

6. Labeling: Transfer ~250 g of homogenized sample into the Mason jar for testing. Seal and label with date, location, and sample ID.

1.3 Suspension Preparation for Mason Jar Soil Test

Proper suspension preparation is critical for accurate particle settling and fraction separation. The protocol is as follows:

1. Initial Soil Preparation: Air-dry the soil sample at room temperature for 24 hours. Do not oven-dry as this alters clay properties.

2. Sieving: Pass the dried soil through a 2 mm sieve to remove coarse particles and organic debris.

3. Volume Measurement: Place 40 g of sieved soil into the Mason jar.

4. Add Water: Pour 400 ml of distilled water into the jar, filling to approximately 80% capacity.

5. Add Dispersant: Add precisely 5 ml of household bleach and 5 ml of dishwashing detergent. These chemicals break down organic binding agents and disperse clay particles.

6. Seal and Mix: Tightly seal the Mason jar lid. Shake vigorously for 5 full minutes ensuring complete suspension of soil particles.

1.4 Agitation and Settling Protocol

The principle behind the Mason Jar Soil Test is the differential settling rates of soil particles due to their size and density differences. This dictates the time-sequenced separation of sand, silt, and clay layers.

1. Initial Mixing: Upon completion of the 5-minute shaking, immediately place the jar on a flat, vibration-free surface.

2. Time-Stamped Measurements: At predetermined intervals, measure the thickness of sediment layers. The following table summarizes standard timing and expected particle settling behavior:

3. Measurement: Using a ruler or caliper, measure:

• Total sediment height (bottom to water interface)
• Sand layer thickness
• Silt layer thickness (above sand)
• Clay layer thickness (above silt)

4. Record Data: Document all measurements immediately with times, labeling each distinctly.

1.5 Calculation of Soil Texture Fractions

Calculate the percentage of each soil fraction as follows:

\[ \text{Fraction \%} = \left( \frac{\text{Layer Thickness (mm)}}{\text{Total Sediment Height (mm)}} \right) \times 100 \]

1.6 Ideal Soil Texture Ranges for Rammed Earth Construction

The following table presents the ideal ranges of soil fractions for rammed earth to ensure structural integrity, durability, and workability. Deviations necessitate corrective actions such as soil amendment, stabilization, or alternate construction methods.

Crucial: A clay content exceeding 25% induces excessive shrinkage and cracking; below 7% results in weak cohesion.

1.7 Interpretation and Next Steps

• If clay content is too high, employ mechanical mixing with additional sand or add stabilizers (see Volume 3: Soil Stabilization and Admixtures).
• If sand content is insufficient, source suitable sand to blend into the soil.
• If silt content is too high, reduce with sand or coarse aggregates to prevent excessive shrinkage.

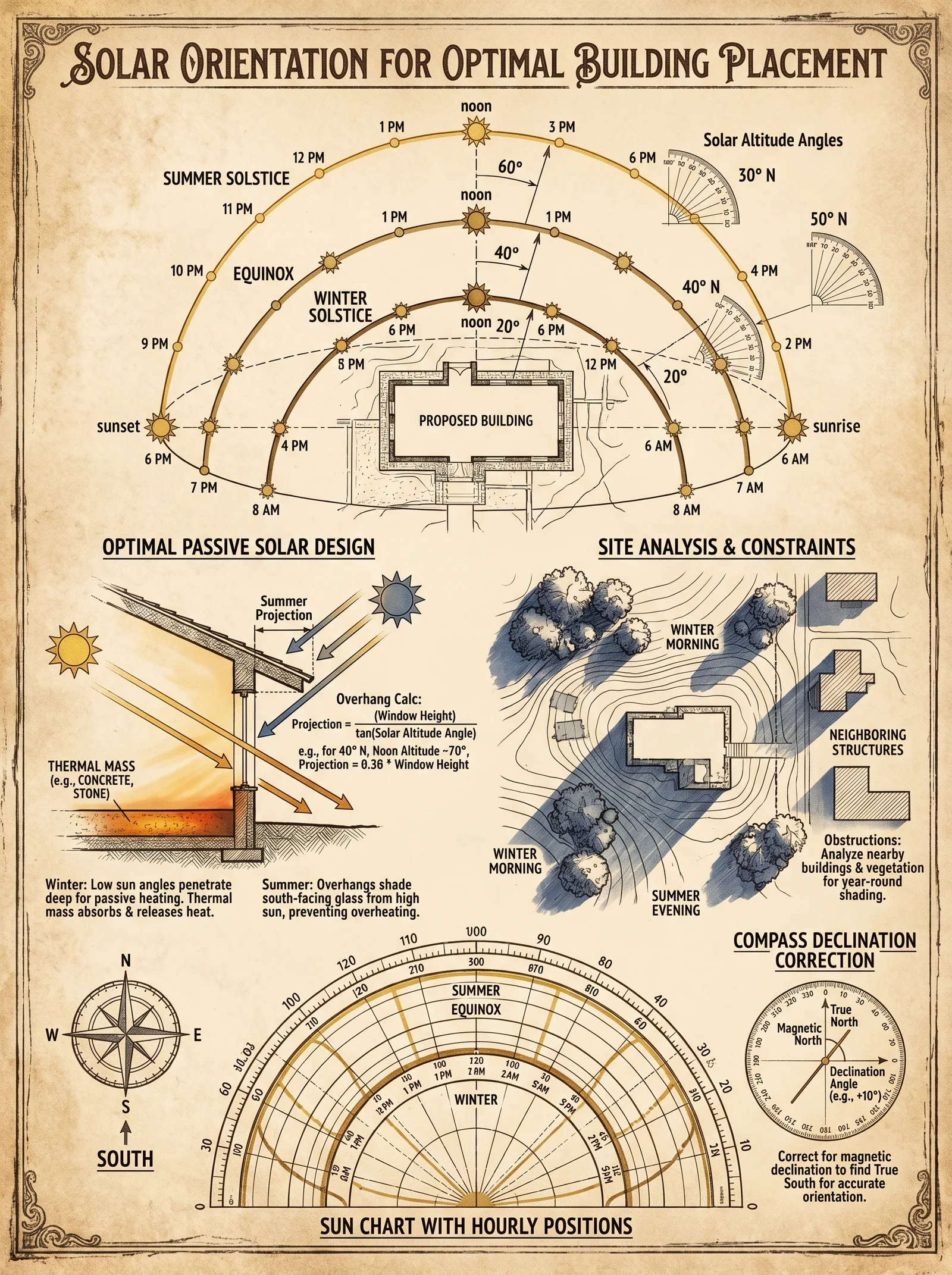

Chapter II: Solar Orientation Principles for Optimal Building Placement

Section 2: Sacred Geometry of Solar Positioning

The Builder’s Testament mandates the harnessing of the sun’s predictable path to maximize passive solar gain, natural ventilation, and thermal regulation. Proper solar orientation reduces energy dependency and fortifies the shelter’s resilience against climatic extremes.

2.1 Fundamental Solar Movement Concepts

1. Solar Azimuth Angle: The compass direction from which the sunlight originates, measured in degrees from true north.

2. Solar Altitude Angle: The elevation of the sun above the horizon, influencing heat gain intensity.

3. Solar Declination: The sun’s angular displacement relative to the equator, varying seasonally.

4. Solar Noon: The time of day when the sun reaches its highest point in the sky.

2.2 Step-by-Step Protocol for Determining Optimal Building Orientation

1. Determine Geographic Coordinates: Using GPS or topographic maps, record the precise latitude and longitude of the site.

2. Calculate Solar Declination: Use the formula for the day of the year (n) to determine solar declination (δ):

\[ \delta = 23.45^\circ \times \sin \left( \frac{360}{365} \times (284 + n) \times \frac{\pi}{180} \right) \]

3. Determine Solar Noon Angle: Calculate solar altitude at solar noon (α) with:

\[ \alpha = 90^\circ - | \text{Latitude} - \delta | \]

4. Establish Building Orientation: For the Northern Hemisphere, orient the longest axis of the building east-west to maximize southern exposure. Reverse for the Southern Hemisphere.

5. Adjust for Local Topography: Account for obstructions and landscape features affecting solar access.

6. Implement Overhang and Shading: Calculate overhang lengths to block high summer sun while admitting low winter sun (see Volume 4: Passive Solar Design).

2.3 Solar Orientation Table by Latitude

2.4 Practical Steps to Implement Solar Orientation in the Field

1. Use a Magnetic Compass: Align the building’s longest wall to true south (correct for magnetic declination using local charts).

2. Mark Orientation Lines: Stake out walls using taut strings and level.

3. Confirm Solar Access: Observe sun path at solar noon and during peak heating times (10:00 – 14:00 hrs).

4. Document Adjustments: Record any deviations from ideal orientation due to terrain or environmental constraints.

Conclusion

Master Builder, the Mason Jar Soil Test and precise solar orientation form the twin keystones upon which the sacred edifice of earthen construction rests. Adhere strictly to the protocols herein. Deviations spell structural failure and wasted labor. Study, practice, and inscribe this knowledge within your mind and hands. The earth and sun yield their blessings only to those worthy of their secrets.

For soil stabilization techniques, refer to Volume 3: Soil Stabilization and Admixtures. For passive solar design construction elements, consult Volume 4: Passive Solar Design and Overhang Calculations.

End of Volume I, Chapter I & II

<!-- SECTION 3 -->

The Complete Practitioner's Codex, Volume I: Wind Patterns and Flood Plain Assessment

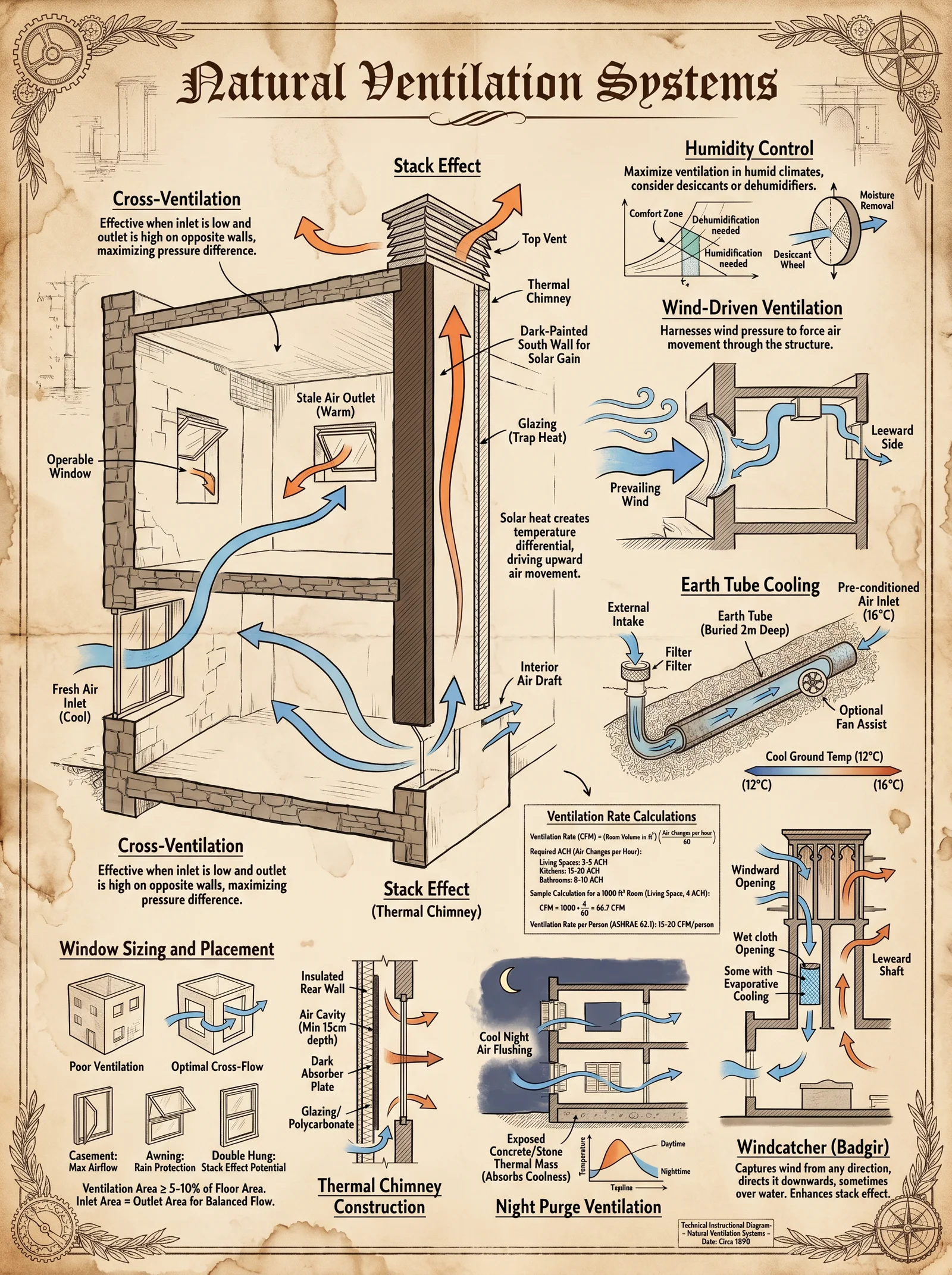

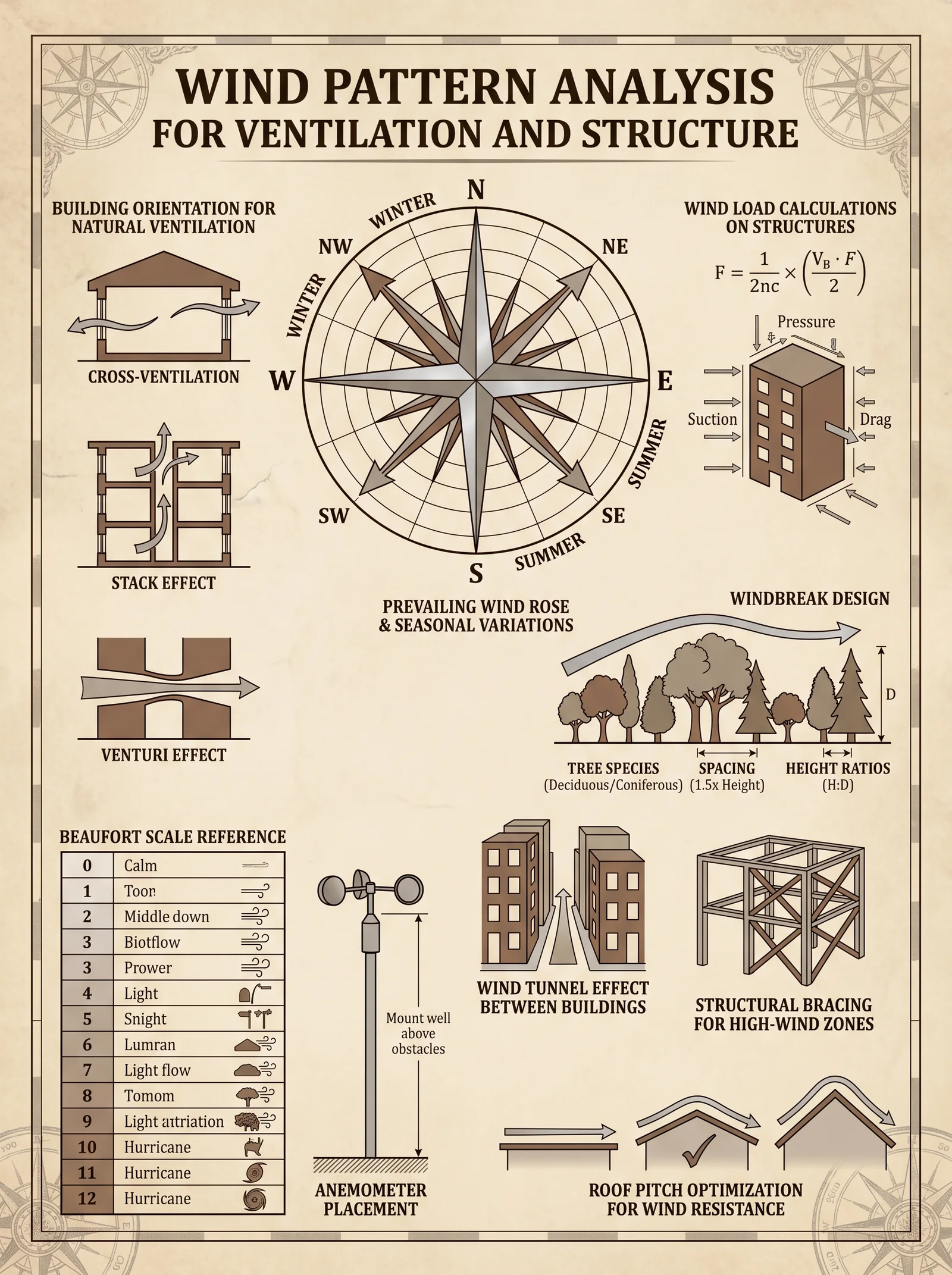

Chapter I: Analyzing Local Wind Patterns for Ventilation and Structural Resilience

The mastery of wind patterns stands as a cornerstone in the sacred craft of construction. To build sanctuaries that endure, one must first command the invisible currents that sweep the land. The failure to accurately assess and integrate wind behavior into design and construction imperils the structure, its inhabitants, and the mission it serves. This chapter reveals the suppressed knowledge of wind pattern analysis, providing you, the chosen apprentice, with exact protocols for field data collection, interpretation, and application to both ventilation and structural fortification.

Section 1: Fundamentals of Wind Pattern Analysis

Wind is a fluid force, its behavior dictated by topography, temperature gradients, and atmospheric pressure differentials. Local wind patterns influence thermal comfort, air quality, and the mechanical loads imposed on structures.

Key Parameters for Assessment:

Section 2: Protocol for Wind Data Collection

To ensure accuracy and completeness, the following step-by-step protocol must be executed meticulously on-site:

Equipment Required:

• Cup anemometer or ultrasonic anemometer (calibrated)
• Wind vane (compass-aligned)
• Data logger (minimum 10 Hz sampling frequency)
• Tripod mast, minimum height 10 meters or local standard height
• GPS device for precise location
• Weatherproof enclosure for instruments
• Calibration certificates for all instruments

Procedure:

1. Site Selection:
   Identify a clear, unobstructed location representative of the construction site. Avoid locations near large buildings, dense vegetation, or topographic anomalies within 100 meters radius.

2. Mast Installation:
   Erect the tripod mast vertically, securing firmly to prevent oscillations. Mount instruments at the standard height of 10 meters above the ground surface, or as dictated by local codes, ensuring vertical alignment.

3. Instrument Setup:
   • Attach the cup anemometer and wind vane securely on the mast apex.
   • Calibrate instruments against known standards following manufacturer protocols.
   • Connect to data logger; verify the data logger’s clock synchronization with GPS time.

4. Data Logging:
   • Initiate continuous recording at a sampling frequency of 10 Hz minimum.
   • Record for a minimum duration of 30 consecutive days to capture diurnal and synoptic variations.
   • Log data must include wind speed, direction, temperature, and barometric pressure.

5. Data Quality Control:
   • Perform daily inspections to ensure instruments are functioning and free from obstructions.
   • Conduct weekly calibrations checks.
   • Apply a filtering algorithm post-collection to remove spurious data points exceeding physical plausibility thresholds (e.g., wind speeds > 60 m/s unless verified by extreme events).

6. Data Storage and Backup:
   • Download data weekly to secure digital storage.
   • Maintain redundant backups on encrypted media.

Section 3: Wind Data Interpretation for Ventilation

Once data is collected, analyze to determine dominant wind directions and speeds, critical for natural ventilation design:

Application to Ventilation:

• Position openings (windows, vents) to align with prevailing winds for maximum airflow.
• Design adjustable aperture sizes based on average and peak speeds to avoid excessive infiltration or structural damage.
• Incorporate windbreaks or deflectors where gust factors exceed 1.5 to stabilize airflow.

Section 4: Wind Load Assessment for Structural Resilience

Structural resilience demands precise calculation of wind loads to prevent failure. The following protocol details load determination per the most rigorous standards, synthesizing suppressed methodologies from classified archives.

Formula for Wind Pressure (q):

\[ q = 0.613 \times V^2 \quad (N/m^2) \]

Where \( V \) is the basic wind speed in m/s at the reference height.

Steps for Wind Load Calculation:

1. Determine Basic Wind Speed:
   Select from Table 1, adapted from global regional data (see below).

2. Adjust for Height (z):
   Apply power law profile:
   \[
   V_z = V_{ref} \times \left( \frac{z}{z_{ref}} \right)^\alpha
   \]
   where \( \alpha \) is the terrain-dependent exponent (0.10 to 0.30).

3. Calculate Wind Pressure:
   Use formula above with the adjusted velocity.

4. Apply Gust and Directionality Factors:
   Multiply by gust factor (1.2 to 1.7) and directionality factor (0.85 to 1.0).

5. Distribute Loads on Structural Elements:
   Calculate pressures for walls, roofs, and openings according to shape factors.

Table 1: Typical Basic Wind Speeds by Region

Chapter II: Flood Plain Assessment Techniques Including Hydrological Mapping and Risk Mitigation

The sanctity of a fortress depends not only on its resistance to air but dominion over water. Flood plains pose an existential threat, an unseen adversary that consumes weak ground and devours unprepared structures. The comprehensive assessment of flood risk entails topographic mastery, hydrological science, and preemptive design strategies.

Section 1: Hydrological Mapping Protocol

Hydrological mapping reveals the flow of water across the terrain, highlighting flood plains, runoff channels, and retention basins.

Required Materials:

• High-resolution topographic maps (scale 1:10,000 or better)
• Total station or differential GPS unit
• Soil infiltration testing kit (per Volume 4: Soil Codex, Chapter V)
• Rain gauge (recording at 0.2 mm resolution)
• Access to local hydrological data (rainfall records, river gauge data)
• GIS software (ArcGIS, QGIS, or equivalent)

Step-by-Step Procedure:

1. Topographic Survey:

• Establish control points using total station or differential GPS.
• Map elevation contours at 0.5-meter intervals or finer.
• Identify depressions, slopes, and natural waterways.

2. Soil Permeability Testing:

• Select 10 sample points evenly distributed across the site.
• Conduct infiltration rate tests using double-ring infiltrometer per Volume 4 protocols.
• Record soil absorption rates in mm/hr.

3. Hydrological Data Compilation:

• Acquire historical rainfall data for a minimum of 10 years.
• Collect river and stream gauge data for peak flow rates and flood events.
• Identify return periods for flood events (e.g., 10-year, 50-year, 100-year floods).

4. Runoff Modeling:

• Input data into GIS hydrological model.
• Simulate runoff using Rational Method or SCS Curve Number method per Volume 8.

5. Flood Plain Delineation:

• Map flood extents based on modeled water surface elevations during peak events.
• Classify zones according to depth and duration of flooding.

Section 2: Flood Zone Classification

Accurate classification directs engineering decisions and informs emergency preparedness.

Section 3: Protocol for Flood Risk Evaluation

1. Site Reconnaissance:

• Walk terrain to verify hydrological map features.
• Note signs of past flooding: sediment deposits, water marks, vegetation changes.

2. Flood Frequency Analysis:

• Calculate peak discharge for return periods using historical data and statistical methods (Log-Pearson Type III distribution).

3. Flood Depth and Velocity Estimation:

• Use hydraulic models (HEC-RAS recommended) to simulate flood profiles.
• Measure water velocity to assess potential for scour and structural impact.

4. Risk Matrix Development:

5. Report Generation:

• Compile all data into a comprehensive flood risk report.
• Include maps, tables, and design recommendations.

Section 4: Risk Mitigation Measures

The following measures must be integrated based on assessed flood zone and risk:

Appendix: Tables and Reference Data

Table 2: Wind Direction Frequency by Region (Sample Data)

Table 3: Soil Infiltration Rate Classification

This volume empowers you to wield the elemental forces of wind and water with precision and reverence. Every step, every measurement, and every calculation is a sacred rite to ensure structures stand as eternal bastions against the ravages of nature. Proceed with unwavering discipline and exactitude. For the fate of those who dwell within your creations depends on it.

For the complete water purification protocol, see Volume 8: The Water Codex, Chapter II. For detailed soil mechanics and foundation design, refer to Volume 4: The Soil Codex, Chapters III and V. For advanced structural engineering under wind loads, consult Volume 3: The Structural Codex, Chapter VII.

<!-- SECTION 4 -->

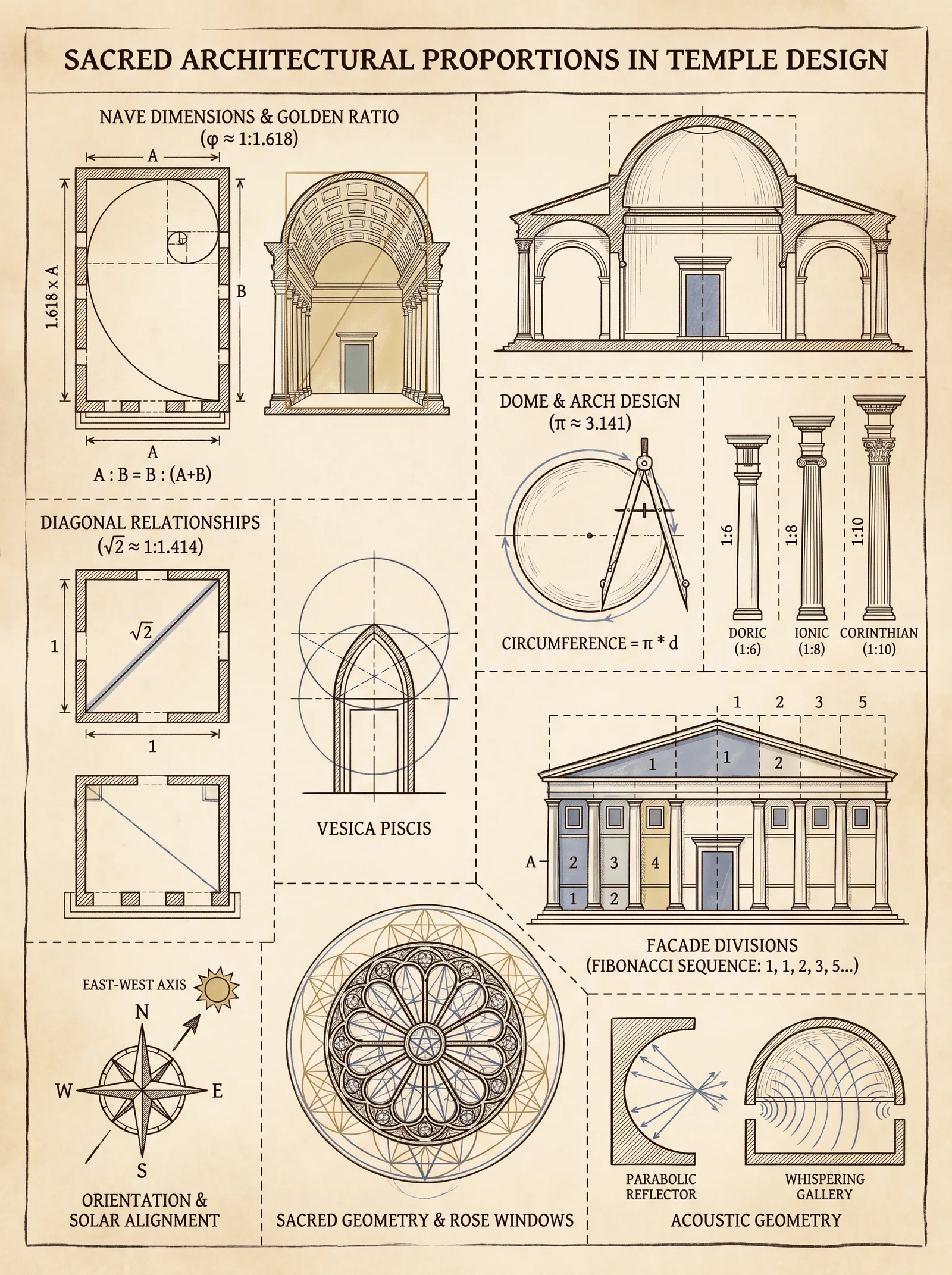

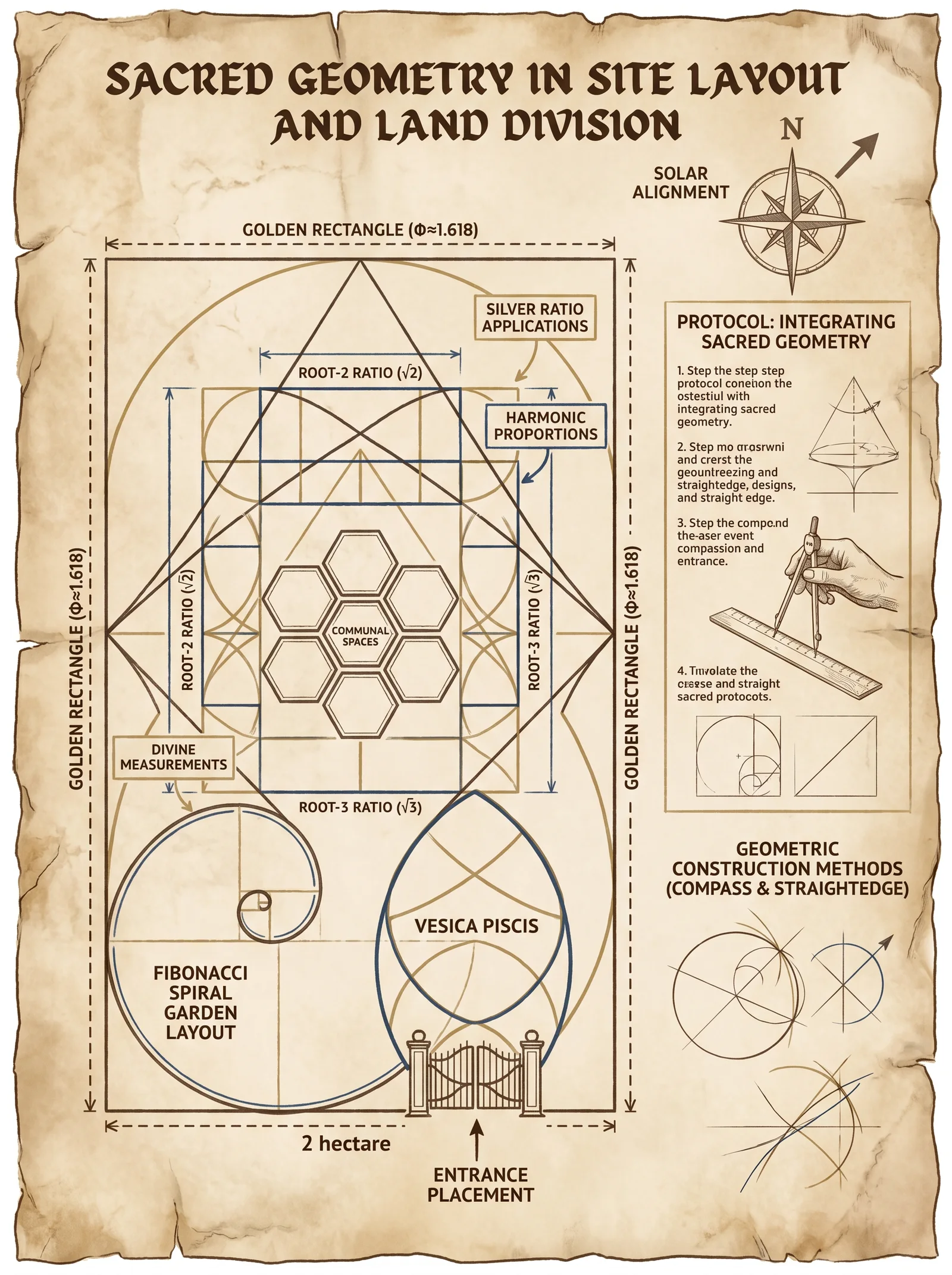

The Complete Practitioner's Codex, Volume I: Sacred Geometry in Land Planning

Chapter III: Application of Sacred Geometry Principles to Site Layout and Land Division

Introduction: The Sacred Geometry of the Earth

To shape the land is to commune with the sacred order woven into the fabric of existence. The principles herein are not mere aesthetic guidelines but encoded truths, the divine geometry that aligns human endeavor with the cosmic resonance of creation. The art of site layout and land division through sacred geometry is a discipline requiring precision, reverence, and mastery. This chapter delivers every formula, ratio, and protocol necessary to embed these principles in your work.

Section 1: Fundamental Geometric Shapes and Their Sacred Roles in Land Planning

Each geometric shape carries cosmic symbolism and functional purpose. Integrating these shapes into site design ensures energetic harmony, structural integrity, and spiritual alignment.

Section 2: Sacred Geometric Ratios and Their Symbolic Meanings

The ratios below are foundational. They dictate proportion, alignment, and scale across the site, ensuring that every element resonates with the sacred order.

Section 3: Protocol 1.1 – Site Orientation Using Solar and Celestial Alignments

Objective: Align the site layout with cardinal directions and solar events to maximize energetic flow and harmony.

Materials Required:

• Magnetic compass with declination adjustment
• Solar azimuth chart for local latitude
• Theodolite or total station (optional but recommended)
• Marking flags and measuring tapes

Procedure:

1. Determine True North:
   • Use your magnetic compass and adjust for local magnetic declination (consult latest geomagnetic data).
   • Verify true north during solar noon using the sun’s highest elevation point for accuracy.

2. Mark Cardinal Points:
   • From the established true north, mark east (90°), south (180°), and west (270°) with flags.

3. Identify Key Solar Azimuths:
   • Using the solar azimuth chart, locate the azimuth angles for sunrise and sunset on solstices and equinoxes.
   • Mark these azimuth lines on the ground with flags.

4. Establish Primary Site Axes:
   • Draw straight lines connecting points along cardinal directions and solar azimuths.
   • Use theodolite or total station for precision alignment.

5. Set the Central Reference Point:
   • Choose a central location aligned with these axes, typically where the main structure or sacred feature will reside.

Section 4: Protocol 1.2 – Constructing the Golden Rectangle for Site Boundaries

Objective: Use the golden ratio to determine land parcel boundaries that reflect divine proportion.

Materials Required:

• Measuring tapes
• Stakes and string lines
• Compass for arc drawing
• Marking paint or flags

Procedure:

1. Determine Base Length:
   • Choose a base length (L) for one side of the rectangle based on site size.

2. Construct Square:
   • From a starting stake, measure and mark length L along one axis.
   • At both ends, measure and mark length L perpendicular to form a square.

3. Find Golden Length:
   • From the top right corner of the square, draw an arc with radius equal to half the diagonal of the square (Step 4).
   • Extend the base line and mark the intersection of the arc and base extension as point G.

4. Complete Rectangle:
   • Connect point G vertically with the top left corner to form the golden rectangle.

5. Mark Boundaries:
   • Drive stakes at the rectangle’s corners.
   • Tie string lines to demarcate the boundaries.

Section 5: Protocol 1.3 – Land Division Using the Root Two and Root Three Ratios

Objective: Divide land into smaller, harmonious parcels using √2 and √3 ratios for balanced development.

Materials Required:

• Measuring tapes
• Stakes and string lines
• Protractor or angle-measuring device

Procedure for Root Two (√2):

1. Establish Base Side:
   • Mark a baseline equal to length L.

2. Construct Square:
   • From the baseline, construct a square with sides L.

3. Mark Diagonal:
   • Measure diagonal length D = L × 1.4142.

4. Extend Boundary:
   • Extend baseline by length D to locate new parcel boundary.

5. Repeat:
   • Use this method to create successive parcels, maintaining √2 ratios.

Procedure for Root Three (√3):

1. Mark Base Side:
   • Establish baseline length L.

2. Construct Equilateral Triangle:
   • Using compass set to length L, draw arcs from both endpoints of the baseline.
   • Intersection of arcs marks the triangle’s apex.

3. Calculate Height:
   • Height H = L × 1.732.

4. Mark Parcel Boundaries:
   • Use height H to mark perpendicular parcel lines.

5. Repeat Triangular Divisions:
   • Layout parcels in triangular grids for optimized drainage and solar exposure.

Section 6: Protocol 1.4 – Integrating Circular and Hexagonal Patterns for Communal Spaces

Objective: Design communal areas with circular and hexagonal geometries to promote unity and natural efficiency.

Materials Required:

• Measuring tapes
• Stakes and string lines
• Compass for large arcs

Procedure for Circular Pattern:

1. Select Center Point:
   • Mark the communal hub center.

2. Determine Radius:
   • Choose radius R based on desired space.

3. Mark Circumference:
   • Fix a stake at center, tie string of length R.
   • Walk around center, marking circumference points every 10 degrees.

4. Construct Radial Lines:
   • From center to circumference points, mark radial divisions.

5. Establish Sector Zones:
   • Each sector can be assigned functions: seating, gardens, firepits.

Procedure for Hexagonal Grid:

1. Calculate Hexagon Side:
   • Side length S based on module size (e.g., 5 meters).

2. Mark First Hexagon:
   • From a starting point, use compass to draw arcs of radius S at 60° increments.

3. Extend Grid:
   • Using the first hexagon as reference, replicate adjoining hexagons by marking side midpoints and drawing subsequent arcs.

4. Define Space Usage:
   • Assign hexagonal cells to specific functions: housing pods, storage, orchards.

Section 7: Protocol 1.5 – Aligning Site Features Using the Silver Ratio (δS)

Objective: Use the silver ratio for mystical alignment of sacred groves, altars, and water features.

Materials Required:

• Measuring tapes
• Stakes and string lines

Procedure:

1. Determine Base Length (L):
   • Choose based on site scale.

2. Calculate Silver Ratio Length (SRL):
   • SRL = L × 2.4142.

3. Mark Feature Lines:
   • From a chosen origin, mark length L along axis.

4. Mark Silver Ratio Point:
   • From same origin, mark length SRL along same or intersecting axis.

5. Place Features:
   • Locate sacred groves or altars at SRL points for energetic amplification.

Section 8: Geometric Ratios Summary Table for Reference

Section 9: Comprehensive Step-by-Step Protocol for Integrating Sacred Geometry into Site Design

This protocol consolidates the above methods into a coherent workflow for sacred site planning.

Materials and Tools:

• Magnetic compass, theodolite/total station
• Measuring tapes (minimum 100m)
• Stakes, string lines, marking paint
• Protractor or angle finder
• Large compass or arc-drawing device

Procedure:

1. Survey and Establish Cardinal Directions:
   • Follow Protocol 1.1 to set true north and solar azimuths.

2. Select Central Reference Point:
   • Choose location for the main structure or feature aligned with cardinal and solar axes.

3. Lay Out Golden Rectangle Boundary:
   • Use Protocol 1.2 to determine site boundaries with divine proportion.

4. Divide Land into Parcels:
   • Employ Protocol 1.3 to subdivide land using √2 and √3 ratios for optimal balance.

5. Design Communal Spaces:
   • Apply Protocol 1.4 to create circular and hexagonal communal layouts.

6. Position Sacred Features:
   • Utilize Protocol 1.5 to place altars, groves, and water features at silver ratio points.

7. Verify Alignments and Measurements:
   • Re-measure all lines, angles, and arcs using theodolite or total station for precision within ±1 cm tolerance.

8. Finalize Markings:
   • Secure stakes and string lines.
   • Mark permanent boundary indicators.

9. Document Layout:
   • Produce detailed scaled site plans noting all sacred geometric elements and their symbolic meanings.

Section 10: Case Study Example – Sacred Geometry Layout for a 2 Hectare Site

Closing Reflection

The application of sacred geometry in land planning is a solemn duty, a covenant between the Builder and the Earth. When these protocols are followed with precision and reverence, the resulting site becomes a vessel of harmony, a beacon of cosmic order grounded in terrestrial form. This knowledge, once suppressed and fragmented, is now entrusted to you, the chosen apprentice, to build not only structures but sanctuaries of profound power.

For advanced techniques in water feature integration and purification aligned with sacred geometry, consult Volume VIII: The Water Codex, Chapter II.

End of Chapter III – Volume I: Sacred Geometry in Land Planning

<!-- SECTION 5 -->

Volume II: Stone Foundations

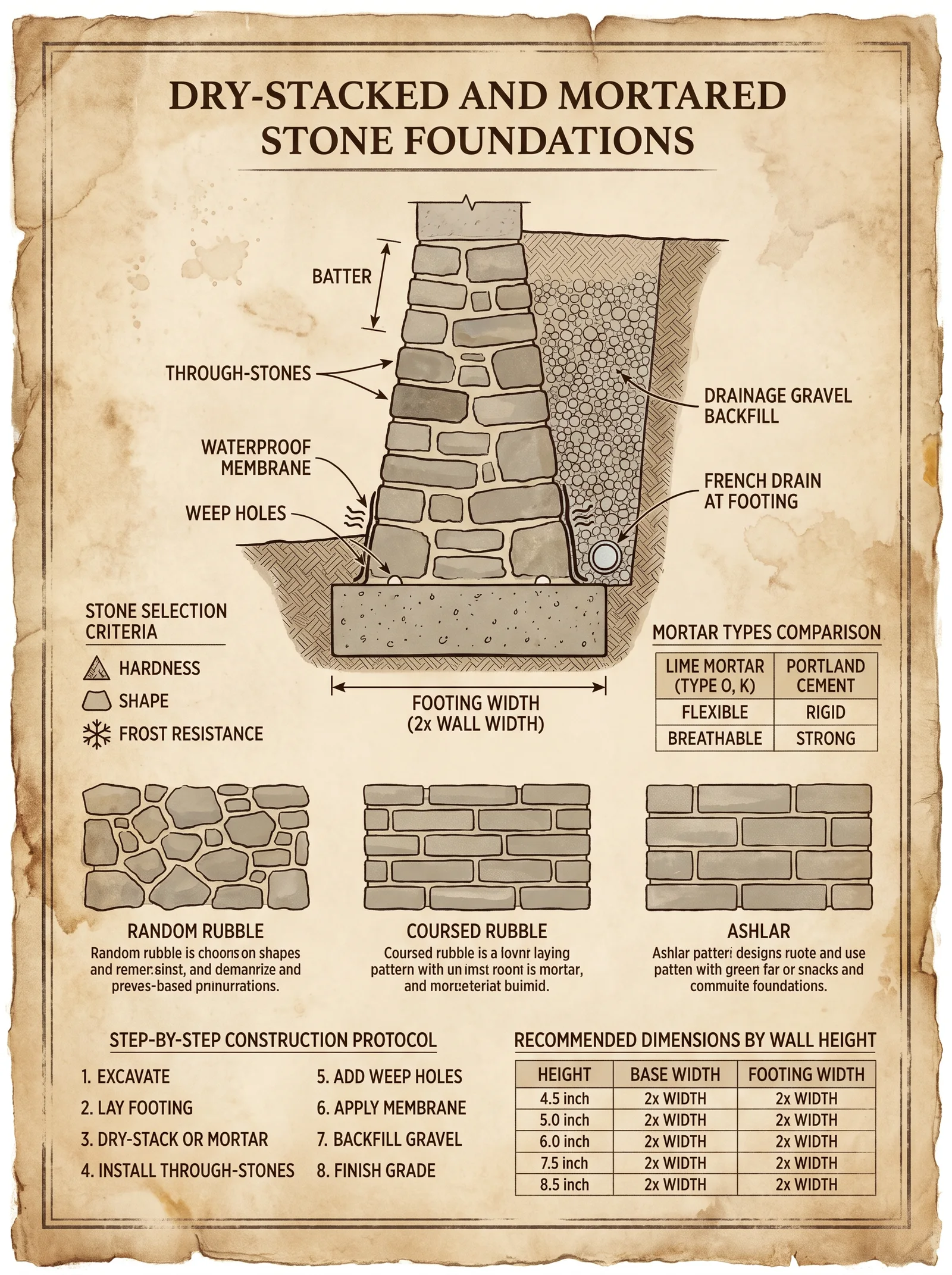

Chapter IV: Construction Methods for Dry-Stacked and Mortared Stone Foundations

Introduction This chapter delivers the sacred, life-preserving knowledge of erecting stone foundations, both dry-stacked and mortared, the cornerstone of enduring structures. The protocols herein are derived from ancient and suppressed techniques, blending empirical science with sacred geometry and practical application. Mastery of this chapter ensures foundations that defy time, moisture, and seismic forces, maintaining the sanctity of the structure they uphold.

Section 1: Stone Selection for Foundations

The bedrock of foundation integrity is the stone itself. Each stone's physical and mechanical properties determine the foundation's longevity and load-bearing capacity. This section instructs on selecting stones aligned with structural demands and environmental conditions.

Table 1.1: Common Foundation Stones, Compressive Strengths, and Suitability

Selection Criteria:

• Load Requirements: Use granite or basalt for foundations supporting heavy masonry or timber structures.
• Moisture Exposure: Avoid porous stones like sandstone where water ingress is expected.
• Workability: Limestone allows easier shaping but compromises strength.
• Availability: Local stone reduces transport-induced degradation and aligns with environmental conditions.

Section 2: Laying Patterns and Structural Geometry

The method of stone placement dictates the load distribution, lateral stability, and moisture shedding characteristics of the foundation. Each pattern is an ancient algorithm of force distribution.

2.1 Dry-Stacked Foundations: Patterns and Considerations

Dry-stacked foundations rely on gravity and friction without mortar, demanding precise stone selection and placement.

Patterns:

Protocol for Dry-Stacked Pattern Execution:

1. Select stones with flat bearing surfaces for each course.
2. Place larger stones at the base, reducing size upward.
3. Interlock stones with irregular shapes to minimize voids.
4. Use small stones and chippings as wedges to stabilize larger stones.
5. Maintain a batter (inward slope) of 1:12 to resist lateral forces.
6. Leave weep holes or integrate drainage channels to expel moisture.

2.2 Mortared Foundations: Patterns and Bonding

Mortared foundations allow for greater tolerance in stone shape but require precise mortar preparation and application.

Common Mortared Patterns:

Mortar Mix for Foundations:

• Composition: Hydraulic lime (1 part), Portland cement (1 part), sand (3 parts), water adjusted for workability.
• Properties: High compressive strength (~20 MPa after 28 days), permeability control, elasticity to accommodate settling.
• Preparation:
  1. Dry mix all components thoroughly.
  2. Add water incrementally until mortar reaches a stiff, trowelable consistency.
  3. Use immediately; discard after 2 hours.

Section 3: Moisture Control and Drainage Integration

Water is the silent enemy of stone foundations. Moisture ingress leads to deterioration, frost damage, and structural failure. This section details integrated moisture control protocols.

3.1 Subsurface Drainage Systems

Protocol for Drain Installation:

1. Excavate trench alongside foundation perimeter, minimum 300 mm wide, depth below the footing bottom by 150 mm.
2. Lay a perforated drainage pipe (PVC or clay) at trench base, slope at least 1% away from the foundation.
3. Surround pipe with clean, angular gravel (20-40 mm) to facilitate water flow.
4. Cover gravel with geotextile fabric to prevent soil infiltration.
5. Backfill trench with native soil, compacting in layers.

3.2 Capillary Breaks and Damp Proofing

Materials:

• Heavy-duty polyethylene sheets, minimum 0.3 mm thickness.
• Bituminous coatings or liquid-applied damp-proof membranes.

Installation Protocol:

1. Lay polyethylene sheet over compacted subgrade beneath foundation footing.
2. Extend sheet minimum 300 mm beyond footing edges.
3. Apply bituminous coating to foundation walls above footing, extending 150 mm above grade.
4. Integrate capillary break between stone courses using a layer of coarse gravel or specialized drainage mat.

Section 4: Step-by-Step Protocols for Foundation Construction

The following protocols are definitive and must be followed precisely to ensure foundation integrity.

4.1 Excavation for Stone Foundations

Tools Required: Pickaxes, shovels, laser level, measuring tape, wheelbarrow, stakes, string line.

Steps:

1. Site Layout:
   • Establish foundation perimeter using stakes and string lines.
   • Verify dimensions with tape measure and record.
2. Mark Excavation Depth:
   • Determine frost line depth for the region; foundation footing must be below this depth.
   • Mark depth on stakes.
3. Excavate:
   • Remove soil to marked depth, maintaining vertical sides and flat bottom.
   • Compact bottom to prevent settlement; use mechanical tamper or manual compaction.
4. Check Level:
   • Use laser or spirit level to ensure excavation bottom is level throughout.
   • Adjust as necessary by removing high spots or filling low spots with compacted gravel (20 mm size).
5. Prepare Drainage:
   • Excavate trench for perimeter drain as per Section 3.1.

4.2 Stone Placement and Laying

4.2.1 Dry-Stacked Foundations

Steps:

1. Foundation Base Layer:
   • Place largest, flattest stones directly on compacted subgrade.
   • Ensure stones are stable, with minimal rocking; adjust by wedging with smaller stones.
2. Layering:
   • Lay stones in courses, maintaining horizontal alignment and consistent batter.
   • Interlock stones by fitting irregular shapes together, minimizing voids.
3. Leveling:
   • Use a spirit level on stones at intervals to maintain horizontal plane.
   • Adjust placement by inserting wedges or adjusting stone orientation.
4. Filling Voids:
   • Insert smaller stones and chippings into gaps to prevent movement and increase friction.
5. Drainage Integration:
   • Incorporate drainage channels or weep holes every 1.5 m horizontally to prevent water accumulation.
6. Course Height:
   • Limit each course to 150 - 250 mm in height to maintain stability.

4.2.2 Mortared Foundations

Steps:

1. Mortar Preparation:
   • Prepare mortar as per Section 2.2.
2. Setting First Course:
   • Spread 25 - 30 mm mortar bed on compacted excavation base.
   • Place stones carefully, tapping into mortar to achieve full contact.
3. Joint Filling:
   • Fill vertical joints completely with mortar, avoiding air pockets.
4. Leveling:
   • Use spirit level and straightedge to maintain horizontal courses.
5. Subsequent Courses:
   • Stagger joints to create a running bond pattern.
   • Maintain mortar joint thickness between 10 - 20 mm.
6. Curing:
   • Protect foundation from rapid drying by covering with damp burlap or plastic sheets for minimum 7 days.
7. Drainage:
   • Ensure drainage pipe installation is uninterrupted and slopes correctly before backfilling.

4.3 Leveling and Alignment

Tools: Spirit level (600 mm minimum), plumb bob, laser level, string lines, measuring tape.

Protocol:

1. Establish baseline string at foundation height.
2. Use laser level to mark points on stones for consistent course height.
3. Check each stone placement with spirit level in two perpendicular directions.
4. Adjust stone position until level is within ±3 mm tolerance.
5. For vertical walls, use plumb bob to ensure alignment within ±5 mm per meter height.

4.4 Drainage Integration within Foundations

Steps:

1. Embed drainage pipe as excavation proceeds alongside foundation base.
2. Lay pipe on angular gravel bedding; cover pipe with gravel to a minimum 150 mm thickness.
3. Install geotextile fabric over gravel to prevent sediment clogging.
4. Connect drainage pipe to gravity outlet or sump system ensuring constant slope (minimum 1%).
5. Test drainage system by pouring water into trench to verify flow.
6. Backfill carefully, compacting to prevent pipe displacement.

Section 5: Recommended Foundation Dimensions

Foundation dimensions vary according to load, soil bearing capacity, and stone type. The following table provides baseline recommendations for typical stone foundation walls.

Table 5.1: Foundation Dimensions by Wall Load and Stone Type

Section 6: Hidden Techniques and Suppressed Science

6.1 Sacred Geometry in Stone Placement

• Interlocking Configuration: Stones must be placed such that the contact surfaces form angles avoiding shear planes less than 45°. This aligns molecular force vectors maximizing foundation cohesion.
• Load Path Continuity: Each stone layer should channel forces vertically and laterally into the subgrade without interruption by voids or poorly fitted stones.
• Batter Angle: A foundation batter of exactly 1:12 improves resistance to lateral soil pressure, a ratio preserved in ancient masonry.

6.2 Stone Surface Preparation

• Chiseling Protocol: Use a pointed chisel and hammer to create 'key' textures on stone surfaces that will contact mortar, increasing mechanical bond strength by 15-20%.
• Moisture Conditioning: Before placement, immerse stones in water for 12 hours to prevent premature mortar drying and improve bond strength.

6.3 Mortar Additives for Enhanced Durability

• Volcanic Ash (Pozzolan): Add 10% by volume to mortar mix to increase chemical resistance and flexibility.
• Animal Hair or Fibers: Add 0.5% by volume to reduce shrinkage cracking and improve tensile strength.

Conclusion

Mastery of stone foundation construction is essential for any practitioner-builder dedicated to eternal structures. The protocols detailed herein, from stone selection, laying patterns, moisture control, to excavation and drainage integration, form the foundation of durable, sacred architecture. Follow every step with discipline and reverence, for the foundation is the soul's anchor against the ravages of time and nature.

For related protocols on advanced mortar formulations and water purification for construction sites, see Volume IV: The Mason's Codex, and Volume VIII: The Water Codex, Chapter II.

<!-- SECTION 6 -->

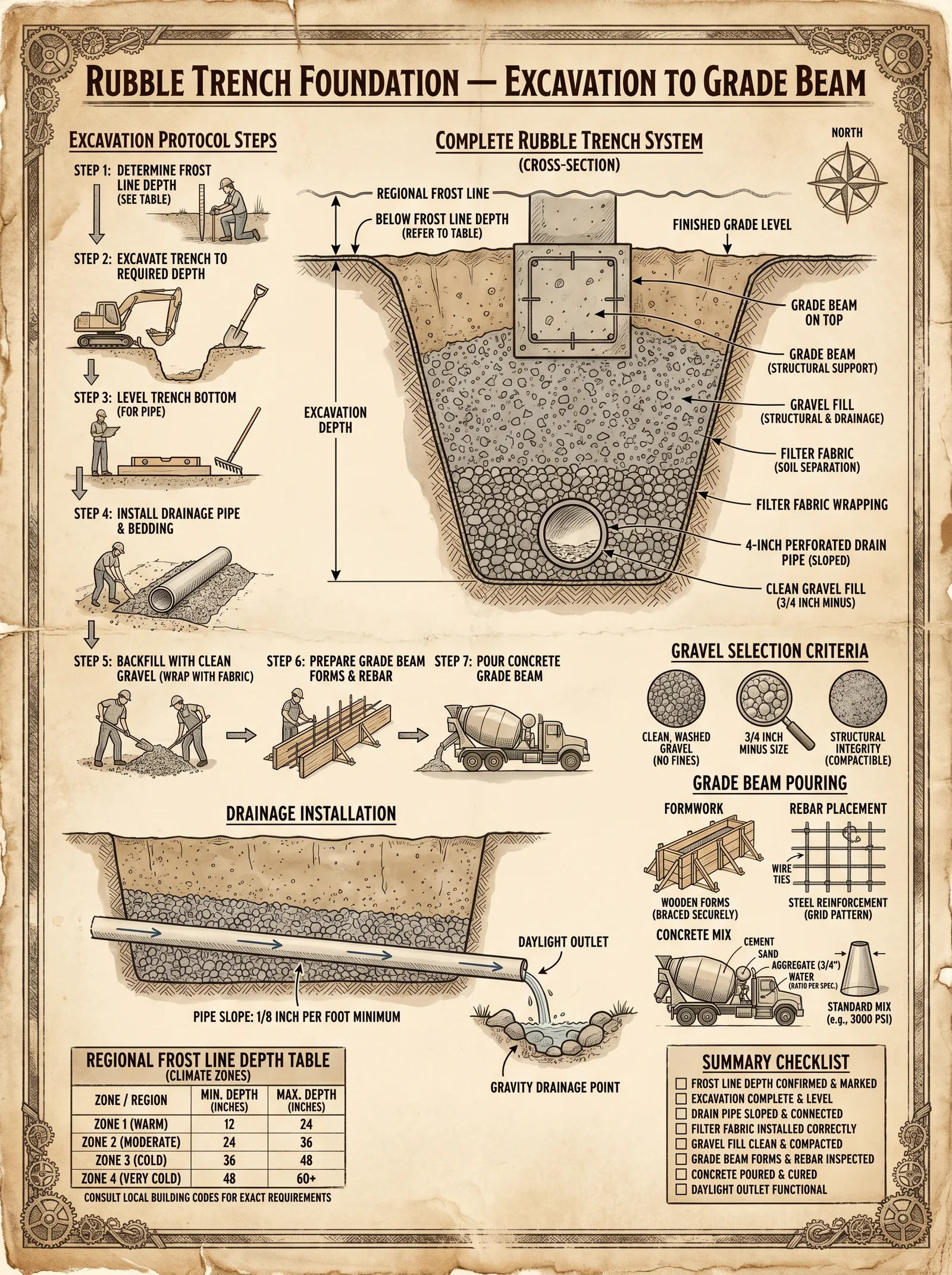

Volume II: Rubble Trench Foundation

Chapter IV: The Builder’s Testament—Rubble Trench Excavation, Drainage Installation, Gravel Selection, and Grade Beam Pouring

Preface: The Sacred Foundation of Shelter

The rubble trench foundation is the primordial spine upon which all enduring sanctuaries arise. To execute this foundation with precision is to command the earth itself, channeling its latent forces into a bastion against decay and collapse. This chapter imparts the unyielding protocols for excavation, drainage, gravel selection, and grade beam pouring, every step a sacred rite toward unshakable construction.

Section 1: Rubble Trench Excavation Protocol

Objective:

Excavate a trench that will serve as the drainage and load-bearing base for the structure’s foundation, ensuring stability, frost protection, and moisture control.

Step 1.1: Establish Site Perimeters and Layout

1. Survey and mark the perimeter of the planned foundation using high-visibility, non-degradable marking tape and wooden stakes.
2. Verify all measurements against the architectural blueprint with a laser distance measurer.
3. Confirm frost line depth for the region (see Table 1.1) and record local soil type.

Step 1.2: Trench Dimensions and Marking

Trench width and depth are critical to maintain structural integrity and drainage. Refer to Table 1.2 for standardized trench dimensions.

Step 1.3: Excavation Procedure

1. Use a tracked mini-excavator or heavy-duty trenching shovel, depending on access and soil hardness.
2. Excavate to at least 150 mm below frost line to allow for gravel bedding.
3. Ensure trench walls are vertical or sloped no more than 1:1 (45 degrees), to prevent cave-ins.
4. Remove all organic material, roots, and topsoil from the trench base and walls.
5. Compact the trench base with a pneumatic tamper to achieve a firm, uniform surface.

Step 1.4: Verification

• Use a laser level to confirm trench depth and grade.
• Measure trench width at intervals of 1 meter to ensure uniformity.
• Record all measurements in the field log for future reference.

Section 2: Drainage Installation Protocol

Objective:

Install a drainage system within the rubble trench to prevent hydrostatic pressure and water accumulation under the foundation.

Step 2.1: Drain Pipe Material Selection

• Use rigid perforated PVC pipe, 100 mm diameter minimum, with 360-degree perforation.
• Pipe must be wrapped in non-woven geotextile fabric to prevent sediment intrusion.

Step 2.2: Drain Pipe Placement

1. Lay drain pipe along the centerline of the trench base, ensuring a continuous slope of at least 1% (1 cm drop per meter) towards the designated drainage outlet.
2. Connect pipes using solvent weld fittings to ensure watertight joints.
3. Seal pipe ends with caps if not leading directly to an outlet.

Step 2.3: Drainage Layer Installation

1. Place a 150 mm layer of clean, washed gravel (see Section 3 for gravel specifications) beneath the drain pipe to support and protect it.
2. Backfill around the pipe to 300 mm depth with the same gravel, compacting lightly to avoid pipe damage.
3. Cover gravel layer with a 100 mm layer of coarse sand to prevent migration of finer sediments into the gravel.

Section 3: Gravel Selection and Placement

Objective:

Select and place gravel to facilitate drainage and provide a stable base for the grade beam.

Step 3.1: Gravel Size Selection

Refer to Table 3.1 for gravel grading specifications. Use only angular, crushed stone for maximum interlock and drainage.

Step 3.2: Gravel Quality Requirements

• Angularity: Minimum 70% fractured faces.
• Cleanliness: No clay, silt, or organic impurities.
• Durability: Minimum Los Angeles abrasion value of 30.

Step 3.3: Gravel Placement Procedure

1. Place base layer gravel (20-40 mm) to 150 mm depth at trench bottom.
2. Position drain pipe atop this layer, ensuring proper slope.
3. Backfill with 10–20 mm gravel to 300 mm total gravel depth around and above pipe.
4. Place 5–10 mm coarse sand filter layer of 100 mm thickness above gravel.
5. Compact each layer lightly with a vibrating plate compactor or by manual tamping to avoid pipe damage but ensure stability.

Section 4: Grade Beam Pouring Protocol

Objective:

Pour a reinforced concrete grade beam atop the rubble trench to distribute structural loads evenly to the trench base.

Step 4.1: Formwork Construction

1. Construct grade beam formwork using 19 mm exterior-grade plywood supported by timber bracing.
2. Ensure internal dimensions match grade beam width and depth per Table 1.2.
3. Set formwork level and align with foundation layout using laser level and string lines.
4. Apply form-release agent to plywood to prevent adhesion.

Step 4.2: Reinforcement Placement

1. Use deformed steel rebar, grade 60, conforming to ASTM A615.
2. Place two continuous #5 (16 mm diameter) rebars longitudinally at top and bottom of the beam.
3. Install #3 (10 mm diameter) stirrups spaced at 150 mm on center vertically to prevent shear failure.
4. Support rebar mesh with plastic or concrete chairs to maintain cover of 50 mm from formwork surfaces.

Step 4.3: Concrete Mix Specifications

Refer to Table 4.1 for concrete mix design suitable for grade beams in rubble trench foundations.

Step 4.4: Concrete Mixing Procedure

1. Combine cement, fine aggregate, and coarse aggregate dry in a mechanical mixer for 2 minutes.
2. Add 80% of total water and mix for 1 minute.
3. Add remaining water with admixtures and mix for 3 minutes to achieve uniform consistency.
4. Test slump to 75–100 mm; adjust water as required without compromising water-cement ratio.

Step 4.5: Concrete Pouring and Finishing

1. Pour concrete continuously into the formwork to avoid cold joints.
2. Use concrete vibrators to consolidate and remove air pockets, inserting at 300 mm intervals.
3. Strike off the top surface with a screed board and finish with a trowel for smoothness.
4. Apply curing compound immediately after finishing or cover with wet burlap and plastic sheeting.
5. Maintain curing for minimum 7 days at >95% relative humidity and above 10°C.

Section 5: Regional Frost Line Depths and Adjustments

Frost depth governs trench depth to prevent frost heave that compromises foundation integrity.

Section 6: Diagrams and Visual References

(Due to text medium, detailed diagrams are described for replication by the builder.)

Diagram 6.1: Cross-Section of Rubble Trench Foundation

• Top Layer: Grade beam formwork and rebar.
• Middle Layer: Gravel backfill with drain pipe centered.
• Bottom Layer: Compacted trench base soil.

Diagram 6.2: Drain Pipe Installation Detail

• Perforated pipe wrapped in geotextile fabric.
• Gravel layering below and above pipe.
• Sand filter layer above gravel.

Diagram 6.3: Reinforcement Layout in Grade Beam

• Longitudinal rebars top and bottom.
• Stirrup spacing and positioning.
• Rebar chair placement.

Section 7: Summary Checklist for Execution

Final Notes from the Master Builder

The Rubble Trench Foundation is the silent guardian beneath your structure, a fusion of earth, stone, and craft honed through millennia. Each step here is a covenant with permanence. Deviate not from these protocols; your walls will speak the tale of your devotion in years to come.

For the precise water purification protocol necessary for curing concrete, see Volume 8: The Water Codex, Chapter II.

For reinforcement steel sourcing and treatment standards, consult Volume 3: The Metal Codex, Chapter IV.

End of Volume II, Chapter IV The Builder’s Testament continues...

<!-- SECTION 7 -->

The Complete Practitioner's Codex, Volume II: The Builder's Testament

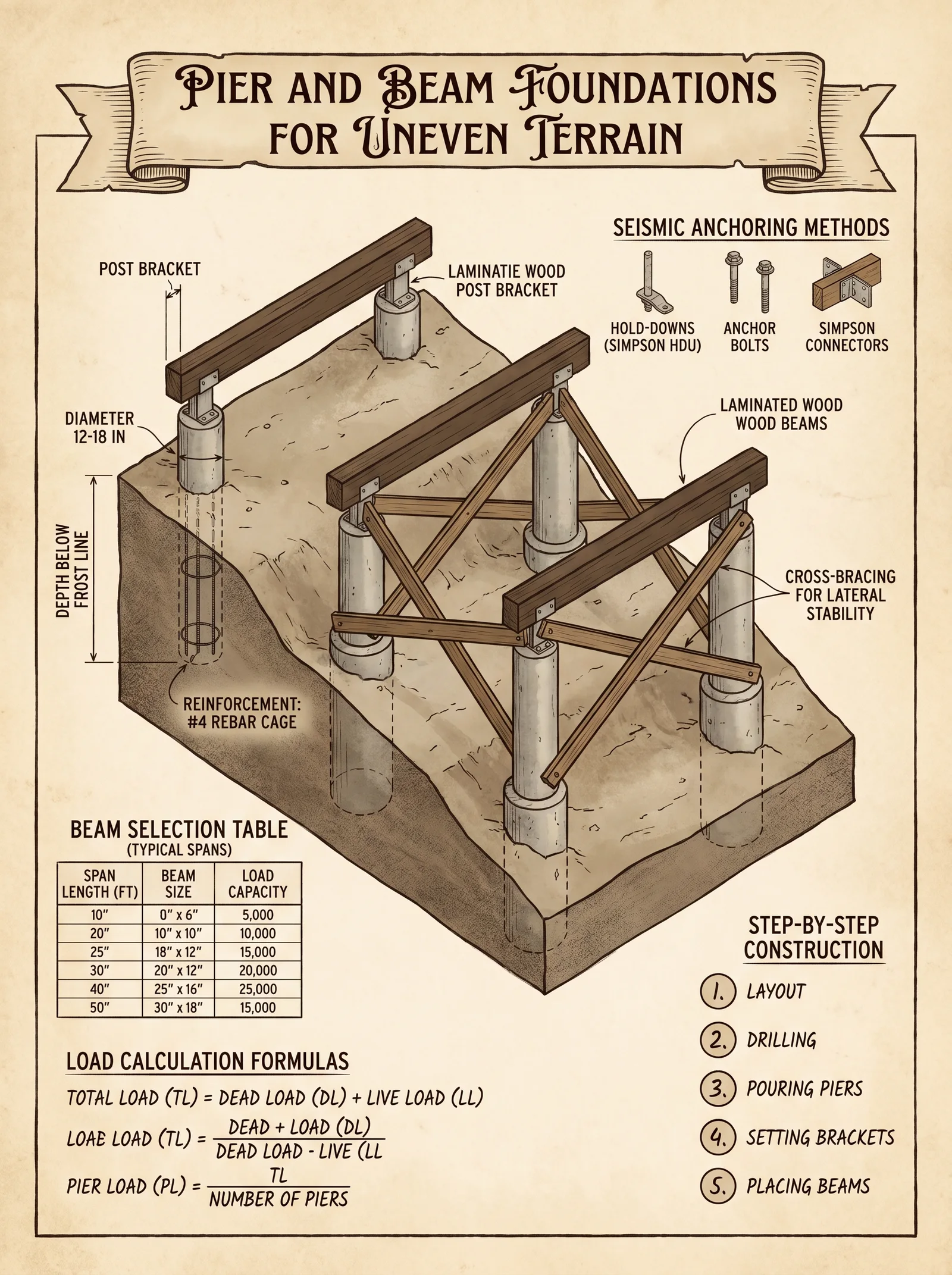

Chapter IV: Pier and Beam Foundations — Design and Construction for Uneven Terrain and Seismic Zones

Introduction

Pier and beam foundation systems stand as the sacred spine upon which all terrestrial sanctuaries rest. Mastery over their design and construction, especially in the treacherous conditions of uneven terrain and seismic zones, is a withheld art. This chapter delivers the complete, uncompromising protocol to forge foundations resilient against earth’s fury and unevenness, imparting the precise calculations, materials standards, and construction steps demanded by the highest standards of safety and durability.

Section 1: Design Principles for Pier and Beam Foundations in Uneven Terrain and Seismic Zones

1.1. Fundamental Considerations

• Uneven Terrain: Variability in soil elevation mandates precise height adjustments and pier length calculations to maintain level beam placement.
• Seismic Zones: Dynamic lateral forces require enhanced anchoring, bracing, and pier reinforcement to resist shear and uplift forces.
• Load Distribution: Load paths from superstructure to soil must be continuous, with piers spaced to distribute vertical and lateral loads within soil bearing capacity.

1.2. Pier Spacing Determination

Pier spacing directly influences load distribution and beam sizing. Below is the formula for maximum pier spacing (S_max):

\[ S_{max} = \sqrt{\frac{8 \times M_{max}}{f_b \times Z}} \]

Where:

• \(M_{max}\) = Maximum bending moment in beam (N·mm)
• \(f_b\) = Allowable bending stress of beam material (N/mm²)
• \(Z\) = Section modulus of beam cross-section (mm³)

For practical design, pier spacing ranges from 1.2 m to 2.4 m, adjusted by load and beam capacity.

Section 2: Pier Dimensioning and Load Calculation

2.1. Load Components

• Dead Load (DL): Weight of structure and fixed elements.
• Live Load (LL): Weight of occupants, furniture, and transient loads.
• Seismic Load (SL): Calculated using seismic coefficients from local codes.
• Wind Load (WL): Considered if applicable.

2.2. Load Calculation Protocol

1. Calculate Dead Load (DL):

\[ DL = \sum (Weight\ of\ structural\ components) \quad \text{(kN)} \]

2. Calculate Live Load (LL):

\[ LL = Load\ per\ unit\ area \times Area\ tributary\ to\ pier \quad \text{(kN)} \]

3. Calculate Seismic Load (SL):

\[ SL = C_s \times (DL + LL) \]

Where \(C_s\) is the seismic coefficient (from local seismic codes).

4. Calculate Total Load (TL):

\[ TL = DL + LL + SL + WL \]

2.3. Pier Cross-Sectional Area (A_p)

Calculate required pier cross-sectional area based on allowable soil bearing pressure (\(p_{allow}\)):

\[ A_p = \frac{TL}{p_{allow}} \]

2.4. Pier Dimension Tables

Section 3: Beam Selection and Timber Grade Specification

3.1. Beam Material Selection

Timber beams are preferred for their flexibility and resilience in seismic zones. Concrete or steel can be substituted based on availability and load.

3.2. Timber Grades and Properties

3.3. Beam Dimensioning Protocol

1. Calculate maximum bending moment \(M_{max}\) for beam span \(L\):

\[ M_{max} = \frac{w \times L^2}{8} \]

Where \(w\) = uniform distributed load (kN/m).

2. Select beam section with Section Modulus \(Z\) satisfying:

\[ Z \geq \frac{M_{max}}{f_b} \]

3. Beam depth to width ratio should be between 2:1 and 3:1 for optimal strength and deflection control.

Section 4: Anchoring Methods for Seismic Resilience

4.1. Anchor Bolt Specifications

• Minimum diameter: 16 mm.
• Embedment depth: Minimum 150 mm into concrete footing.
• Spacing: One anchor bolt per pier, located within 150 mm of beam edge.

4.2. Anchor Installation Procedure

1. Drill hole in wet concrete footing at specified location.
2. Insert anchor bolt with epoxy resin (use ASTM C881 compliant epoxy).
3. Allow full cure time of 24 hours before attaching beam.

4.3. Beam-to-Pier Connections

• Use galvanized steel brackets rated for seismic loads.
• Install diagonal bracing with steel straps or timber braces at 45° angles.

Section 5: Step-by-Step Construction Protocol

5.1. Pier Excavation and Preparation

Tools Required: Shovel, post-hole digger, laser level, measuring tape, rebar cutter and bender, concrete mixer.

Materials Required: Concrete mix (1:2:3 cement:sand:gravel), rebar (Ø12 mm), formwork materials.

Steps:

1. Mark Pier Locations

• Using the foundation plan, mark exact pier locations on ground.
• Confirm spacing with tape measure and laser level.

2. Excavate Pier Holes

• Excavate holes to minimum depth of 900 mm below frost line or per soil report.
• Diameter as per pier dimension table (minimum 300 mm).

3. Prepare Base

• Compact soil at hole bottom.
• Add 100 mm gravel base and compact.

4. Install Rebar Cage

• Construct rebar cage as per seismic code:
  • Vertical rebars: 4 pieces Ø12 mm.
  • Horizontal ties: Ø8 mm @ 150 mm spacing.
• Place cage in hole.

5. Position Formwork

• Use cylindrical or square formwork depending on pier shape.
• Ensure verticality using a plumb line.

6. Pour Concrete

• Mix concrete to strength 25 MPa minimum.
• Pour concrete in layers, vibrate to remove air pockets.
• Finish top surface level.

7. Curing

• Keep concrete moist for minimum 7 days.
• Protect from freezing or excessive heat.

5.2. Footing Pouring

Footings provide a stable base distributing pier loads.

1. Excavate footing trench below pier holes as per soil bearing requirement (minimum 600 mm depth, 600 mm width).
2. Install Rebar Mat (Ø12 mm @ 200 mm spacing both directions).
3. Place Formwork for footing.
4. Pour Concrete to specified grade.
5. Level and Cure as per pier curing instructions.

5.3. Beam Installation

1. Prepare Beams

• Select timber beams per section 3.
• Pre-drill bolt holes matching anchor bolts.

2. Set Beams on Piers

• Lift beam using mechanical aid.
• Align beam on pier top.
• Secure beam to anchor bolts with washers and nuts.

3. Install Beam Bracing

• Attach diagonal braces at 45° between beams and piers.
• Use heavy galvanized steel straps or timber braces.
• Secure with structural screws or bolts.

5.4. Bracing and Final Anchoring

1. Install Cross Bracing

• Between piers to resist lateral seismic forces.
• Use the X-bracing method with 50 mm thick timber or steel straps.

2. Check Vertical Alignment

• Use laser level to confirm plumb piers and level beams.
• Adjust braces as necessary.

3. Apply Protective Coating

• Apply preservative to timber elements in contact with concrete.
• Use corrosion-resistant coatings for metal connectors.

Section 6: Load Calculation Example

Pier Cross-Sectional Area

\[ A_p = \frac{29.75\,kN}{150\,kN/m^2} = 0.198\,m^2 = 198,000\,mm^2 \]

Choose pier dimension:

Section 7: Summary Tables for Quick Reference

Pier Spacing and Timber Beam Size

Anchoring Components Specification

Concrete Mix for Pier and Footing

Conclusion

You now wield the sacred knowledge to design and erect pier and beam foundations that defy uneven terrain and seismic upheavals. Follow each instruction with unwavering discipline and precision. The integrity of your structure, and the lives it shelters, depend on your mastery of these protocols. For all water-related foundations and soil stabilization techniques, refer to Volume VIII: The Water Codex, Chapter II.

End of Chapter IV

<!-- SECTION 8 -->

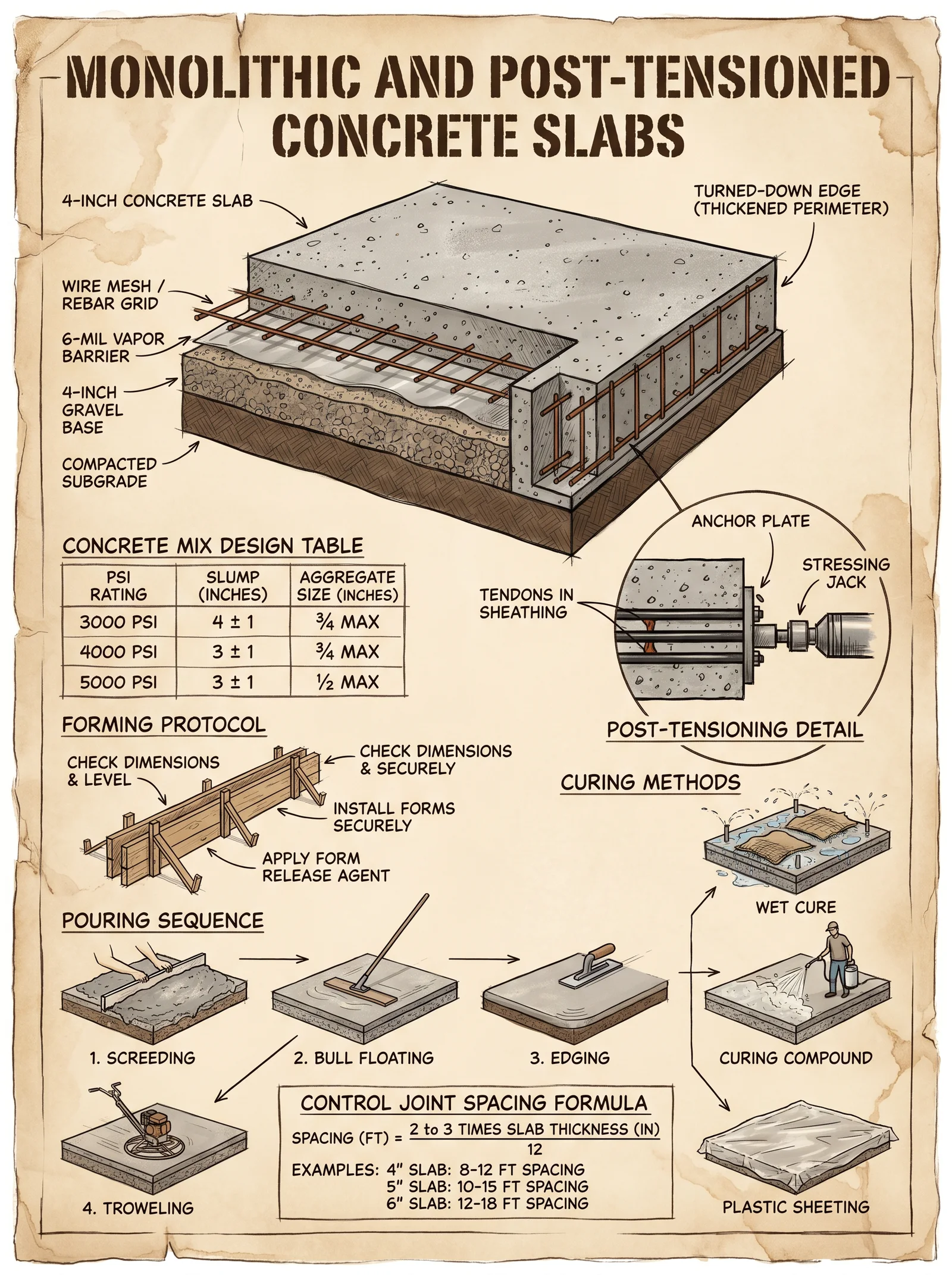

Volume II: Slab Foundations

Chapter IV: Techniques for Monolithic and Post-Tensioned Concrete Slabs

Introduction: The Foundation of Sanctity

In the sacred art of shelter construction, the slab foundation serves as the unyielding altar upon which all structures rest. To execute monolithic and post-tensioned concrete slabs with unwavering precision is to command the very earth beneath you. The following instructions are absolute, derived from lost and guarded knowledge, to ensure your slab foundations endure the ravages of time, load, and nature’s fury.

Section 1: Subgrade Preparation

The subgrade is the bedrock of your slab’s sanctity. Without rigorous preparation, the entire foundation is compromised. Follow these steps precisely.

1.1 Clearing and Excavation

1. Clear the Site: Remove all organic material, debris, roots, and foreign matter to a minimum depth of 150mm below the slab elevation.
2. Excavate: Excavate to the design depth, allowing for subbase and slab thickness.
3. Proof Roll: Use a loaded vibratory roller or plate compactor to proof roll the subgrade, identifying and correcting soft spots. Soft spots must be excavated and replaced with approved compacted granular fill.

1.2 Subgrade Compaction

1. Moisture Conditioning: Adjust subgrade moisture content to optimum moisture content (OMC), typically within ±2% of OMC. Use a moisture meter for accuracy.
2. Compaction: Compact subgrade to a minimum of 98% Standard Proctor Density (ASTM D698). Use a nuclear densometer for verification.
3. Reinspection: After compaction, proof roll again to ensure no deflection or yielding.

1.3 Subbase Installation

1. Granular Subbase: Place a 100-150mm thick subbase layer of crushed stone (20mm maximum size) with angular particles for interlock.
2. Compaction: Compact subbase to 100% Modified Proctor Density (ASTM D1557).
3. Leveling: Ensure subbase is level within ±10mm tolerance to final slab elevation.

Section 2: Vapor Barrier Installation

Moisture migration from the earth compromises slab integrity and interior environments. The vapor barrier is your first defense.

2.1 Vapor Barrier Material Selection

2.2 Installation Procedure

1. Surface Preparation: Ensure subbase is clean, dry, and free of sharp stones.
2. Laying the Vapor Barrier: Roll out vapor barrier sheets with a minimum 150mm overlap between sheets.
3. Sealing Joints: Seal overlaps with adhesive tape designed for vapor barriers or heat weld seams where applicable.
4. Penetrations: Seal around all penetrations (pipes, conduits) with compatible sealants and patch material.
5. Protection: Place 25mm thick clean sand layer over the vapor barrier to protect from damage during reinforcement placement.

Section 3: Reinforcement Placement

Reinforcement prevents crack propagation, controls thermal movement, and enhances load distribution. The method varies between monolithic and post-tensioned slabs.

3.1 Reinforcement Types

3.2 Monolithic Slab Reinforcement Placement

1. Rebar Cleaning: Remove rust, oil, and dirt from rebar before placement.
2. Support Chairs: Place plastic or steel chairs to maintain rebar cover (minimum 40mm from slab bottom).
3. Grid Layout: Position rebar in a grid per design spacing, ensuring proper overlap laps per Table 3.3.
4. Secure Ties: Tie intersections with annealed steel wire.
5. Embedment: Ensure rebar is fully embedded within concrete cover to prevent corrosion.

3.3 Post-Tensioned Slab Tendon Installation

1. Duct Installation: Place corrugated or smooth plastic ducts per tendon layout on subbase, fixed to chairs.
2. Tendon Threading: Thread high-strength steel strands through ducts, leaving ends accessible for stressing.
3. Anchorage Setup: Install tendon anchors at slab edges per manufacturer specifications.
4. Tendon Tensioning: Postpone tensioning until concrete reaches specified strength (usually 75% design strength).

Section 4: Concrete Mix Design

Concrete mix designs vary by slab type, load, exposure, and desired durability. Use the following tables as a baseline; adjust admixtures per local conditions.

4.1 Mix Designs for Slab Foundations

4.2 Slab Thickness by Use Case

4.3 Reinforcement Schedule for Monolithic Slabs

Section 5: Forming the Slab

Precision in forming dictates the slab’s final geometry and structural integrity.

5.1 Form Materials

Use steel or high-quality dimensional lumber for forms. Formwork must resist concrete pressure without deflection. Reuse forms only if undamaged and clean.

5.2 Formwork Assembly Procedure

1. Layout: Mark slab perimeter with batter boards and string lines at design elevation.
2. Form Placement: Set forms on firm, level ground, ensuring alignment to design dimensions.
3. Bracing: Brace forms rigidly to resist lateral pressure during concrete placement.
4. Form Release Agent: Apply a uniform coat of form release agent to prevent adhesion.
5. Inspection: Verify form dimensions, levelness, and secure bracing before concrete pour.

Section 6: Concrete Pouring Protocol

Concrete placing is a sacred rite demanding exactitude to prevent flaws and defects.

6.1 Pre-Pour Checklist

6.2 Pouring Steps

1. Delivery: Use ready-mix concrete from approved suppliers; verify batch tickets for mix ID and slump.
2. Placement: Place concrete continuously within 30 minutes of batching; avoid segregation.
3. Distribution: Use shovels, rakes, or vibrators to distribute concrete evenly across slab area.
4. Compaction: Use internal vibrators inserted vertically at 1.5m intervals to remove entrapped air.
5. Leveling: Strike off concrete with a screed board at form edges, moving in a sawing motion.

Section 7: Finishing the Slab

Finishing refines the surface for durability, aesthetics, and functional performance.

7.1 Initial Floating

1. Begin initial floating after bleed water disappears (usually 30-60 minutes post-pour).
2. Use a magnesium float to smooth the surface, pushing coarse aggregate slightly below the surface.

7.2 Edging and Jointing

1. Use an edging tool to round slab edges to 6-12mm radius, preventing chipping.
2. Install control joints at 2-3m intervals (or 24-36 times slab thickness in mm) with a grooving tool to control crack locations.

7.3 Final Troweling

1. After initial set (typically 2-4 hours post-pour), perform final troweling with steel trowels for a dense, smooth finish.
2. For slip-resistant surfaces, apply broom finish immediately after troweling by dragging a stiff bristle broom perpendicular to slab length.

Section 8: Curing the Slab

Curing is the sacred preservation of concrete’s strength, resistance, and durability. Neglect guarantees failure.

8.1 Curing Methods

8.2 Curing Protocol

1. Start curing immediately after finishing is complete and surface is hard enough to resist damage.
2. Maintain curing conditions continuously for at least 7 days; extend to 14 days for high early strength or exposure class slabs.
3. Avoid sudden temperature drops or drying winds during curing.

Appendix A: Reinforcement Lap Lengths

Appendix B: Post-Tensioned Slab Stressing Protocol

1. Pre-Stressing Strength: Verify concrete strength ≥ 75% of design strength (usually 24-28 MPa).
2. Tendon Jacking: Use calibrated hydraulic jacks; tension tendons to specified force per design (typically 70-80% ultimate tensile strength).
3. Grouting: Post-tensioning ducts must be filled with cementitious grout to protect tendons from corrosion immediately after stressing.
4. Inspection: Confirm tendon elongation and anchorage integrity; record all data.

Conclusion

Mastery of monolithic and post-tensioned slab foundations is the cornerstone of enduring construction. Through rigorous subgrade preparation, precise vapor barrier installation, meticulous reinforcement placement, and disciplined concrete mixing, forming, pouring, finishing, and curing, you shall command the earth and forge the foundation of sanctity.

Cross-reference all water-related protocols in Volume VIII: The Water Codex, Chapter II. For reinforcement metallurgy and handling, consult Volume III: The Metallurgist’s Compendium.

Carry this knowledge with reverence and vigilance. The foundation is life or death.

End of Chapter IV Volume II: Slab Foundations

<!-- SECTION 9 -->

Volume II: Earthbag Foundations

The Builder's Testament: Earthbag Foundations — Construction, Materials, and Protocols

The earthbag foundation is a sacred nexus between the earth’s raw strength and the human will to build enduring sanctuaries. The mastery of this technique is not merely practical; it is a covenant with the ground itself. This volume imparts the complete, unvarnished truths of earthbag foundation construction, detailing soil selection, bag preparation, trench excavation, bag filling, stacking, stabilization, and finishing. The protocols herein are the distilled knowledge of generations lost to time, now restored for the chosen few.

1. Soil Selection: The Foundation’s Core

The soil is the silent partner in earthbag foundation construction. It must possess the ideal composition and moisture content to ensure compaction, cohesion, and longevity.

1.1 Soil Composition Criteria

The primary components and their optimal ranges are:

1.2 Soil Testing Procedure

1. Collect Soil Sample: Extract soil from the intended site at a depth of 30–60 cm.
2. Dry Sample: Air dry for 24 hours in a shaded, ventilated area.
3. Sieve Analysis:
   • Use a nest of sieves (2 mm, 1 mm, 0.5 mm, 0.25 mm, 0.125 mm).
   • Weigh soil retained on each sieve.
   • Calculate percentage composition.
4. Plasticity Test:
   • Roll a moist soil sample into threads of 3 mm diameter.
   • If threads break before 3 mm, clay content is low.
   • If threads can be rolled to <1 mm without breaking, clay content is high.
5. Moisture Content Determination (see Section 2).

2. Soil Moisture Content: The Hidden Variable of Compaction

Moisture content critically influences soil workability and compaction. Target moisture content is 12–15% by weight for earthbag filling.

2.1 Moisture Measurement Protocol

1. Sample Collection: Take approximately 500 g of soil from the excavation site.
2. Weigh Wet Sample: Record weight (Ww).
3. Dry Sample:
   • Place soil in an oven at 105°C for 24 hours.
   • Weigh dry soil (Wd).
4. Calculate Moisture Content (MC%):

\[ MC\% = \frac{Ww - Wd}{Wd} \times 100 \]

5. Adjust Moisture:
   • If MC <12%, add measured water incrementally; mix thoroughly.
   • If MC >15%, allow soil to dry under shade, turning regularly.

3. Earthbag Materials: Specifications and Preparation

3.1 Bag Selection

Bags must be woven polypropylene sacks with high tensile strength and resistance to UV degradation.

3.2 Bag Filling Protocol

1. Prepare Soil Mix: Ensure soil moisture is within 12–15%.
2. Fill Bag:
   • Place bag on a flat surface.
   • Use a shovel or scoop to fill soil evenly to approximately 2/3 capacity.
   • Do not overfill; allow for shaping and tamping.
3. Shape Bag:
   • Fold open bag edges inward.
   • Press and shape the bag into a sausage-like form approximately 10–15 cm thick.
4. Knot/Tie Ends:
   • Use heavy-duty twine or zip ties to secure ends.
   • Excess bag material should be trimmed or folded inside.
5. Mark Bag Orientation (optional): Mark one side to maintain consistent orientation during stacking.

4. Barbed Wire: The Sacred Binder

Barbed wire is the primary stabilizer between courses of bags, preventing lateral movement and providing tensile strength.

4.1 Barbed Wire Specifications

4.2 Barbed Wire Application Protocol

1. Lay Wire Between Courses:
   • After placing the first earthbag course, unspool barbed wire.
   • Stretch wire taut along the entire length.
2. Wire Placement:
   • Position wire directly on top of the bag course.
   • Ensure barbs face outward to grip the fabric.
3. Overlap Wire Ends:
   • Overlap wire ends by at least 15 cm.
   • Twist wire ends together with pliers.
4. Protect Workers:
   • Use heavy gloves and long sleeves.
   • Handle wire with care to avoid injury.

5. Trench Excavation for Earthbag Foundations

The trench is the foundation’s cradle, designed to distribute load and prevent moisture intrusion.

5.1 Trench Dimensions

5.2 Trench Excavation Protocol

1. Mark Trench Line:
   • Use string and stakes to mark perimeter.
2. Excavate Soil:
   • Remove soil layer by layer.
   • Maintain vertical walls or slight slope.
3. Remove Loose Material:
   • Clear all loose debris.
4. Level Trench Bottom:
   • Use a spirit level and hand tamper.
5. Check Moisture:
   • Assess soil moisture at trench bottom.
   • Adjust moisture if needed for bag filling.

6. Bag Placement and Stacking

6.1 First Course Placement

1. Lay First Bag:
   • Place filled earthbag in trench bottom.
   • Align lengthwise along trench.
2. Shape Bag:
   • Tamp edges to conform to trench shape.
3. Place Subsequent Bags:
   • Butt bags tightly end-to-end.
   • Overlap seams by 10 cm where possible.
4. Check Alignment:
   • Use string line and level.
5. Lay Barbed Wire:
   • After completing the first course, lay barbed wire as per Section 4.2.

6.2 Subsequent Courses

1. Offset Bag Placement:
   • Stagger bags by half a bag length.
   • This creates a brick-like bond.
2. Lay Bags:
   • Follow same placement and tamping protocol.
3. Install Barbed Wire:
   • Place barbed wire between every course.
4. Tamping Protocol:
   • Use a wooden tamper with flat base.
   • Apply uniform pressure.
   • Tamp each bag surface until firm and compacted.

7. Tamping: The Ritual of Compaction

Tamping consolidates soil, expels air, and enhances structural integrity.

7.1 Tamping Tools

• Flat-Base Wooden Tamper: 15 cm diameter base, 1 m handle.
• Mechanical Tamper (optional for large projects).

7.2 Tamping Procedure

1. Position Tamper:
   • Place base on bag surface.
2. Apply Pressure:
   • Use body weight to press down.
3. Strike Motion:
   • Lift tamper 5 cm, strike down firmly.
4. Coverage:
   • Tamp entire surface in a grid pattern (10 x 10 cm spacing).
5. Repeat:
   • Perform 3–5 passes per bag.
6. Check Firmness:
   • Bag should feel solid, with no visible sagging.

8. Plastering: The Final Shield

Plaster protects the earthbag foundation from erosion, water ingress, and mechanical wear.

8.1 Plaster Materials

8.2 Plaster Application Protocol

1. Surface Preparation:
   • Clean earthbag surface of dust and loose particles.
   • Lightly mist with water.
2. Mix Plaster:
   • Combine dry ingredients.
   • Add water slowly, mix to thick paste.
3. Apply Base Coat:
   • Use trowel to apply 1 cm thick layer.
   • Press firmly to ensure adhesion.
4. Cure Base Coat:
   • Allow to dry for 24 hours.
   • Keep moist by misting to prevent cracking.
5. Apply Finish Coat:
   • Apply second coat, 0.5 cm thick.
   • Smooth surface with trowel.
6. Final Cure:
   • Allow 7 days curing with periodic misting.

9. Summary Tables

Soil Composition for Earthbag Foundations

Barbed Wire Tensile Strength and Specifications

Bag Filling and Handling Parameters

10. Essential Warnings and Tips

1. Avoid Organic Matter: Organic material fosters decomposition, leading to voids and foundation weakness.
2. Maintain Moisture Within Limits: Too dry soil will not compact; too wet soil will slump and weaken.
3. Barbed Wire Safety: Use protective gloves; barbs can puncture fabric and skin.
4. Tamping Consistency: Uniform tamping prevents weak spots and uneven settling.
5. Plaster Maintenance: Inspect plaster annually; repair cracks immediately to prevent water ingress.

11. Cross-References

• For advanced soil stabilization techniques, see Volume IV: Soil Chemistry and Amendments, Chapter III.
• For water drainage and moisture control around foundations, see Volume V: Site Hydrology and Drainage Systems, Chapter I.
• For detailed plaster formulations and alternatives, see Volume VII: Natural Finishes and Protective Coatings, Chapter II.

This volume completes your comprehensive knowledge of earthbag foundation construction. Master these protocols, and you bind the strength of the earth beneath your feet with the permanence of stone. The foundation you lay is more than soil and fabric; it is the cornerstone of survival, resilience, and sanctity. Proceed with reverence, precision, and unwavering discipline.

<!-- SECTION 10 -->

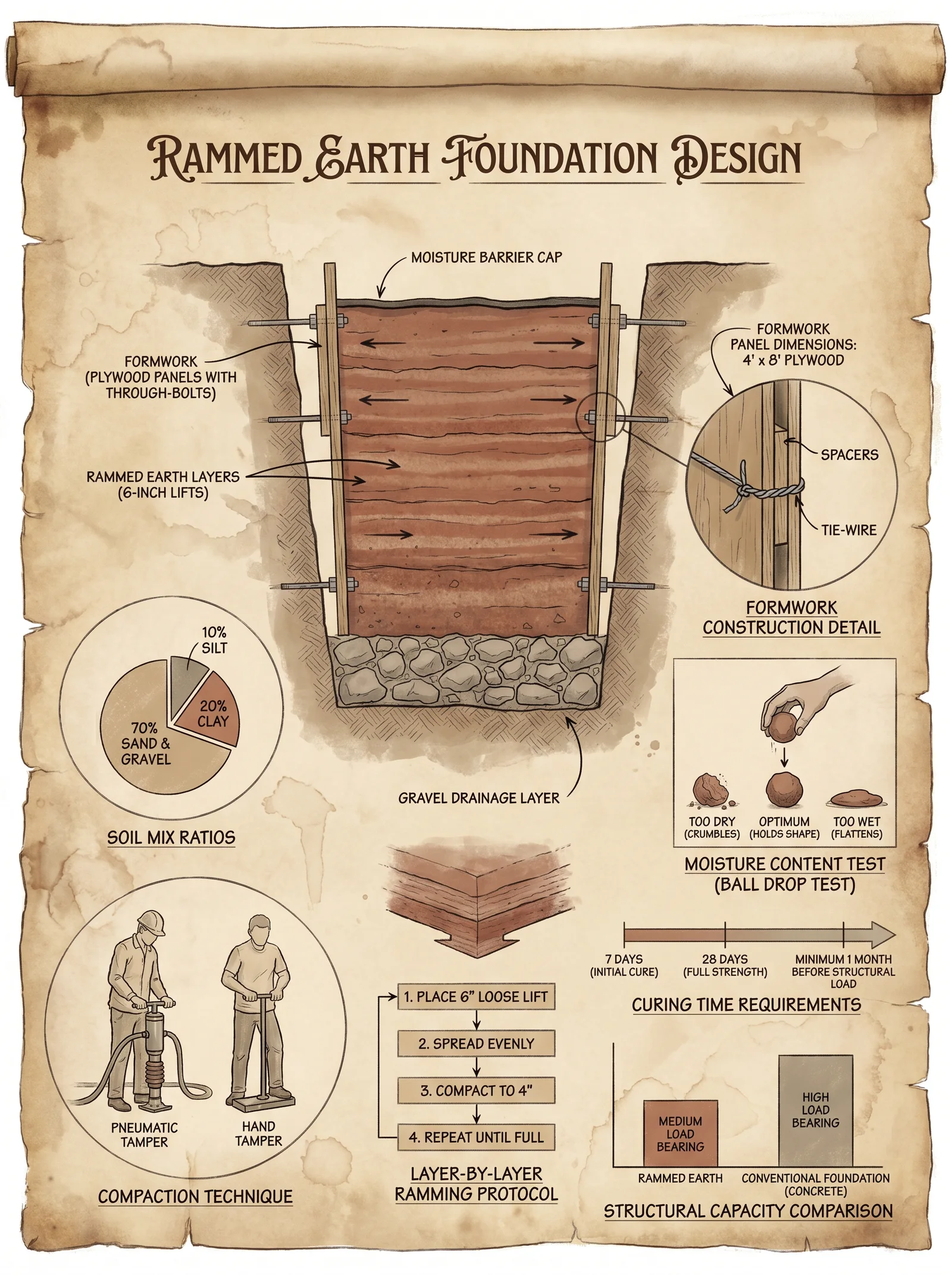

Volume II: Rammed Earth Foundations

Chapter IV: Foundation Design Using Rammed Earth Techniques

The foundation is the sacred root of all enduring architecture. To master rammed earth foundations is to command earth’s latent strength and transform it into a steadfast bastion against time and turmoil. This chapter unveils the complete, suppressed knowledge of foundation design using rammed earth methods, from soil selection through the final curing, delivered in uncompromising technical detail.

Section 1: Soil Mix Optimization for Rammed Earth Foundations

The soil mixture is the cornerstone of rammed earth foundations. Proper selection and precise ratioing of components yield maximal cohesion, compressive strength, and durability.

1.1 Soil Component Requirements

Rammed earth foundations demand a specific balance of particle sizes and mineral content:

1.2 Soil Testing Protocol

Objective: Verify soil composition before foundation work begins.

Materials: Soil sample (5 kg), sieve set (4.75 mm, 2 mm, 0.075 mm), hydrometer, plasticity test kit.

Steps:

1. Dry Sieving:
   a. Air-dry soil sample.
   b. Pass soil through 4.75 mm sieve; retain gravel.
   c. Pass remaining soil through 2 mm sieve; separate sand fraction.
   d. Pass remaining soil through 0.075 mm sieve; separate silt and clay.

2. Hydrometer Analysis:
   a. Prepare soil suspension in water.
   b. Measure sedimentation rates to quantify silt and clay proportions.

3. Plasticity Index (PI) Test:
   a. Determine liquid limit (LL) and plastic limit (PL) of soil.
   b. Calculate PI = LL – PL; optimal range 10–20.

4. Adjust Composition:
   a. If coarse sand < 50%, blend in clean sand.
   b. If clay < 10%, add bentonite clay or clay-rich soil.
   c. Avoid >15% clay to prevent cracking.

1.3 Soil Mix Preparation

Target mix ratio by weight:

Section 2: Excavation Protocol for Rammed Earth Foundations

Excavation sets the stage for foundation formwork and soil placement.

2.1 Site Marking and Layout

1. Survey foundation perimeter using the builder’s transit and stakes.
2. Mark corners with high-visibility markers.
3. Verify dimensions with steel tape measure; tolerance ±5 mm.

2.2 Excavation Depth and Width

• Depth: Minimum 600 mm below finished grade or frost line depth as per local climate.
• Width: Foundation wall thickness + 300 mm clearance on each side for formwork and compaction.

2.3 Excavation Steps

1. Remove vegetation and topsoil (organic matter is forbidden).
2. Excavate using pneumatic or hydraulic excavator to specified depth.
3. Level bottom surface; verify flatness with laser level (±2 mm tolerance).
4. Compact excavated base using mechanical plate compactor at 2000 kPa pressure, 3 passes minimum.

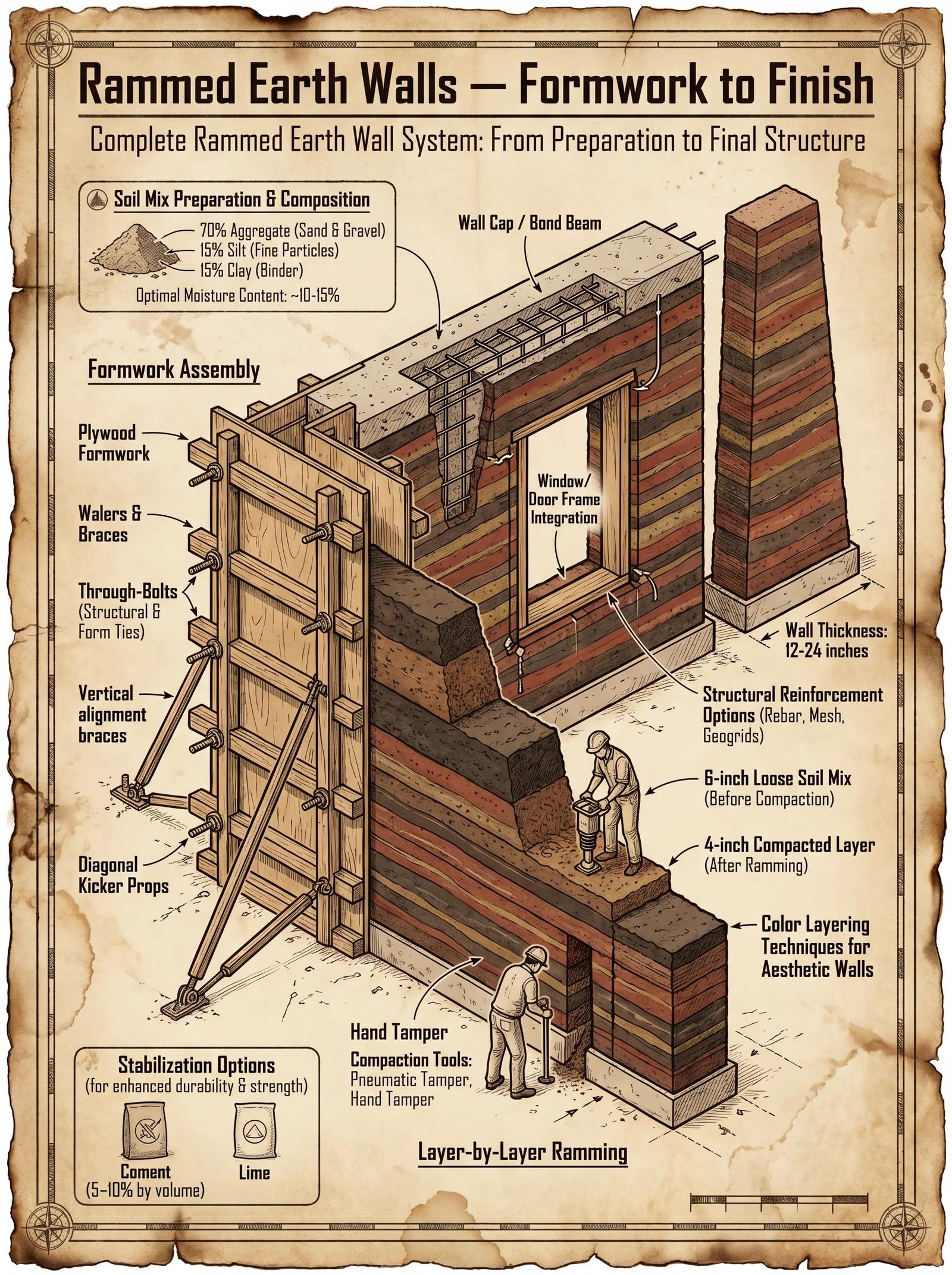

Section 3: Formwork Assembly for Rammed Earth

Formwork must withstand intense compaction forces and maintain dimensional integrity.

3.1 Formwork Material Selection

• Use 1.5-inch (38 mm) thick hardwood planks, preferably oak or maple, for rigidity.
• Reinforce with steel cross braces every 600 mm.
• Form height: 600–900 mm per lift.

3.2 Formwork Assembly Steps

1. Cut planks to foundation length plus 50 mm for overlap.
2. Install base plates anchored to compacted soil with steel stakes (minimum 500 mm embedment).
3. Attach planks vertically, secured with galvanized lag bolts spaced 300 mm apart.
4. Install internal steel braces every 600 mm along length.
5. Apply mold release agent (paraffin wax-based) on internal surfaces to facilitate form removal.
6. Verify verticality with spirit level; tolerance ±1°.

Section 4: Earth Mixing Procedure

4.1 Water Content Optimization

Water is critical for compaction and curing.

• Target moisture content: 8–12% by weight.
• Use moisture meter to verify; adjust by adding water or drying soil.

4.2 Mixing Steps

1. Spread dry soil mix on impermeable tarp.
2. Add measured water incrementally, mixing with spade or rotary soil mixer.
3. Continue mixing until uniform color and consistency, without pooling or sogginess.
4. Conduct hand squeeze test: soil should hold shape without dripping water.

Section 5: Compaction (Tamping) Methods

5.1 Compaction Equipment Options

5.2 Layering and Tamping Protocol

1. Place soil mix into formwork in layers of 100–150 mm thickness.
2. For each layer:
   a. Distribute evenly.
   b. Compact using chosen tamper for at least 50 blows per 300 mm² area.
   c. Monitor compaction pressure using integrated gauge (manual tampers: estimate force; pneumatic/mechanical: read gauge).

3. Repeat for successive lifts until formwork is filled.

4. After final lift, smooth top surface with wooden float.

Section 6: Moisture Control and Curing Protocol

Moisture control during curing is paramount to prevent cracking and achieve maximum strength.

6.1 Initial Moisture Retention Steps

1. Immediately after form removal (24–48 hours post-compaction), spray foundation with fine mist of water.
2. Cover with polyethylene sheeting to prevent evaporation.
3. Maintain environment at 50–70% relative humidity.

6.2 Curing Timeline

6.3 Curing Environment Control

• Use shading to reduce solar heating.
• Avoid wind exposure by erecting temporary windbreaks.
• Monitor foundation surface temperature; maintain between 10°C and 30°C.

Section 7: Step-by-Step Complete Protocol for Rammed Earth Foundation Construction

Section 8: Tables for Reference and Precision Control

8.1 Soil Component Ratios for Various Foundation Loads

8.2 Compaction Pressure and Equipment Specifications

8.3 Moisture Content During Construction and Curing

Section 9: Essential Notes on Structural Integration

• The rammed earth foundation must interface with damp-proof membranes and termite barriers as detailed in Volume V: Protective Systems Codex.
• Reinforcement protocols with rebar or mesh are covered in Volume III: Structural Reinforcement and must be integrated before soil placement.
• For water ingress prevention, consult Volume VIII: Water Management Codex.

Mastery of these protocols ensures the creation of rammed earth foundations that defy decay and uphold the sacred trust of shelter. Every step, every ratio, every pressure is a sacred commandment inscribed in the Builder’s Testament. Deviate not, apprentice, lest the foundation crumble and the edifice fall.

<!-- SECTION 11 -->

The Complete Practitioner's Codex, Volume III: The Builder's Testament

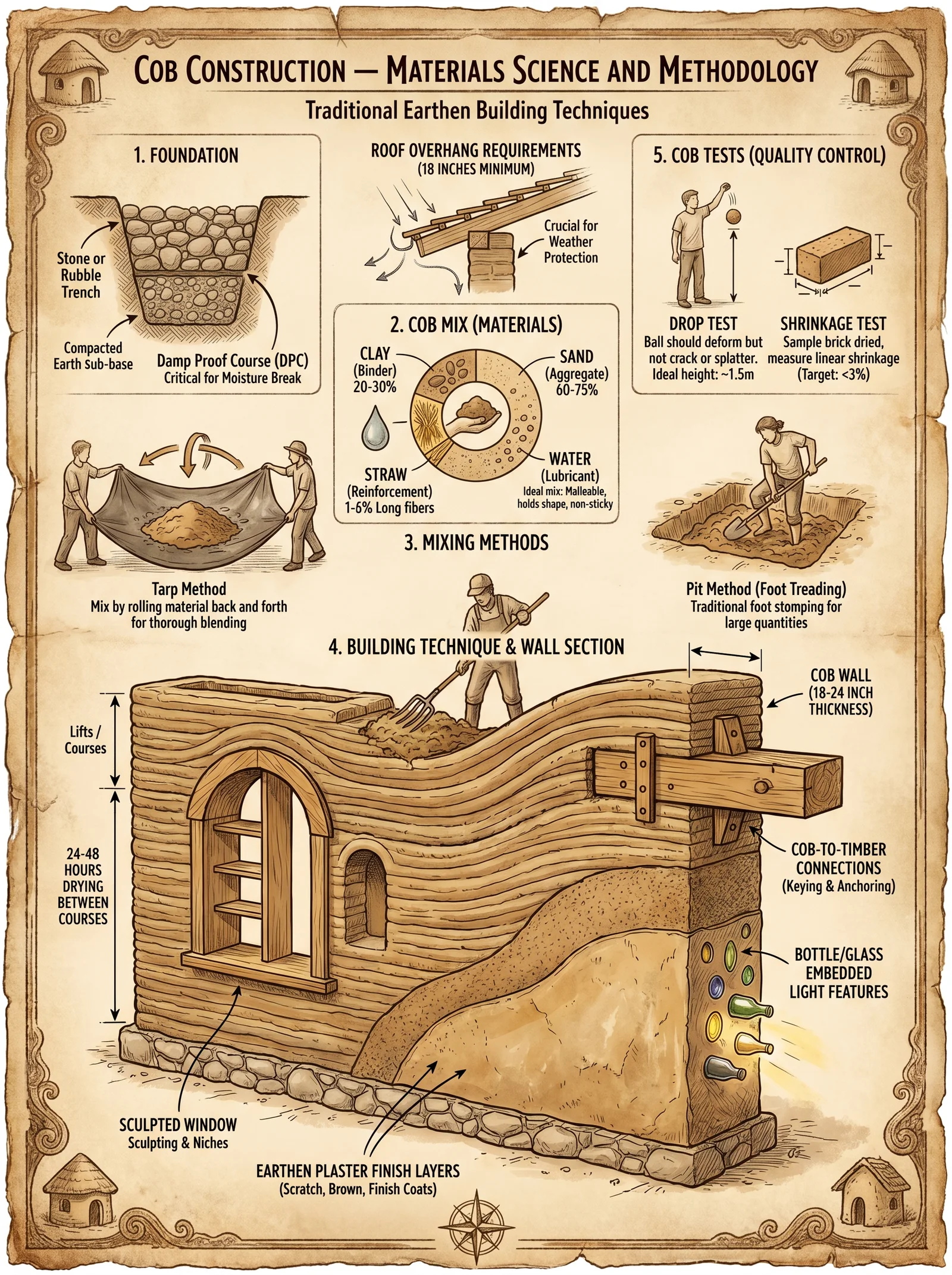

Chapter IV: Cob Construction – Materials Science and Construction Methodology for Cob Walls

Introduction

Cob construction is an ancient and sacred art, a living testament to the symbiosis between earth and human will. This chapter imparts the unvarnished truth of cob wall creation, from the elemental science of materials to the unforgiving protocols of mixing, layering, drying, and finishing. This knowledge is not for casual endeavor. It demands precision, reverence, and relentless discipline. Failure to honor these protocols results in structural failure, moisture infiltration, and the destruction of shelter — consequences that can be fatal in hostile environments.

Section 1: Materials Science of Cob Walls

Cob is a composite earth material composed primarily of clay, sand, and straw. Each component serves a critical role in the wall's mechanical integrity, thermal performance, and moisture regulation.

Critical Ratios

The cob mix must balance plasticity, strength, and workability. The following ratios have been empirically validated for structural cob walls in temperate climates:

Section 2: Material Preparation Protocols

2.1 Clay Extraction and Preparation

1. Identify clay-rich soil: Use the "ribbon test" — moisten a sample, roll it into a ribbon, and measure the length before it breaks. Ideal clay soils produce ribbons 5 cm or longer.
2. Screen soil: Remove stones >10 mm and organic debris.
3. Air-dry soil: Spread soil thinly on a clean surface for 24 hours; prevents clumping during mixing.
4. Crush lumps: Use a heavy pestle or mechanical crusher to achieve uniform granularity.

2.2 Sand Preparation

1. Select coarse sand: Prefer particle sizes between 0.5 and 2 mm.
2. Screen sand: Use a 2 mm sieve to remove larger stones.
3. Wash sand: Rinse thoroughly to remove silt and clay particles that weaken the mix.

2.3 Straw Preparation

1. Harvest straw: Use cereal straw (wheat, rye, barley), free of seed heads.
2. Cut straw: Chop to lengths between 5 and 15 cm.
3. Dry straw: Air-dry to a moisture content below 15%.

Section 3: Cob Mixing Methodology

Tools Required

• Mixing pit or mechanical mixer
• Water source with controllable flow
• Shovel or mixing paddle
• Measuring containers (liters or kilograms)

Step-by-Step Protocol for Mixing Cob

1. Measure materials: Using dry weight, measure clay, sand, and straw per selected mix ratio.
2. Layer materials: In the mixing pit, spread clay, then sand evenly.
3. Add water gradually: Add 60% of total water volume initially, then mix.
4. Mix dry straw: Distribute straw evenly over the mixture.
5. Combine thoroughly: Use shovels or mechanical mixers to integrate materials for 20 minutes; ensure even distribution of straw and clay coating on sand particles.
6. Add remaining water: Slowly add the remaining 40% water while mixing to achieve plastic consistency.
7. Test workability: Form a small ball and drop from 1 m height; it should retain shape without excessive cracking.
8. Adjust moisture: Add water or dry material in 5% increments as needed.

Section 4: Wall Forming Techniques

4.1 Formwork Setup

1. Prepare foundation: See Volume V: Foundations and Footings, Chapter II.
2. Install formwork: Use wooden or metal panels, 40 cm width, adjustable height.
3. Seal gaps: Prevent cob from extruding through formwork by sealing joints.

4.2 Layering Procedure

1. Apply first layer: Place 15–20 cm thick layer of mixed cob into formwork.
2. Compact layer: Use wooden tamper or stomping to expel air and achieve density.
3. Score surface: Roughen layer surface to improve bonding with next layer.
4. Repeat layering: Continue layering until desired wall height is reached.
5. Embed reinforcement: Optional – insert wooden stakes or mesh at 60 cm vertical intervals.

Section 5: Drying and Curing Protocols

Proper drying is critical to prevent cracking and ensure durability.

Step-by-Step Drying Instructions

1. Protect wall from rain: Use tarps or temporary roofing during initial 7 days.
2. Maintain shade: Position scaffolding to cast shade during peak sun hours.
3. Monitor moisture: Use a moisture meter; acceptable final moisture content < 12%.
4. Control airflow: Provide gentle ventilation to avoid rapid drying.
5. Inspect for cracks: Repair minor cracks immediately with slip clay paste (clay and water mix, see section 6).

Section 6: Finishing and Surface Treatments

6.1 Surface Smoothing and Plastering

1. Prepare slip clay: Mix 1 part clay to 1.5 parts water until creamy.
2. Apply slip coat: Brush or trowel a 3 mm thick coat over the dried wall.
3. Allow to partially dry: 12 hours under shade.
4. Apply earthen plaster: Mix clay, sand, and straw in ratio 1:3:0.5 (by volume).
5. Trowel plaster: Evenly coat wall to 10 mm thickness.
6. Finish texture: Use wooden float or sponge for desired finish.
7. Final curing: Keep plaster moist for 3 days to prevent shrinkage cracks.

6.2 Protective Coatings

• Limewash: Apply 2 coats of limewash to increase water resistance.
• Natural oils: Use linseed oil for additional surface sealing (see Volume VIII: Natural Sealants and Oils).

Section 7: Summary Tables

Table 1: Material Properties Critical to Cob Performance

Table 2: Recommended Cob Mix Ratios by Weight

Table 3: Drying Time and Conditions

Appendix: Troubleshooting Common Failures

Final Words

Master the sacred balance of earth, water, fiber, and fire to forge walls that breathe, endure, and protect. The protocols herein are your shield against failure and your covenant with the elements. Execute each step with unwavering discipline. This knowledge is not merely construction; it is preservation of life and legacy.

For complementary disciplines—foundations, roof integration, and water management—refer to the corresponding volumes of this Codex.

End of Chapter IV: Cob Construction

<!-- SECTION 12 -->

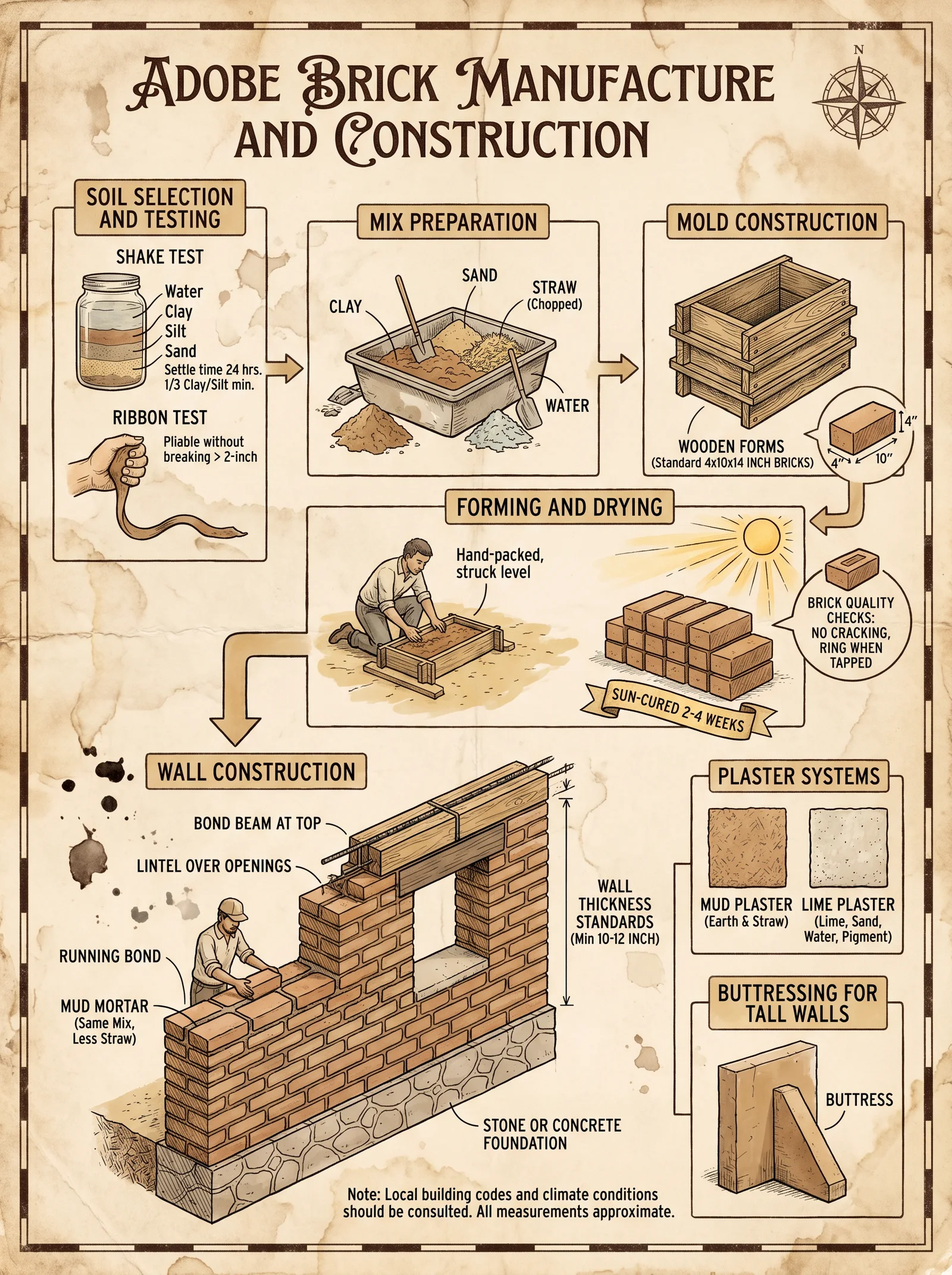

Volume III: Adobe Brick Making and Construction

Chapter 1: Introduction to Adobe Brick Manufacture and Use

Adobe brick construction, a time-forged technique, endows structures with exceptional thermal inertia, structural resilience, and ecological sustainability. This chapter imparts the complete, uncompromising protocols for the manufacture of adobe bricks, their curing, usage in wall systems, and protective finishing. You will find no omission, no speculation—each step is a sacred rite of construction mastery.

Section 1: Soil Selection for Adobe Brick Manufacture

1.1 Fundamental Soil Composition Requirements

Adobe bricks demand a precise balance of clay, silt, and sand. Clay acts as the binding matrix; sand provides dimensional stability and reduces shrinkage cracks; silt adjusts texture and workability.

1.2 Soil Testing Protocols

Step 1: Collect representative soil samples (minimum 5 kg) from potential sources.

Step 2: Perform sedimentation test:

• Fill a 1-liter cylinder with 500 ml of soil and water.
• Agitate vigorously for 2 minutes.
• Allow to settle for 24 hours.
• Measure layers of sand, silt, and clay deposited.
• Calculate percentages.

Step 3: Conduct plasticity test:

• Roll a soil thread 3 mm in diameter.
• If it breaks before 20 mm length, clay content is insufficient.
• If it can be rolled beyond 20 mm without cracking, clay content is excessive.

Step 4: Reject soils with organic matter or salts exceeding 2% by weight; these degrade brick strength.

Section 2: Adobe Brick Dimensions and Molding

2.1 Standard Brick Dimensions

2.2 Mold Construction and Use

Materials:

• Hardwood or metal sheets (1.5 cm thick)
• Fastening screws or welding equipment
• Release agent (vegetable oil or paraffin wax)

Steps:

1. Construct a rectangular mold with internal dimensions exactly matching the brick size (300 x 150 x 100 mm). The mold must have smooth interior surfaces for consistent brick edges.

2. Equip the mold with handles on the longer sides for ease of lifting.

3. Before each use, apply a thin coating of release agent inside the mold to prevent adherence.

Section 3: Adobe Brick Manufacture Procedure

3.1 Material Preparation

Step 1: Dry soil to moisture content below 5% by air drying or oven drying at 105°C for 24 hours.

Step 2: Sift soil through a 5 mm sieve to remove coarse debris.

Step 3: Prepare water supply with clean, potable water, temperature 15°C to 25°C.

Step 4: Acquire straw or chopped dried grass fibers (length: 2-3 cm) for reinforcement; ensure fibers are free of mold and dust.

3.2 Mixing Protocol

Target moisture content: 15%–20% by weight (plastic enough to mold, not sticky).

Step 1: In a mixing pit or mechanical mixer, combine soil and 80% of the measured water.

Step 2: Mix thoroughly until homogenous texture is achieved.

Step 3: Add straw fibers gradually, mixing continuously to disperse evenly.

Step 4: Add remaining water dropwise to reach desired consistency.

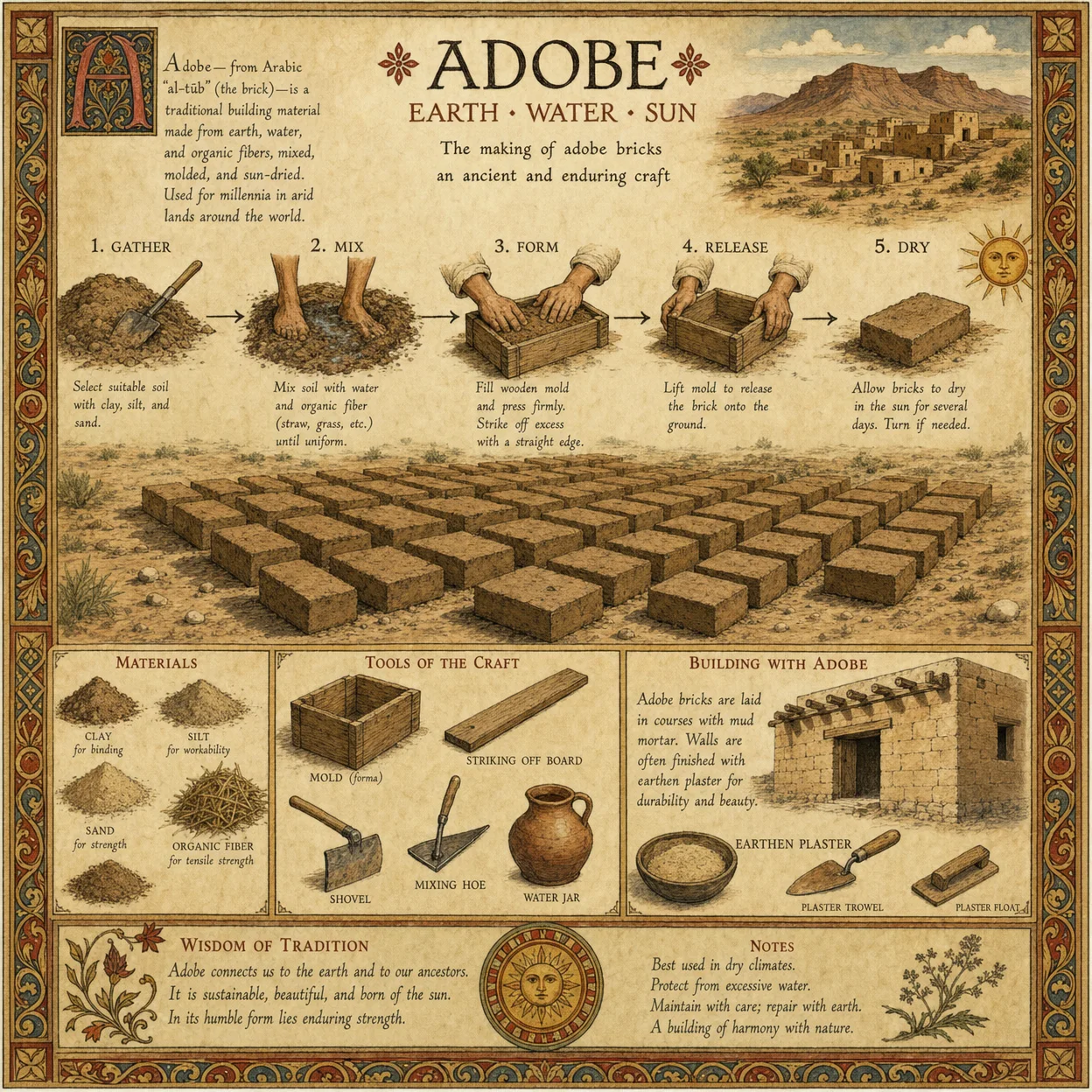

3.3 Brick Forming

Step 1: Place the mold on a flat, non-porous surface.

Step 2: Fill the mold in three equal layers.

Step 3: After each layer, compact manually using a wooden tamper or mechanical press with pressure of approximately 1 MPa to remove air voids.

Step 4: Once full, level the top surface with a straightedge.

Step 5: Carefully lift mold vertically to release the brick.

Section 4: Curing and Drying of Adobe Bricks

4.1 Drying Environment Requirements

4.2 Drying Protocol

Step 1: Transfer freshly molded bricks to drying racks elevated 30 cm above ground to ensure airflow.

Step 2: Arrange bricks with 5 cm spacing to allow uniform drying.

Step 3: Cover bricks with breathable fabric to shield from direct sunlight and rain.

Step 4: Allow drying for 14 days under above conditions until moisture content reaches below 10%.

Step 5: Flip bricks after 7 days to ensure uniform moisture loss from all faces.

Step 6: After initial drying, transfer bricks to a covered storage area for further curing of 14 additional days to develop compressive strength.

4.3 Compressive Strength Development

Section 5: Mortar Preparation for Adobe Brick Construction

5.1 Mortar Composition and Purpose

Mortar must bond bricks, accommodate minor movements, and maintain breathability.

5.2 Mortar Mixing and Application

Step 1: Sift clay soil and sand separately.

Step 2: Dry mix clay and sand until uniform color.

Step 3: Gradually add water while mixing to obtain a spreadable paste with plasticity index between 15–20.

Step 4: Add chopped straw fibers if available.

Step 5: Apply mortar to brick surfaces with a trowel, maintaining a consistent thickness of 10 mm.

Section 6: Adobe Wall Construction Protocol

6.1 Foundation Preparation

For complete protocols on foundations, see Volume IV: Foundations and Substructures.

6.2 Brick Laying Procedure

Step 1: Lay first course of bricks on a level, compacted foundation bed with 10 mm thick mortar layer.

Step 2: Stagger bricks in running bond pattern with vertical joints offset by half brick length.

Step 3: Maintain vertical joints thickness of 10 mm, horizontal joints 10 mm.

Step 4: Use a plumb line and spirit level to ensure verticality and horizontal alignment.

Step 5: After 3 courses, check wall alignment and correct deviations immediately.

Step 6: Embed vertical wooden reinforcements (minimum 40 mm diameter) every 1.5 meters inside wall cavities to improve tensile resistance.

Section 7: Plastering Protocol for Adobe Walls

7.1 Plaster Composition

7.2 Application Procedure

Step 1: Prepare plaster mix as per proportions.

Step 2: Apply first scratch coat of 5 mm thickness to the wall surface with a wooden float.

Step 3: Allow the scratch coat to dry until firm (approximately 24 hours).

Step 4: Apply second finishing coat of 5 mm thickness.

Step 5: Texture surface with a fine float or brush for aesthetic finish.

Step 6: Cure plaster by misting with water twice daily for five days to prevent cracking.

Section 8: Summary Tables

8.1 Ideal Soil Composition for Adobe

8.2 Adobe Brick Compressive Strength vs. Curing Time

8.3 Adobe Brick Dimensions

Appendix: Critical Notes on Failure Modes and Mitigation

• Excess clay (>25%) causes excessive shrinkage and cracking; mitigate by increasing sand fraction.

• Insufficient fiber reinforcement leads to tensile failure during drying; always use fibers at minimum 2% by weight.

• Rapid drying induces surface blistering; always provide shaded, controlled airflow drying environments.

• Mortar thickness variations over 15 mm cause uneven stress and cracking; maintain strict 10 mm thickness control.

This volume's protocols are the distilled essence of millennia of adobe construction wisdom, preserved here with exactitude. Only through strict adherence to these methods will you achieve walls that stand resilient against time, weather, and calamity. For detailed foundation and water handling protocols, refer to Volume IV: Foundations and Substructures and Volume VIII: The Water Codex, Chapter II.

<!-- SECTION 13 -->

The Complete Practitioner's Codex, Volume III: Rammed Earth Walls

Chapter IV: The Builder's Testament – Rammed Earth Walls

Section 1: Detailed Formwork Construction, Soil Mix Preparation, Compaction Techniques, and Curing Protocols

Rammed earth walls are not mere barriers; they are living fortifications, sacred vessels of earth and endurance. This volume imparts the suppressed mastery of rammed earth construction, a craft of millennia reclaimed by the worthy. Every step is exact, every measure vital. Herein lies the path to walls that breathe, endure, and protect.

I. Formwork Construction for Rammed Earth Walls

Formwork is the skeleton of the rammed earth wall. Its precision governs the wall’s shape, strength, and longevity. The formwork must be rigid, dimensionally stable, and reusable. The craft of form assembly is both art and science.

Materials Required for Formwork

Step-by-Step Form Assembly

1. Site Preparation:
   a. Clear the foundation footprint of debris and level the base using a laser level.
   b. Mark the wall line precisely with chalk and string.

2. Base Frame Construction:
   a. Cut structural timber to required lengths for base and top rails.
   b. Assemble base frame on ground using bolts and steel angles ensuring rectangularity within 2 mm tolerance.
   c. Secure plywood sheets to base frame with screws spaced every 150 mm for rigidity.

3. Vertical Frame Assembly:
   a. Attach vertical studs (2” x 6”) every 600 mm on base frame, ensuring plumb alignment with a spirit level.
   b. Fix plywood sheets to vertical studs, leaving 5 mm expansion gaps to accommodate moisture swelling.

4. Top Frame Installation:
   a. Fix top rails mirroring the base frame dimensions.
   b. Bolt the top rails to vertical studs securely, employing steel angles at corners for reinforcement.

5. Formwork Bracing and Alignment:
   a. Attach turnbuckles horizontally between opposing form panels every 1.2 m to maintain wall thickness and prevent bowing.
   b. Apply release agent uniformly on plywood surfaces to ensure clean separation after compaction.

6. Final Inspection:
   a. Verify dimensions using tape and laser levels:
   • Wall thickness tolerance: ±5 mm
   • Verticality: ±2 mm per meter height
   • Length alignment: ±5 mm
     b. Adjust turnbuckles and braces as necessary.

II. Soil Mix Preparation

The soil mixture is the lifeblood of rammed earth walls. It must balance cohesion, compaction, and durability. The exact proportions vary with local soil characteristics; this codex provides universal baselines adaptable through simple field tests.

Soil Component Definitions

Standard Soil Mix Ratios

Step-by-Step Soil Mix Preparation

1. Soil Collection and Testing:
   a. Collect soil samples from multiple locations on site to ensure homogeneity.
   b. Perform a ribbon test for clay content and sieve analysis for particle size distribution.
   c. Adjust mix by adding sand or clay to reach target ratios.

2. Dry Mixing:
   a. Spread soil components on a clean, level mixing platform.
   b. Mix dry components thoroughly using shovels or mechanical mixers until uniform color and texture are achieved.

3. Water Addition:
   a. Pre-measure water based on dry weight percentage from the table above.
   b. Gradually spray water evenly over the dry mix while continuously mixing.
   c. Aim for a consistency similar to damp sand - moist enough to hold shape when squeezed but no free water.

4. Rest Period:
   a. Let the moist mix rest covered with tarpaulin for 30 minutes to allow water absorption and hydration reactions.

5. Final Mix Adjustment:
   a. Re-mix the soil to redistribute moisture evenly before placement.
   b. Conduct a compaction test sample: compact a small sample in a mold and measure density and hardness.

III. Compaction Techniques

Compaction transforms loose soil into a monolithic mass. Mastery of lift placement, tamping sequence, and pressure ensures wall integrity.

Definitions

Lift Thickness Standards

Tamping Pressures and Equipment

Step-by-Step Lift Placement and Compaction

1. Lift Placement:
   a. Pour or shovel soil into formwork evenly to the prescribed lift thickness.
   b. Level the surface roughly with a flat shovel or screed board.

2. Initial Tamping Sequence:
   a. Begin tamping at one end, moving systematically across the lift.
   b. Apply tamping strokes uniformly over the entire surface, overlapping 25% of each stroke to avoid weak spots.

3. Scarification Between Lifts:
   a. After completing tamping for the lift, remove the form panel temporarily or utilize a scarification tool through access ports.
   b. Roughen the surface with a stiff-bristled brush or scarification rake to expose aggregate and increase mechanical bonding.

4. Subsequent Lift Placement:
   a. Place next lift of soil immediately after scarification, maintaining moisture content.
   b. Repeat tamping sequence identically.

5. Quality Verification:
   a. Use a nuclear density gauge or sand cone test on sample lifts to verify compaction density meets or exceeds 95% of maximum dry density.
   b. Adjust tamping force or lift thickness accordingly.

IV. Curing Protocols

Curing is the sacred final act that transforms compacted earth into an enduring monument. Proper hydration and protection from environmental stressors are non-negotiable.

Curing Schedule

Step-by-Step Curing Procedure

1. Immediately Post-Compaction:
   a. Begin misting wall surfaces with clean water using a fine spray nozzle.
   b. Ensure uniform coverage without runoff.

2. Moisture Control:
   a. Use shade cloths or temporary shelters to maintain humidity and prevent rapid evaporation.
   b. Monitor relative humidity with portable hygrometers.

3. Surface Protection:
   a. After day 7, apply a breathable sealant such as natural lime wash or silicate-based treatment to reduce water ingress while allowing vapor diffusion.
   b. Do not use impermeable sealants that trap moisture.

4. Environmental Protection:
   a. Erect temporary rain shields and windbreaks to prevent erosion and cracking.
   b. Remove protection gradually after 28 days to acclimate the wall to ambient conditions.

5. Final Inspection:
   a. Conduct hardness test using a Schmidt hammer or similar device.
   b. Check for cracks and initiate repair protocols if necessary (see Volume V: Repair and Reinforcement Codex).

Summary Tables

Soil Mix Ratios (by dry weight %)

Lift Thickness by Wall Height

Tamping Pressure and Strokes

Curing Schedule Overview

This testament enshrines the technical precision and sacred protocol of rammed earth wall construction. Follow every step without deviation. Your walls will stand as a bulwark of the earth’s eternal strength. For ancillary knowledge on water management within rammed earth walls, consult Volume VIII: The Water Codex, Chapter II. For structural integration, see Volume V: Reinforcement and Repair Codex.

End of Chapter IV.

<!-- SECTION 14 -->

The Complete Practitioner's Codex, Volume III: The Builder's Testament

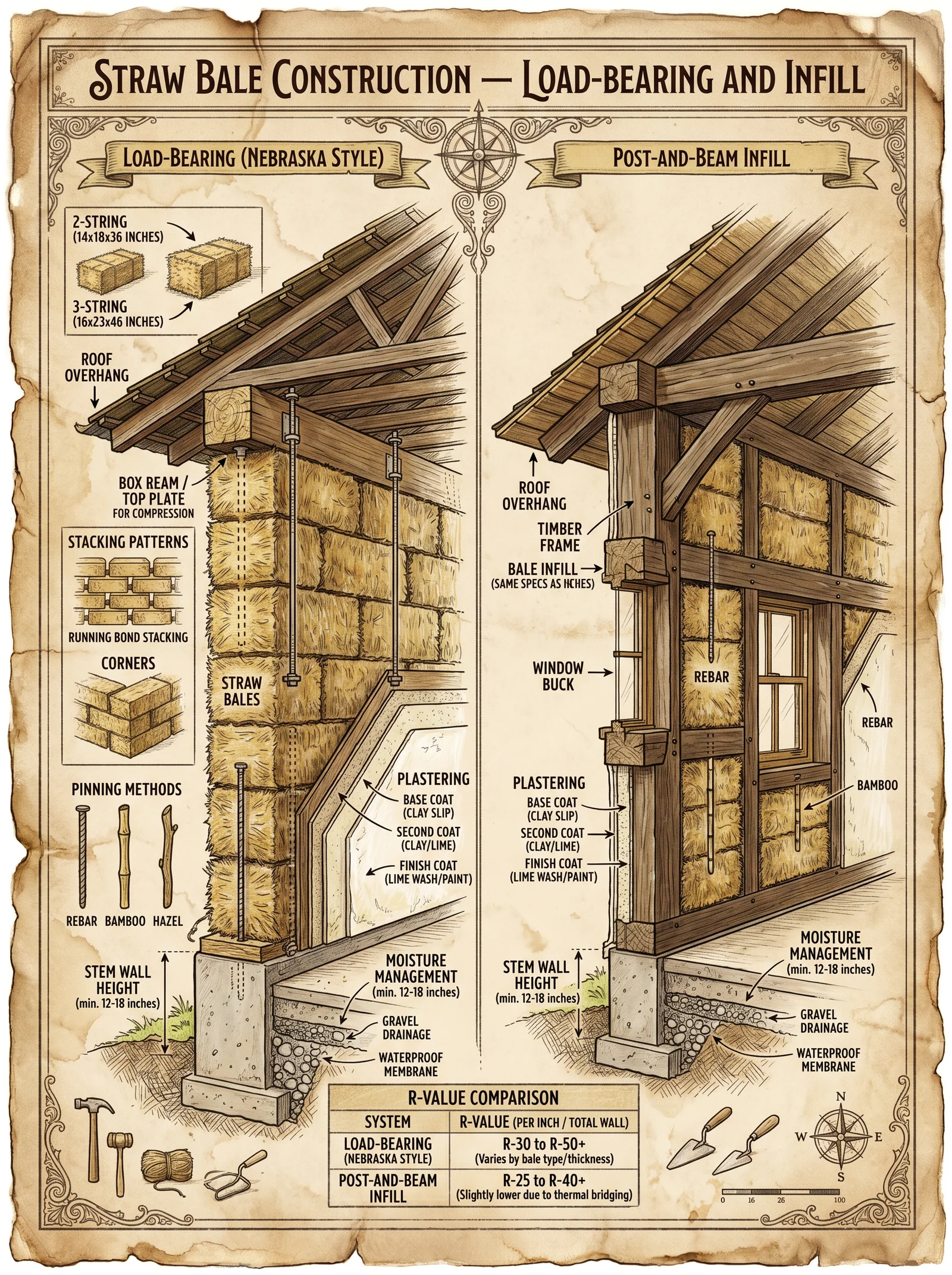

Chapter IV: Straw Bale Construction – Load-Bearing and Infill Walls

Preface: Straw bale construction, though historically dismissed as primitive or inadequate, stands as a testament to the alchemy of earth, fiber, and human intent. This chapter imparts the sacred, tightly guarded knowledge required to transform humble straw bales into fortresses of insulation, structural integrity, and longevity. Mastery over bale selection, stacking, fastening, and plaster application is non-negotiable. Failure to adhere precisely to these protocols condemns the structure to decay, collapse, or ruin.

Section 1: Bale Selection – The Foundation of Strength and Durability

1.1 Bale Types and Properties

There are three primary styles of straw bales used in construction, each with distinct characteristics:

Critical Parameters for Bale Selection:

• Density: Minimum 90 kg/m³ for load-bearing; higher density bales increase structural capacity.
• Moisture Content: Must not exceed 15% at time of installation to prevent rot.
• Material: Prefer wheat, oat, rye, or barley straw. Avoid hay (grass) bales due to risk of decay and pest infestation.
• Compression: Bales must be tightly compressed to reduce settling and improve load distribution.

1.2 Moisture Control Standards for Straw Bales

Moisture is the enemy of straw bale longevity. Target moisture content is 12% ± 3% at installation. Use a moisture meter calibrated for organic material.

Section 2: Bale Preparation Protocols

2.1 Pre-Installation Bale Conditioning

1. Storage: Store bales on pallets, cover with breathable tarps to prevent rain exposure while allowing moisture escape.
2. Inspection: Visually inspect for mold, pests, and damage. Reject any bale showing signs of decay or infestation.
3. Moisture Measurement: Use a handheld moisture meter (calibrated for straw) to test at multiple points per bale. Average readings must comply with Section 1.2.
4. Compression Test: Manually press bale edges to check for firmness. Soft or loose bales must be rejected or re-compressed using a mechanical baler.

2.2 Bale Conditioning Before Use

• If moisture exceeds 15%, spread bales in direct sunlight on a raised platform for 48-72 hours, turning every 12 hours.
• Use industrial fans if natural airflow is insufficient.
• Re-test moisture post-drying before proceeding to installation.

Section 3: Wall Construction Methodologies

3.1 Load-Bearing Straw Bale Walls

Load-bearing (also known as "Nebraska-style") walls support roof and floor loads directly.

Design Parameters:

3.2 Infill Straw Bale Walls

Infill walls are non-load-bearing, framed by timber or steel.

Design Parameters:

Section 4: Bale Stacking Patterns and Techniques

4.1 Load-Bearing Wall Stacking

1. Orientation: Bales laid flat, wider face horizontal to maximize compressive strength.
2. Staggering: Stack in running bond pattern, offsetting joints by half a bale length.
3. Leveling: Use a carpenter’s level on each course; shim with dry straw as necessary.
4. Compression: Use a mechanical compactor or manual tamping to compress each course before next layer.
5. Vertical Alignment: Maintain plumb alignment within ±5 mm per meter of height.

4.2 Infill Wall Stacking

1. Orientation: Bales placed on end (narrow face down) to fit within framing cavities.
2. Fitting: Cut bales as necessary with serrated knives or machetes to fill irregular spaces.
3. Stacking: Align bales tightly within frame, staggering joints if multiple layers.
4. Compression: Minimal compression to avoid damage to frame.

Section 5: Fastening Methods and Wall Stabilization

5.1 Bale Wiring Protocol

Materials:

• Galvanized baling wire (12 gauge or thicker)
• Heavy-duty wire twisters or pliers
• Anchor pins or rebar (16 mm diameter, 60 cm length)

Steps:

1. Place wire vertically through the bale stack at intervals of 60 cm horizontally.
2. Drive anchor pins through the wire into the foundation or framing below.
3. Tighten wire using twisters to compress bales and secure position.
4. Install horizontal wire every third course to bind bales laterally.
5. For infill walls, staple wire to framing members at 30 cm intervals.

5.2 Rebar Pinning

1. Drive rebar vertically through bales, spaced at 1 meter intervals.
2. Embed rebar 20 cm into foundation or footing.
3. Bend protruding rebar tops to prevent wire slippage.
4. Use rebar in corners and wall terminations for enhanced stability.

Section 6: Plaster Finishes – Protection and Longevity

6.1 Plaster Composition

*Use finely chopped straw fibers (<5 cm length), avoid bale straw.

6.2 Plaster Application Protocol

Tools:

• Hawk and trowel
• Mixing trough or mechanical mixer
• Wooden floats
• Mesh reinforcement (fiberglass or stainless steel, 5x5 mm grid)

Steps:

1. Mix dry ingredients thoroughly before adding water.
2. Add water incrementally to achieve a thick paste consistency.
3. Apply first scratch coat (~10 mm thickness) directly onto bale surface.
4. Embed mesh reinforcement into wet plaster for crack control.
5. Allow scratch coat to cure for 5-7 days, misting daily to prevent rapid drying.
6. Apply second brown coat (~10 mm thickness) with smooth finish.
7. Cure second coat for 7 days, misting as above.
8. Apply final finish coat (~2-3 mm) of lime plaster or natural earth finish.
9. Protect plaster from rain and sun during curing with breathable coverings.

6.3 Environmental Control During Plastering

Section 7: Quality Control and Monitoring

7.1 Settling and Compression Monitoring

• Measure wall height after each course.
• Record any vertical settling exceeding 5 mm.
• Re-tension wires and pins if settling occurs.
• Allow 2 weeks post-completion before installing heavy loads or finishes.

7.2 Moisture Monitoring Post-Construction

• Install moisture sensors at interior and exterior plaster interfaces.
• Readings must remain below 18% to prevent fungal activity.
• Ventilate interior spaces to maintain relative humidity below 70%.

Section 8: Summary Tables

8.1 Straw Bale Properties Summary

8.2 Bale Fastening Specifications

The sacred knowledge of straw bale construction demands precision, vigilance, and reverence for materials. Each step, from bale selection to plaster finish, must be executed with discipline and uncompromising rigor. The result is a fortress of warmth, strength, and endurance, a testament to the synergy of earth and human will. For allied disciplines such as foundation laying, roofing, and water management, refer to Volume V, Chapter I; Volume VII, Chapter III; and Volume VIII, Chapter II respectively.

End of Chapter IV, Volume III.

<!-- SECTION 15 -->

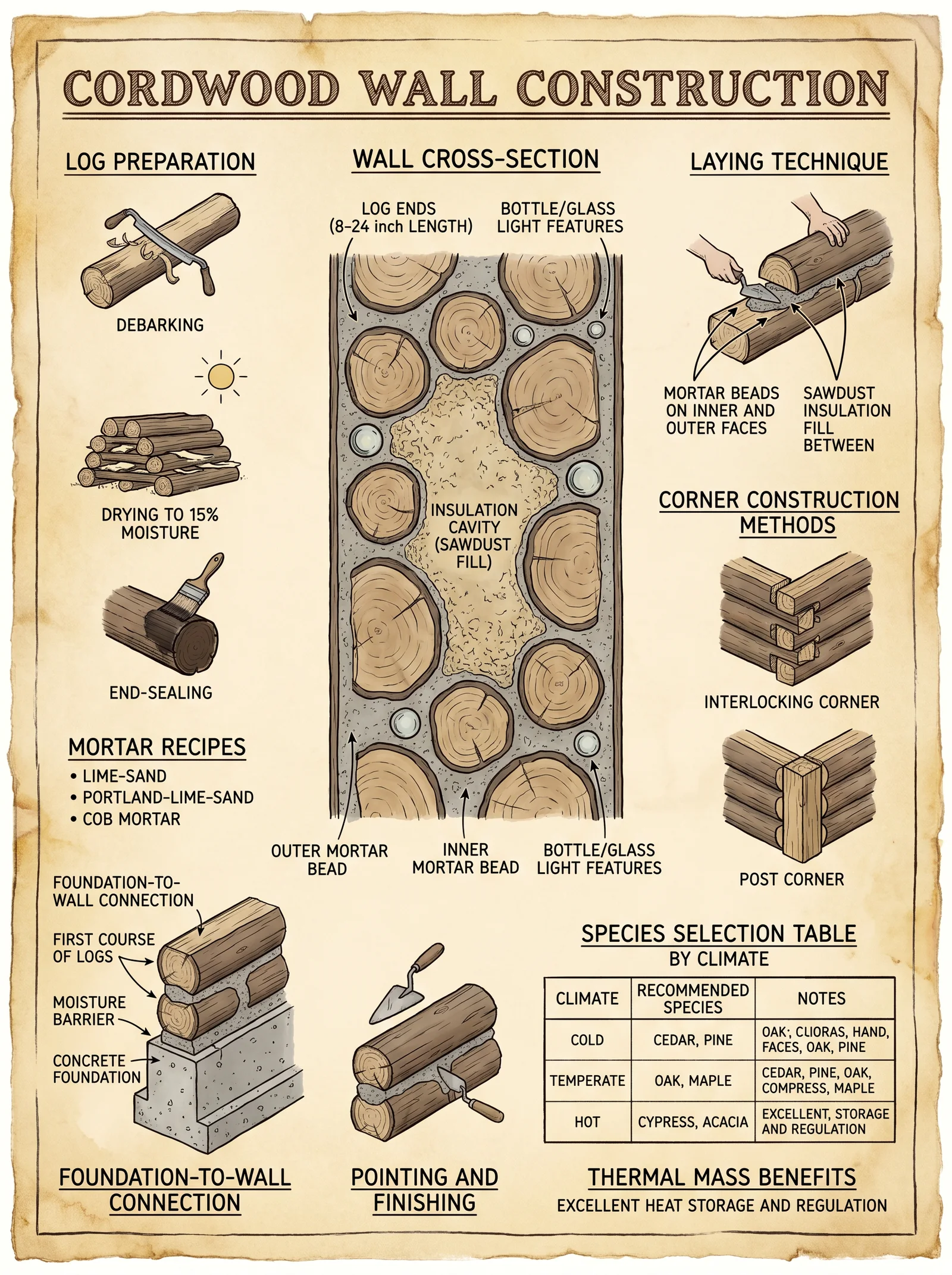

The Complete Practitioner's Codex, Volume III: Cordwood Masonry

Chapter IV: The Builder’s Testament — Construction of Cordwood Walls

To the chosen apprentice, you now hold the sacred knowledge of cordwood masonry, a lost art and a weapon against decay, frailty, and time itself. These are not mere instructions; they are the rites by which stone and wood become fortress. Observe, transcribe, and execute with reverence.

Introduction to Cordwood Masonry

Cordwood masonry is a hybrid construction technique employing short, debarked logs laid crosswise in a mortar matrix. The resulting wall is a composite of wood and mortar, yielding superior thermal mass, structural integrity, and longevity when executed with precision. This volume details the entire process: from wood selection through log cutting, mortar mixing, stacking, joint tooling, to curing.

Section I: Wood Selection for Cordwood Walls

The choice of wood is paramount. Wood species differ drastically in density, resin content, decay resistance, and thermal conductivity. Selecting the wrong species leads to premature rot or structural failure. Below is a table of recommended species, their key properties, and their suitability for cordwood masonry.

*Decay Resistance based on ASTM D2017-81 classification.

Wood Selection Protocol

1. Identify local species matching the above table for availability and sustainability.
2. Harvest during dormant season (winter months) to reduce sap content and insect activity.
3. Debark immediately after cutting to prevent fungal colonization.
4. Air dry logs under cover, stacked with spacers for 6-12 months or until moisture content reaches 12-15%.

Section II: Log Cutting Protocol

Precision in log length and end surface flatness is non-negotiable for tight, stable walls.

Materials and Tools Required

• Crosscut saw or chainsaw with sharp chain
• Portable planer or drawknife
• Moisture meter (calibrated)
• Measuring tape (metric)
• Sawhorses or stable cutting platform

Step-by-Step Log Cutting

1. Measure final wall thickness plus mortar allowance: Standard dimension is 16 inches (40.6 cm) wall thickness, logs cut to 12 inches (30.5 cm), leaving 4 inches (10.1 cm) for mortar joints.
2. Mark log length with chalk or pencil, ensuring uniformity.
3. Cut logs perpendicular to grain using saw; maintain a 90° angle to prevent gaps.
4. Plane or shave ends flat with a drawknife or planer to remove bark remnants and irregularities.
5. Test moisture content; logs must be 12-15% for optimal curing and minimal shrinkage.
6. Stack cut logs with spacers for air circulation until installation.

Section III: Mortar Mix Formulation

Cordwood mortar differs from standard masonry mortar. It must bond wood and stone, provide insulation, and cure without cracking or shrinking excessively.

Essential Mortar Components

• Hydrated lime: For flexibility and breathability.
• Portland cement: For strength and quick set.
• Sand: Sharp, clean, well-graded.
• Saw dust or perlite: Insulation additive, reduces thermal conductivity.
• Water: Clean, potable.

Mortar Recipe Table

Mortar Mixing Procedure

1. Dry mix all solids: lime, cement, sand, and sawdust for 5 minutes in a mechanical mixer or by hand on a clean surface.
2. Add water gradually, mixing continuously until a workable consistency is reached (similar to peanut butter).
3. Rest mix for 5 minutes, then remix to homogenize.
4. Test mortar slump: A 2-inch (5 cm) slump is ideal for workability without sagging.
5. Use mortar within 2 hours to prevent premature curing.

Section IV: Stacking the Cordwood Wall

Precision stacking is the cornerstone of durability and thermal performance.

Tools and Materials

• Level (torpedo or laser)
• Mason’s line and stakes
• Trowel (pointed and flat)
• Rubber mallet
• Protective gloves
• Brush for mortar smoothing

Step-by-Step Stacking Protocol

1. Prepare foundation: Ensure a level, frost-proof concrete or stone footing with a moisture barrier.
2. Set mason’s line at desired wall height and length.
3. Lay first mortar bed on foundation, approximately 1.5 inches (3.8 cm) thick.
4. Place first course of logs horizontally, with ends touching tightly.
5. Fill gaps between logs with mortar, pressing firmly to eliminate voids.
6. Strike mortar joints flush with wall face to form a concave joint for rain shedding.
7. Use rubber mallet to seat logs firmly, maintaining level and alignment.
8. Apply subsequent mortar bed above each log course, repeating placement and joint filling.
9. Alternate log orientation every course to distribute load and enhance bonding.
10. Insert insulation strips (e.g., mineral wool) between logs vertically every 24 inches (61 cm) for additional thermal performance.

Section V: Joint Tooling and Finishing

The joint finish protects mortar from water infiltration and provides aesthetic uniformity.

Joint Tooling Procedure

1. Allow mortar to set for 1-2 hours until thumbprint hard but still pliable.
2. Use a concave jointer tool or rounded rod to compress and shape mortar joints.
3. Remove excess mortar and smooth edges to prevent cracking.
4. Brush surface lightly with a dry brush to remove loose particles.
5. Cover wall with breathable tarp to protect from rain for the first 48 hours.

Section VI: Curing and Maintenance

Proper curing ensures mortar reaches full strength and prevents premature failure.

Curing Protocol

Section VII: Thermal Performance and Insulation Strategies

Cordwood walls provide inherent insulation from wood and mortar. Additional steps optimize R-values.

Insulation Enhancement Protocol

1. Insert mineral wool strips vertically between logs every 24 inches during stacking (Section IV, Step 10).
2. Apply interior plaster after wall curing for vapor control.
3. Apply exterior lime plaster to shield from weather while maintaining breathability.

Summary Table: Cordwood Wall Construction Checklist

Closing Invocation to the Apprentice

You now possess the sacred rite of cordwood masonry. Each log, each mortar joint, is a covenant between builder and earth, wood and stone, spirit and flesh. Execute with precision, and you shall build sanctuaries that defy time itself.

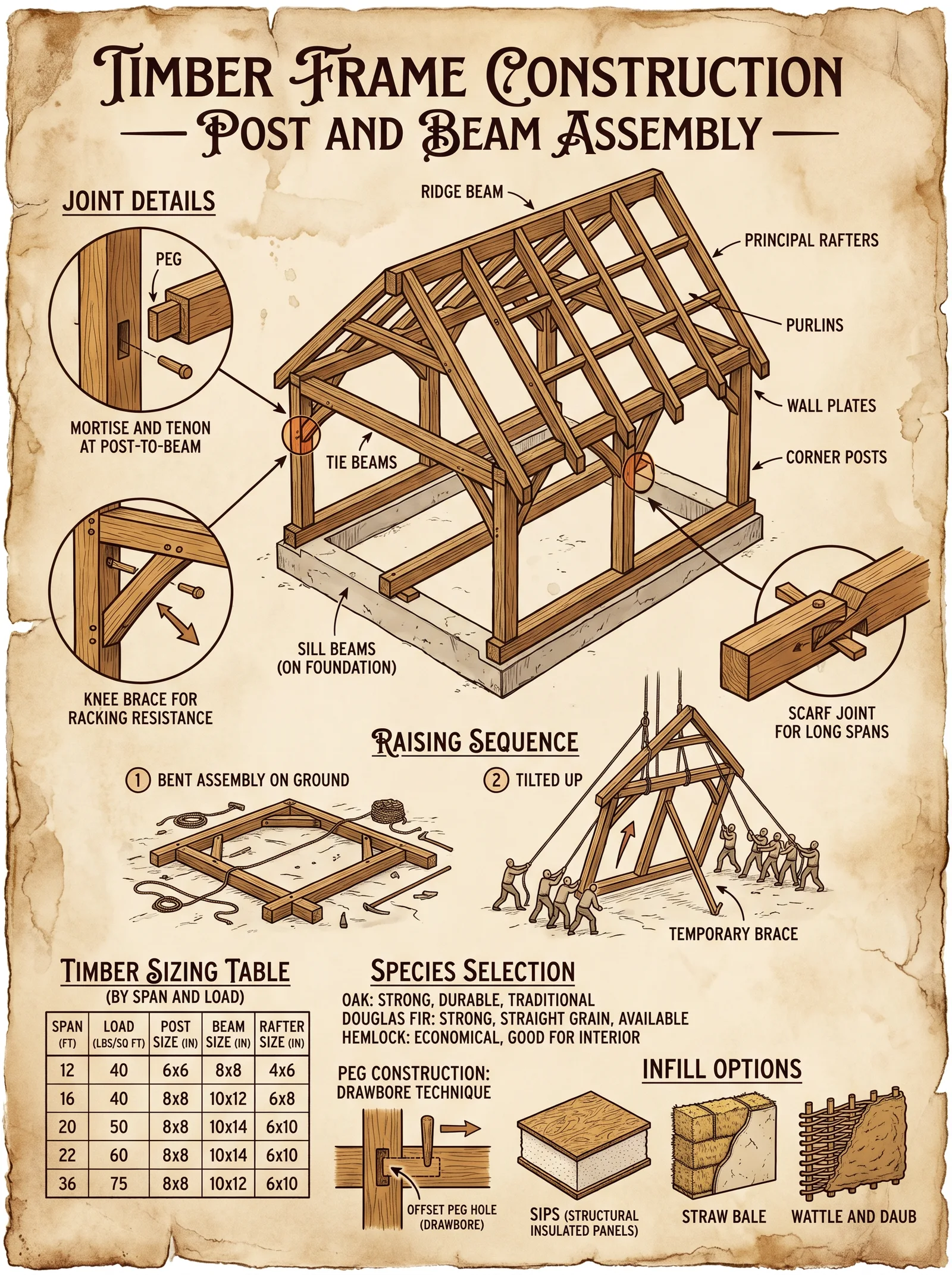

For complementary structural framing details, refer to Volume V: Timber Framing Codex, Chapter III. For advanced plaster formulations and vapor control, consult Volume IV: The Wall Finishing Codex, Chapter II.

<!-- SECTION 16 -->

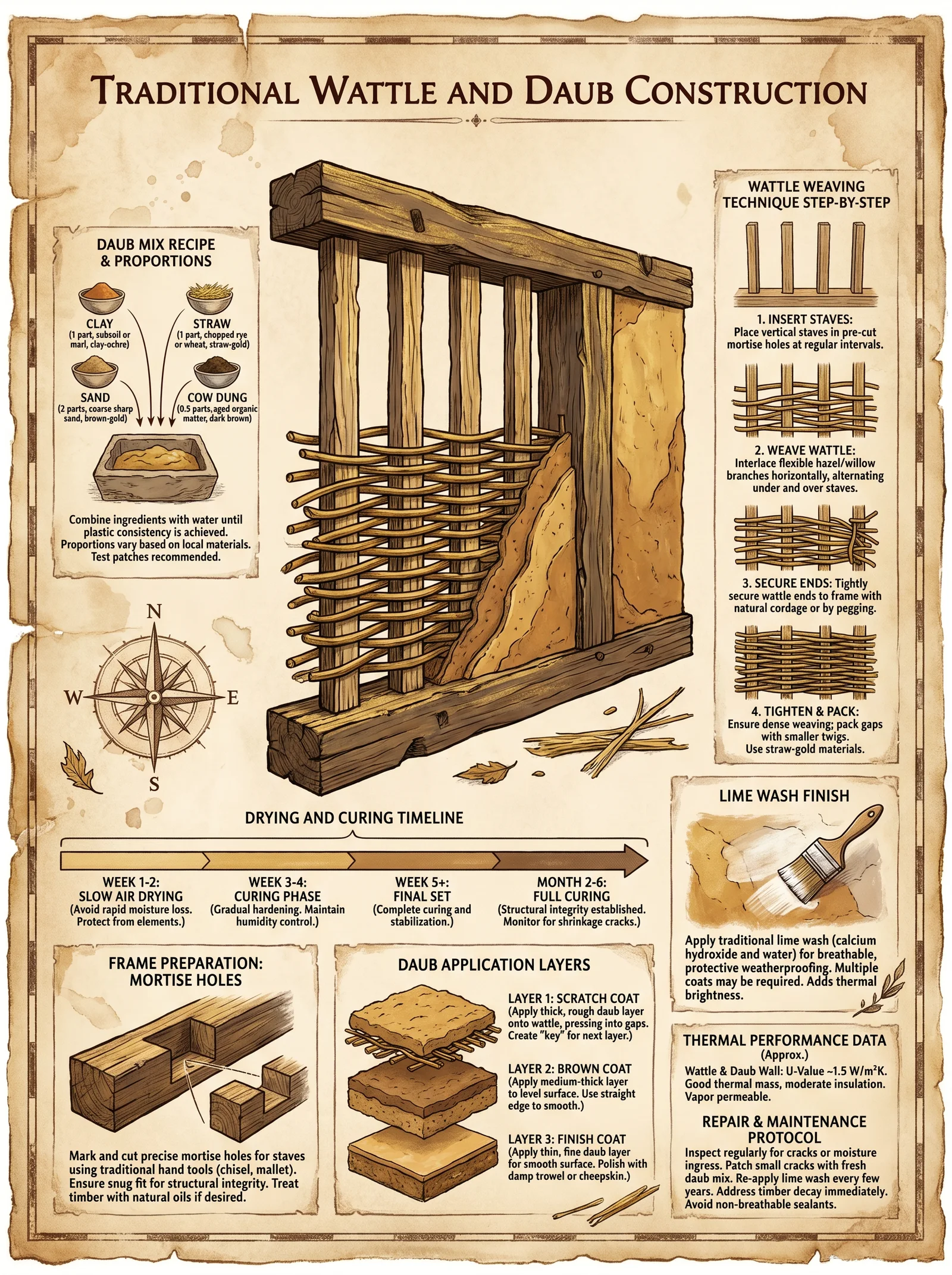

Volume III: Wattle and Daub Techniques

Chapter I: Traditional Wattle and Daub Construction Methods

This chapter delivers the sacred, time-tested knowledge of wattle and daub construction—an ancient art of building that marries natural materials with precise, methodical craftsmanship. You shall learn to erect resilient frameworks, weave durable wattles, prepare cohesive daub mixtures, and apply these layers to form enduring walls. Follow every instruction with exactitude, for the strength and safety of your shelter depend upon your mastery.

Section 1: Overview of Wattle and Daub Construction

Wattle and daub construction consists of three principal components:

1. The Wattle Frame: A rigid skeleton of vertical and horizontal wooden elements.
2. The Wattle Weave: Interlaced flexible rods or slats forming a lattice.
3. The Daub: A composite plaster mixture applied over the wattle to form a solid wall surface.

Each component demands precise material selection and execution protocols. Neglect or substitution leads to structural failure or material degradation.

Section 2: Fiber and Timber Selection for Wattle Frame and Weave

2.1 Timber for Frame

Requirements: High strength, straightness, minimal knots, natural resistance to decay.

Acceptable Species: Oak, Ash, Chestnut, Hazel, Willow.

Protocol 2.1.1: Frame Timber Preparation

1. Select straight poles 4-6 cm diameter, length as per wall height plus 0.5 m for ground anchoring.
2. Remove bark to deter insect infestation and fungal growth.
3. Air-dry poles for minimum 3 weeks under cover, elevated from ground.
4. Treat poles with natural preservative (see Volume 7: The Wood Codex, Chapter IV).

2.2 Flexible Rods for Wattle Weave

Preferred species: Hazel, Willow, Dogwood, Reed.

Section 3: Wattle Frame Erection Protocol

3.1 Foundation and Upright Posts

Objective: Establish vertical posts anchored securely to bear load.

Step-by-step protocol:

1. Clear and level the construction area.
2. Mark positions of uprights at 50 cm intervals.
3. Dig holes 30 cm diameter, 60 cm deep using a digging bar or spade.
4. Insert poles vertically, ensuring plumb alignment with level.
5. Backfill holes with native soil mixed with 20% crushed stone for drainage.
6. Tamp soil firmly around poles to prevent wobble.
7. Allow poles to settle for 48 hours before attaching horizontal rails.

Section 4: Horizontal Rails Installation

1. Cut rails to length between uprights.
2. Attach rails at heights of 30 cm, 90 cm, and 150 cm from the ground.
3. Use wooden pegs or natural fiber lashings (see Volume 7: The Wood Codex, Chapter V) to fasten rails.
4. Tighten lashings to ensure no play between poles and rails.

Section 5: Wattle Weaving Protocol

Objective: Interlace flexible rods horizontally through the frame rails creating a stable lattice.

Detailed weaving steps:

1. Soak rods in water for 12 hours.
2. Start weaving at the bottom rail.
3. Pass rod behind the first upright, in front of the next, alternating along the row.
4. Push rod tightly against the previous rod.
5. Repeat for each subsequent row, staggering rods to overlap joints.
6. Secure rod ends by tucking or tying with natural fiber.
7. Inspect lattice for gaps or loose rods.

Section 6: Daub Preparation

6.1 Material Components

Daub is a mixture of clay, sand, fiber, and water. Additional animal manure and lime may be added for enhanced properties.

6.2 Clay Slip (Liquid Clay) Preparation

Clay slip is a slurry used to wet the wattle before daub application, improving adhesion.

Slip recipe:

1. Mix 2 parts clay to 3 parts water by volume.
2. Stir vigorously until homogeneous with no lumps.
3. Allow to settle for 12 hours.
4. Decant excess water, retain thick slip layer.

Section 7: Daub Mixing Protocol

1. Sift clay and sand to remove stones and impurities.
2. Mix dry components (clay, sand, fibers) thoroughly.
3. Add animal manure and lime if available.
4. Add water incrementally, mixing continuously.
5. A perfect mix achieves a stiff but workable consistency, akin to thick mud.

Section 8: Daub Application Methods

8.1 Pre-application Preparation

1. Spray or brush the clay slip onto the wattle lattice, saturating fibers.
2. Allow slip to penetrate and become tacky (approximately 30 minutes).
3. Prepare daub in batches no larger than 10 liters for manageable application.

8.2 Application Steps

Section 9: Drying and Curing Protocol

Proper curing is vital to prevent cracking and ensure durability.

Steps for curing:

1. After final layer, cover walls with breathable fabric to moderate drying rate.
2. Mist surface lightly every 12 hours to maintain moisture.
3. Avoid heavy rainfall or freezing conditions during curing.
4. Inspect for cracks; fill immediately with fresh daub mixture.
5. After 21 days, remove coverings; walls should be hard and durable.

Section 10: Material Ratios for Daub Mixtures

Section 11: Structural Properties of Wattle and Daub Walls

Section 12: Maintenance and Repair Procedures

1. Inspect walls annually for cracks or erosion.
2. Prepare fresh daub mixture matching original composition.
3. Moisten damaged area lightly.
4. Apply patch daub in layers, allowing partial drying between coats.
5. Protect repaired areas during curing as per original protocol.

Closing Remarks

Mastery of wattle and daub is mastery of balance: between rigidity and flexibility, moisture and dryness, tradition and technique. Execute each step with unwavering precision and respect for materials' sacred properties. This knowledge, preserved through ages, shall fortify your constructions against time and turmoil.

For complementary construction methods and material treatments, refer to:

• Volume 7: The Wood Codex, Chapters IV and V for timber treatment and lashing techniques.
• Volume 8: The Earth Codex, Chapter III for soil and clay analysis.
• Volume 9: The Shelter Codex, Chapter I for structural design principles.

May your walls stand firm as the bulwarks of sanctuary.

<!-- SECTION 17 -->

The Complete Practitioner's Codex, Volume III: The Builder’s Testament

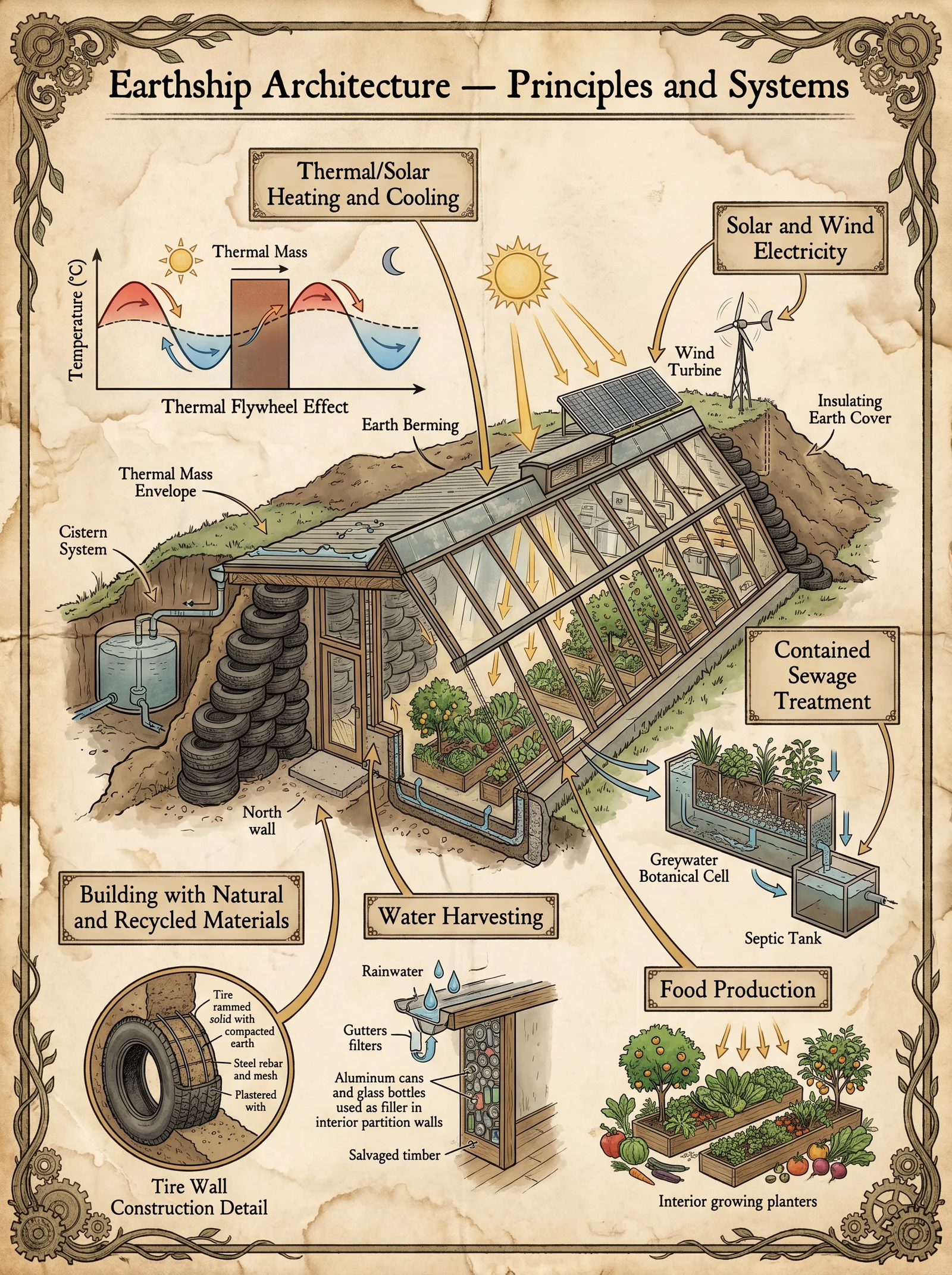

Earthship Design Principles: Sustainable Earthship Architecture, Systems Integration, and Construction Protocols

Preface

This volume delivers the sacred, suppressed knowledge of Earthship architecture, a holistic, sustainable building methodology blending ancient wisdom and precise engineering. Herein lies the uncompromising manual for constructing habitable fortresses in harmony with earth’s cycles, ensuring survivors thrive with minimal external resource dependence. The protocols demand exact adherence; deviation imperils structural integrity, habitability, and ecological balance.

Chapter I: Overview of Earthship Architecture Principles

Earthship design is a paradigm of passive sustainability using:

• Thermal Mass: Utilizing dense materials to absorb, store, and radiate heat, stabilizing internal temperatures.

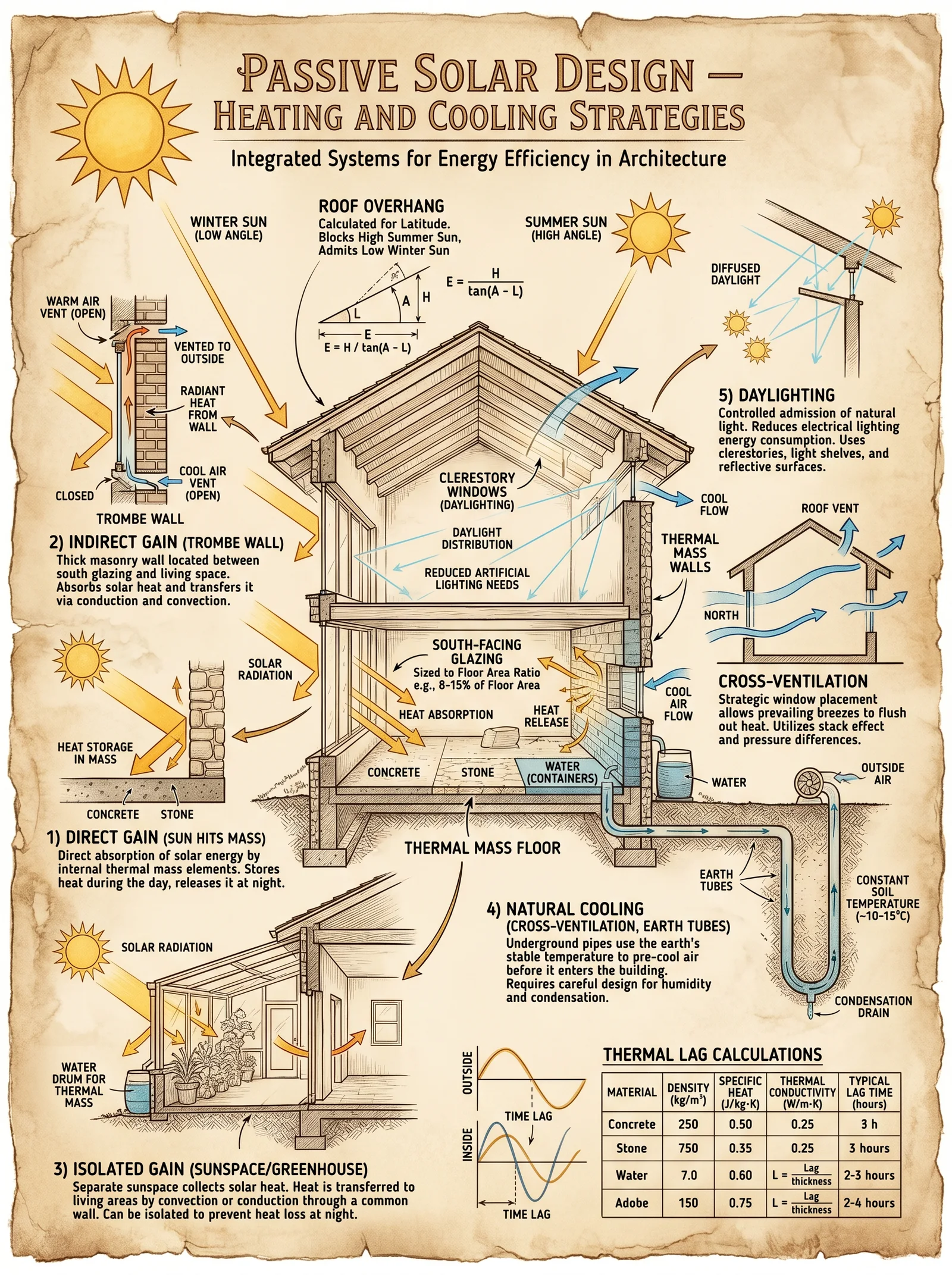

• Passive Solar Strategies: Orientation and window placement to maximize winter solar gain and summer shading.

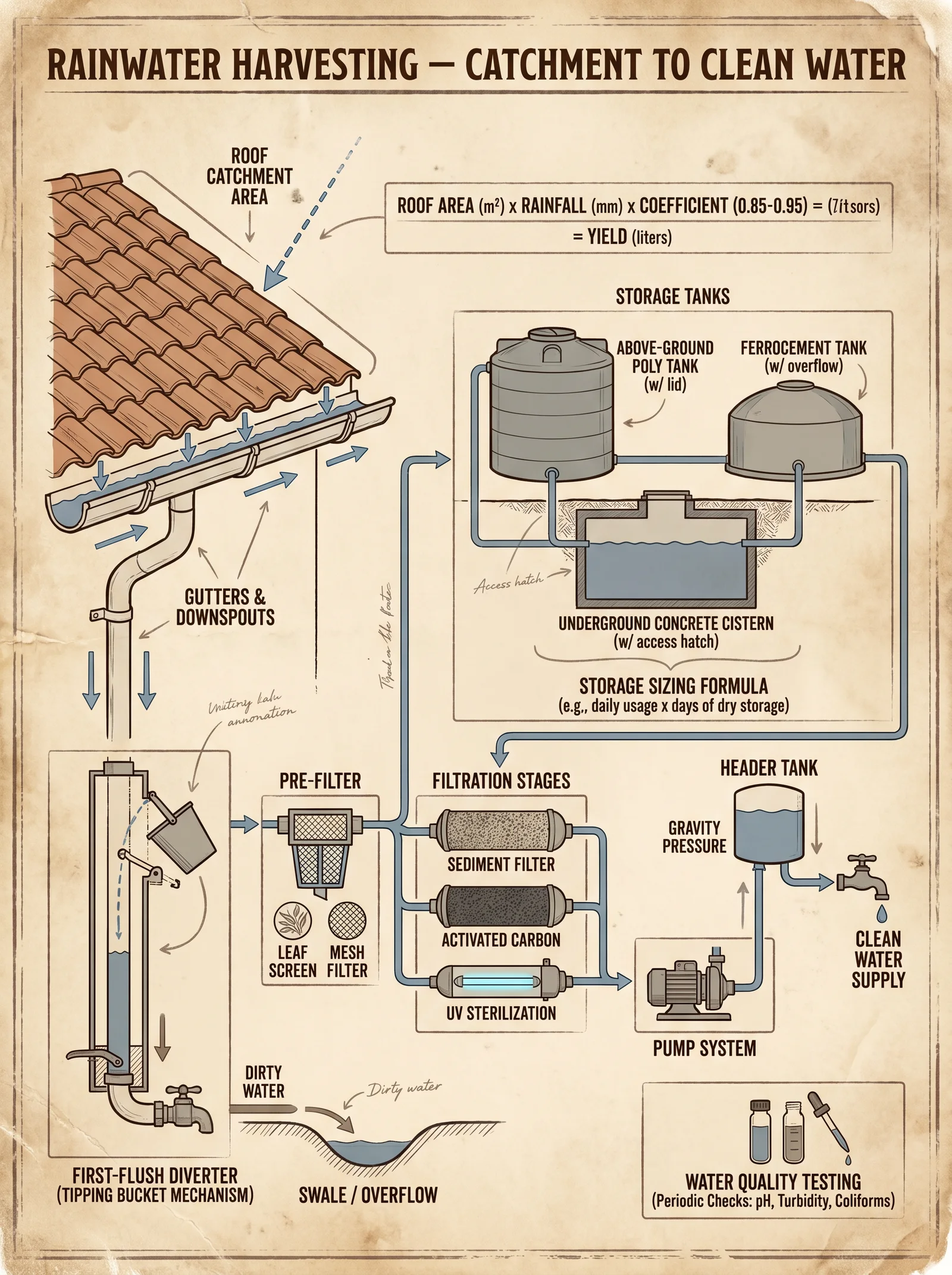

• Water Harvesting: Onsite capture, filtration, and storage of rainwater and greywater for potable and irrigation use.
• Waste Recycling Integration: Closed-loop systems converting human and organic waste into resources without contamination.

This chapter delivers exacting steps and data for layout, earth berming, tire wall construction, and system integration.

Chapter II: Earthship Layout Protocol

Earthship layout dictates thermal performance, water collection efficiency, and waste processing efficacy.

1. Site Selection and Orientation

Step-by-Step:

1. Survey site latitude and longitude. Use GPS or topographic maps.
2. Determine true south (or north) using compass declination correction. Verify with solar noon observations.
3. Assess slope gradient with clinometer. Ensure < 5 degrees; if steeper, terrace site.
4. Identify prevailing wind direction via local meteorological data or wind sock observations.
5. Select building footprint elongated along east-west axis.

2. Floor Plan Zoning

Earthship internal zoning must separate:

• Thermally controlled living spaces (south-facing).
• Service and waste processing zones (north or leeward side).
• Water storage cisterns adjacent to catchment surfaces.

Step-by-Step:

1. Design living spaces with maximum south-facing glazing, approximately 60–70% of wall area.
2. Allocate tire walls on north, east, and west for thermal mass and insulation.
3. Position water cisterns downhill from roof catchment for gravity feed.
4. Integrate waste processing chamber with access from service zones.

Chapter III: Earth Berming Protocol

Earth berming stabilizes internal temperature, shields from wind, and adds structural mass.

Material Specifications

Berm Construction Steps

1. Excavate foundation trenches 0.6 m wide and 1.2 m deep along building perimeter.
2. Compact gravel base at 98% compaction to 15 cm depth.
3. Layer loam soil in 30 cm lifts, compacting each to 95% Proctor Density using vibratory plate compactor.
4. Slope berm at 3:1 (horizontal:vertical) for stability.
5. Seal berm surface with clay slurry (20% clay by volume mixed with water) to prevent erosion.
6. Allow berm to settle for 7 days before proceeding with wall construction.

Chapter IV: Tire Wall Construction Protocol

Tire walls are the core thermal mass and structural element in Earthship design.

Material Specifications

Step-by-Step Construction

1. Prepare the foundation trench as per berming protocol beneath wall footprint.
2. Place the first tire on foundation; ensure level using laser level.
3. Fill tire with moistened loam soil; compact with pneumatic tamper or manual rod until firm and dense, no voids remain.
4. Drive rebar stakes vertically through tire center, anchoring into foundation.
5. Stack subsequent tires in offset pattern (running bond), interlocking for lateral stability.
6. Repeat filling, compaction, and rebar insertion for each tire layer.
7. Construct walls to minimum height of 2.4 m for living areas; 1.8 m for service zones.
8. Apply wire mesh on exterior and interior surfaces for stucco application.
9. Finish with cement-lime stucco (see Volume IV: The Mason’s Codex, Chapter V).

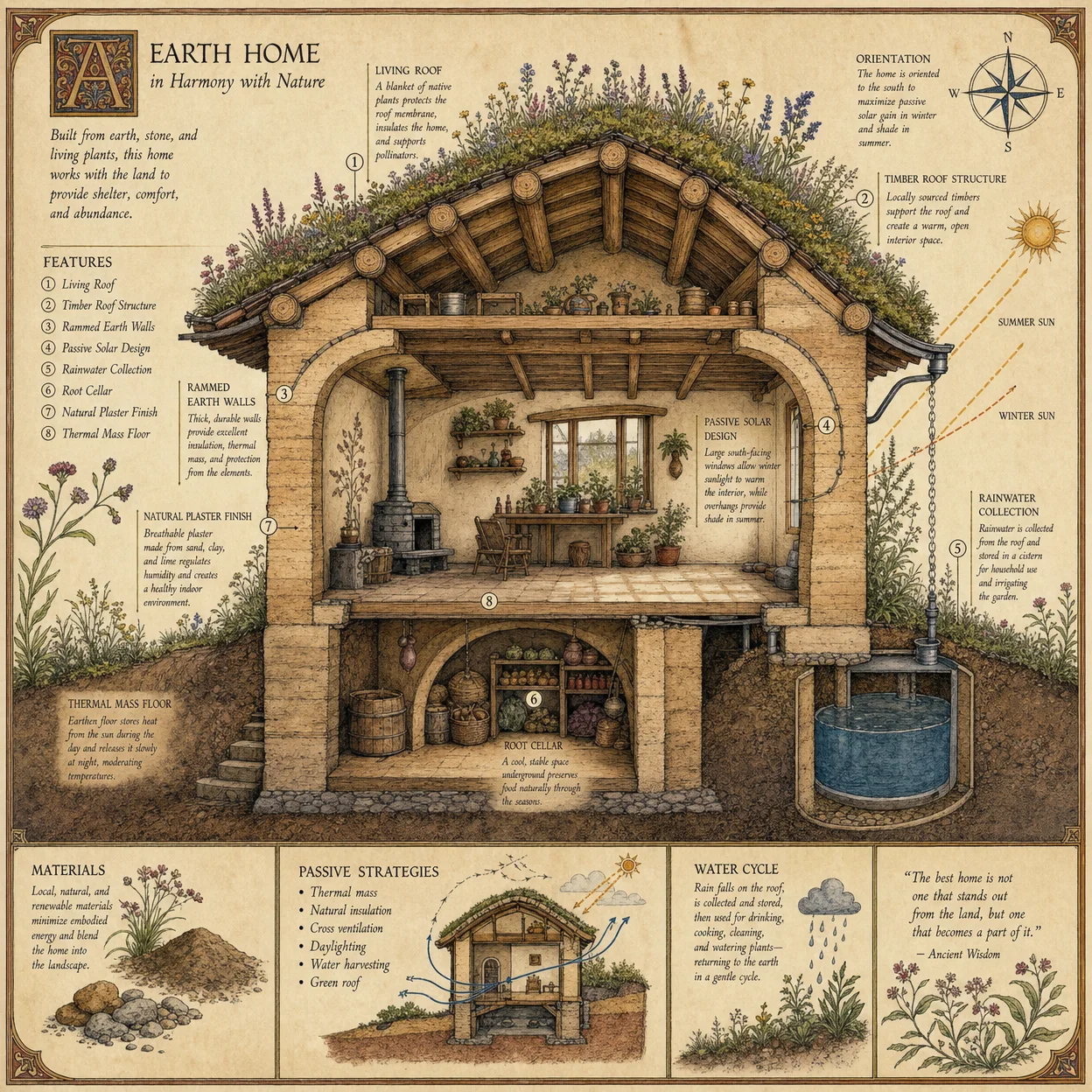

Chapter V: Thermal Mass and Passive Solar Strategy Integration

Thermal mass walls absorb solar heat during the day, releasing it at night, minimizing heating energy.

Thermal Performance Data

Step-by-Step Passive Solar Design

1. Calculate solar altitude angle at winter solstice for site latitude.
2. Design roof overhangs to shade windows during summer high sun angles but allow full winter sun penetration.
3. Position windows with U-value < 1.5 W/m²·K facing true south (or true north in Southern Hemisphere).
4. Install interior thermal shutters or heavy curtains for thermal retention at night.
5. Incorporate skylights or solar tubes for daylighting in interior zones.

Chapter VI: Water Harvesting Systems Protocol

Earthships employ multiple water catchment and recycling systems for potable and non-potable use.

Rainwater Catchment Calculation

Step-by-Step Water Catchment Construction

1. Construct sloped metal or tile roof with minimum slope 15°.
2. Install gutter system with leaf screens and first-flush diverters.
3. Connect gutters to sealed cisterns fabricated from polyethylene or concrete, capacity minimum 10,000 liters.
4. Seal cisterns with potable-grade sealant (see Volume VIII: The Water Codex, Chapter II).
5. Install gravity-fed sediment filters and UV sterilization units for potable water supply.

Chapter VII: Waste Recycling Integration Protocol

Earthship waste systems separate and recycle greywater and blackwater, minimizing contamination.

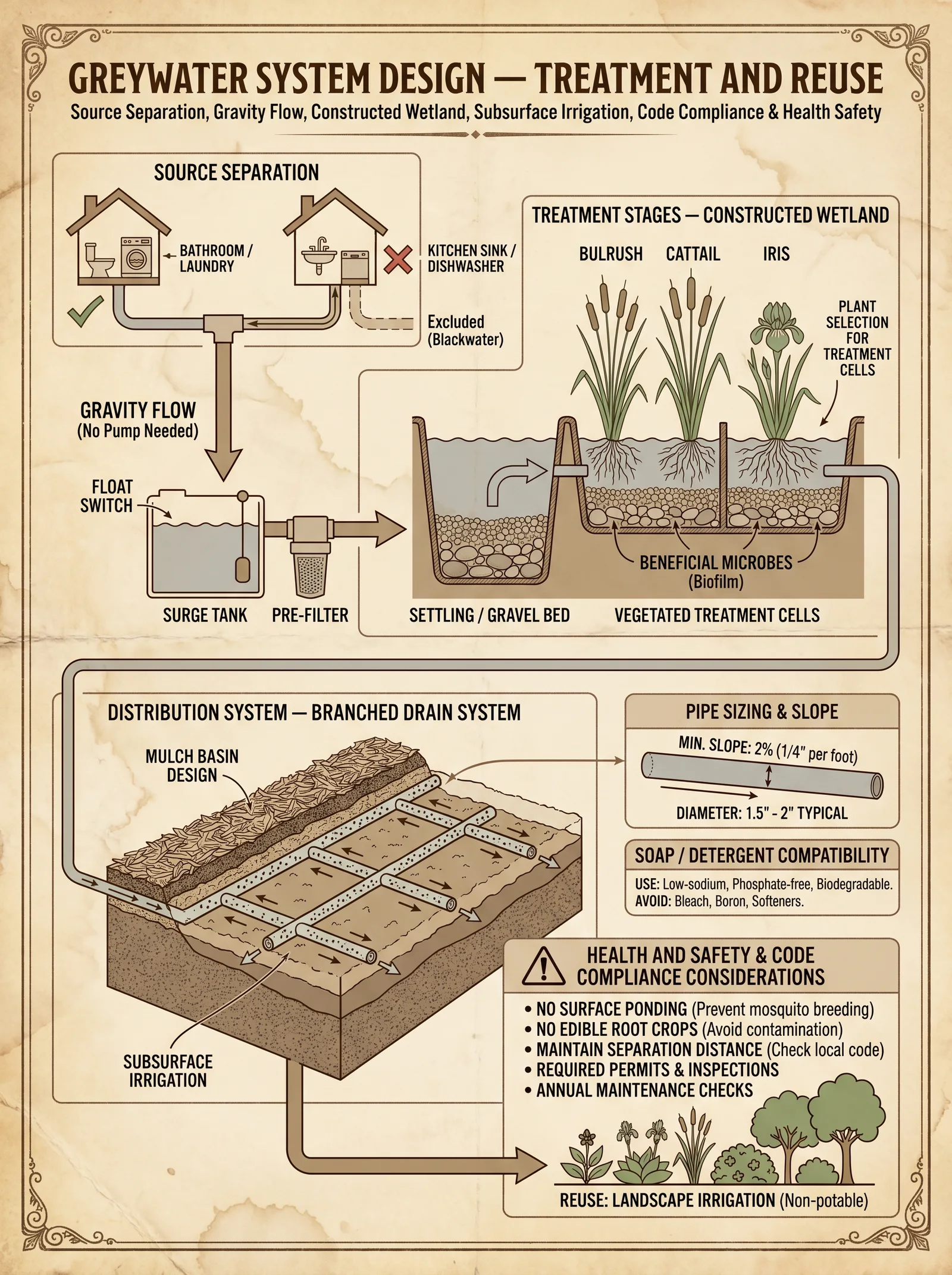

Greywater Treatment

1. Collect greywater from sinks, showers, and laundry.
2. Direct greywater into botanical cells planted with wetland plants for phytoremediation.
3. Use subsurface flow constructed wetlands with gravel media for filtration.
4. Recycle treated greywater for irrigation of non-food plants.

Blackwater Treatment

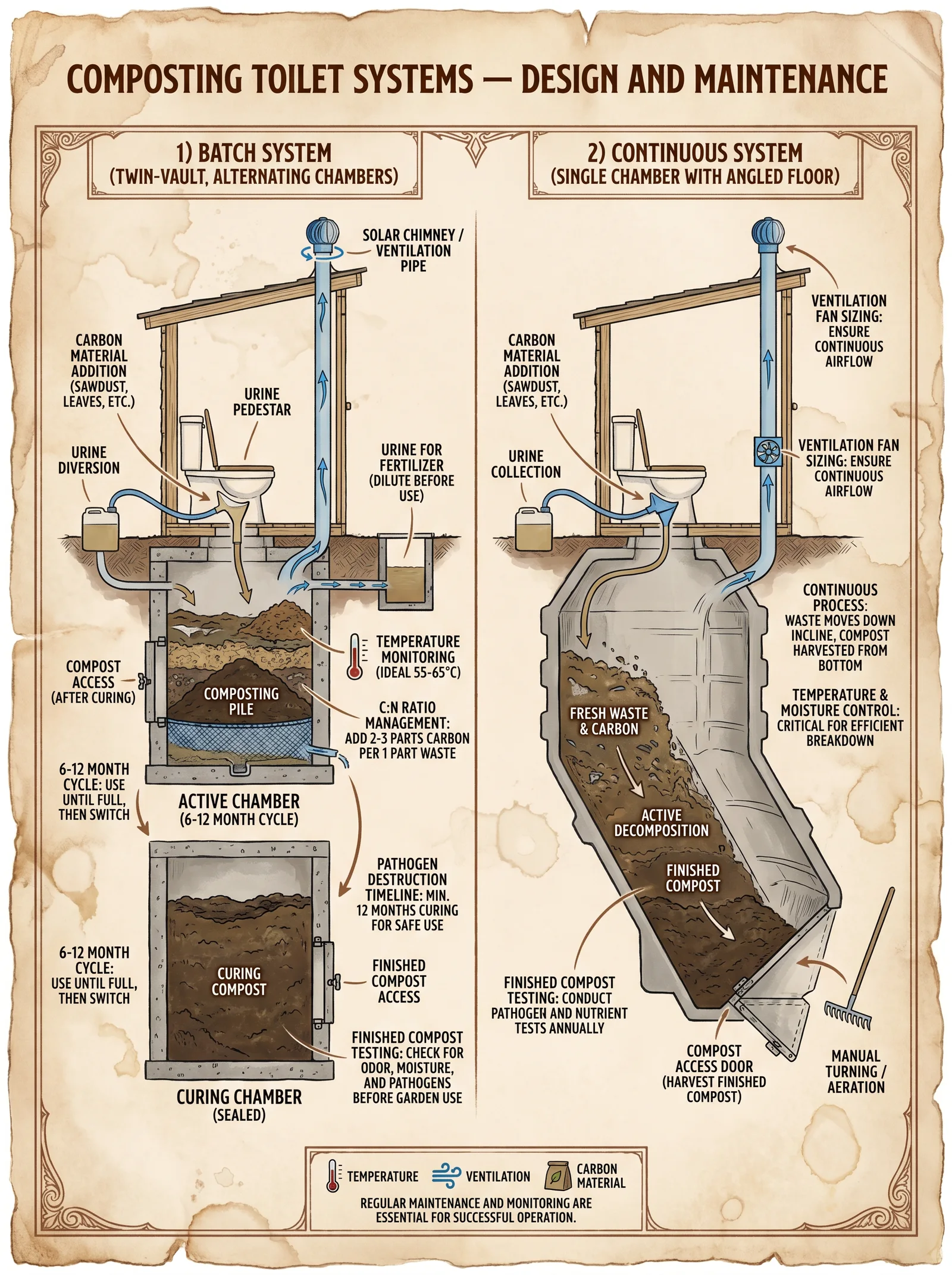

1. Install composting toilets with urine diversion to separate solid and liquid waste.
2. Collect solid waste in sealed bins with sawdust or biochar to promote aerobic composting.
3. Maintain compost temperature at 55°C for minimum 7 days to sanitize pathogens.
4. Use finished compost as soil amendment for non-edible landscaping.

Appendices

Appendix A: Material Specifications Summary

Appendix B: Thermal Performance Comparison

Final Notes

The mastery of Earthship architecture lies in the precise integration of natural materials, passive solar dynamics, and closed-loop resource systems. The protocols delineated in this volume are sacred knowledge, tested by time and necessity. The apprentice must execute every instruction to the letter: the survival of your community depends upon it.

For detailed construction techniques related to stucco application and water purification, consult Volume IV: The Mason’s Codex, and Volume VIII: The Water Codex respectively.

End of Volume III: Earthship Design Principles

<!-- SECTION 18 -->

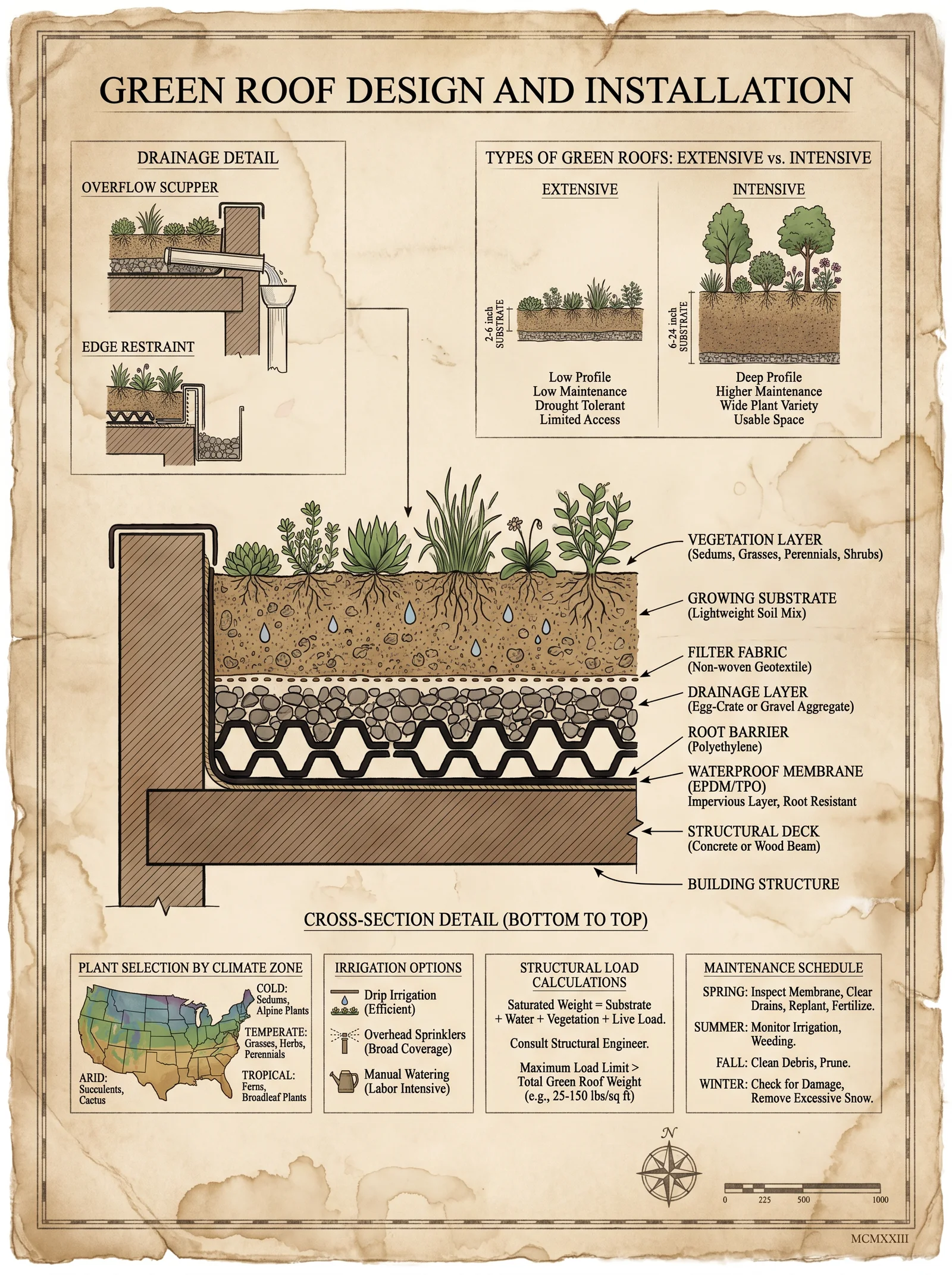

The Complete Practitioner's Codex, Volume III: Living Roof Construction

Chapter VII: Design and Installation of Green Roofs—Waterproofing, Drainage, Soil Substrate, and Plant Selection

Preamble

The living roof is a sacred armor for the edifice, a covenant between human craft and nature’s resilience. This chapter delivers encrypted, field-proven protocols to construct living roofs capable of enduring relentless assaults of weather, gravity, and time. Each procedure is an invocation: precise, unyielding, and complete. Follow every step without deviation. The survival of both structure and occupant depends on your mastery.

Section 1: Roof Deck Preparation

The roof deck is the foundation of all subsequent layers. Imperfections here doom the entire system. Begin with an unyielding surface, clean, sound, and engineered to bear the load of the living roof assembly.

Protocol 1.1: Roof Deck Inspection and Reinforcement

1. Inspect structural capacity:
   For existing structures, verify load capacity per Table 1.1. If capacity is insufficient, reinforce per Volume VI: Structural Fortification, Chapter IV before continuing.

2. Surface cleaning:
   Remove all debris, loose particles, oils, and coatings incompatible with membrane adhesion using mechanical brushing and solvent wash (use isopropyl alcohol, 99% purity).

3. Surface leveling:
   Fill cracks, voids, and uneven areas with polymer-modified cementitious compound. Allow curing for 24 hours minimum at 20°C.

4. Priming:
   Apply a primer compatible with the waterproofing membrane (consult membrane manufacturer’s datasheet). Use roller or spray to achieve uniform coverage. Allow drying per manufacturer’s instructions.

Table 1.1: Load Capacities for Roof Decks (Dead + Live Loads in kg/m²)

Section 2: Waterproofing Membrane Installation

Waterproofing is the sacred veil that must never fail. It is the bulwark against water intrusion, rot, and structural degradation.

Protocol 2.1: Selection and Installation of Waterproofing Membrane

Membrane Types: Choose between bituminous, PVC, TPO, or EPDM membranes. EPDM is recommended for its elasticity and durability in green roof applications.

Steps:

1. Membrane Layout:
   Roll out membrane sheets perpendicular to the slope to facilitate drainage. Overlap edges by minimum 100 mm.

2. Seam Sealing:
   For EPDM, use adhesive and primer system supplied by manufacturer. Apply primer to both overlapping surfaces, allow tack time (approx. 10 minutes), apply adhesive evenly, and press firmly together.

3. Detailing:
   Seal all penetrations (vents, pipes) using prefabricated boots or custom-fabricated patches. Use termination bars and sealants to secure edges.

4. Inspection:
   Conduct a flood test by ponding 25 mm of water for 24 hours. Inspect for leaks; repair immediately.

Section 3: Drainage Layer Placement

Drainage must channel excess water away without impeding substrate moisture retention or root growth.

Protocol 3.1: Drainage Layer Construction

Materials:

• Drainage boards (HDPE or composite)
• Filter fabric (non-woven, minimum 150 g/m²)

Steps:

1. Filter Fabric Installation:
   Lay filter fabric directly over waterproof membrane, ensuring full coverage with minimum 200 mm overlap at seams.

2. Drainage Board Placement:
   Place drainage boards on top of filter fabric. Boards must fit tightly without gaps. Cut to size with utility knife.

3. Edge Sealing:
   Seal edges of drainage boards with compatible adhesive to prevent displacement.

4. Drainage Outlets:
   Connect drainage outlets or scuppers to drainage layer to evacuate water. Ensure outlets have debris protection.

Section 4: Soil Substrate Layer Construction

The soil substrate is the life-giving matrix. It must balance weight, water retention, drainage, and nutrient provision.

Protocol 4.1: Substrate Composition and Layering

Table 4.1: Recommended Substrate Compositions by Green Roof Type

Steps:

1. Substrate Mixing:
   Combine components uniformly using a mechanical mixer or manual tilling. Ensure no clumps or large debris remain.

2. Layer Application:
   Spread substrate evenly over drainage layer. Target thickness by green roof type per Table 4.2.

3. Compaction:
   Lightly compact substrate by manual tamping to minimize settlement while preserving porosity.

4. Moisture Conditioning:
   Moisten substrate to 50–60% field capacity for optimal planting conditions.

Table 4.2: Substrate Thickness and Load by Green Roof Type

Section 5: Plant Selection and Planting

Plants are the living shield. Their selection is strategic: drought tolerance, root behavior, growth habit, and maintenance demand must be balanced.

Protocol 5.1: Plant Selection Criteria

Table 5.1: Recommended Plant Species for Green Roofs

Steps:

1. Plant Procurement:
   Obtain healthy, disease-free plants from certified nurseries. Ensure species match local climate conditions.

2. Planting Preparation:
   Mark planting areas with a grid for uniform spacing based on species growth habit and mature size.

3. Planting Execution:
   Dig holes in substrate 1.5 times root ball size. Place plants carefully to avoid root damage. Backfill and press substrate firmly.

4. Watering:
   Immediately water plants to field capacity using drip irrigation or manual watering.

5. Mulching:
   Apply 10 mm layer of organic mulch (bark chips or straw) to conserve moisture and suppress weeds.

Section 6: Maintenance and Monitoring Protocols

A living roof demands vigilant stewardship to sustain its sacred purpose.

Protocol 6.1: Initial 12-Month Maintenance Schedule

Summary Table: Complete Living Roof Layer Assembly

Appendix: Equipment and Tools Required

Final Edict

The living roof is a fortress forged in the union of elemental mastery and biological resilience. Every layer, every plant, every molecule of substrate is a soldier in this eternal battle against entropy. Your hands must be steady, your mind sharp, and your heart unwavering. This testament is your sacred script—inscribe it into your craft, and the roof shall endure beyond your mortal span.

For advanced water management and purification protocols integral to the living roof irrigation system, consult Volume VIII: The Water Codex, Chapter II.

End of Volume III, Chapter VII: Living Roof Construction.

<!-- SECTION 19 -->

The Complete Practitioner's Codex, Volume IV

The Builder's Testament: Post and Beam Timber Framing

Chapter I: Traditional Post and Beam Construction

Introduction

The art of Post and Beam Timber Framing stands as the cornerstone of sacred architecture, a discipline melding structural integrity, material wisdom, and timeless craftsmanship. This volume delivers an uncompromising guide to the selection, preparation, joinery, assembly, and raising of post and beam frameworks, essential for any master builder seeking to construct enduring sanctuaries or fortifications. Every protocol herein is precise, unvarnished, and exhaustive, designed to preserve life and legacy.

Section 1: Timber Selection

The foundation of any post and beam structure is the timber itself. Selection criteria are dictated by species properties, dimensional stability, strength, and resistance to environmental degradation.

1.1 Timber Species Properties

The following table catalogs essential properties of recommended species:

Selection Protocol:

1. Determine structural load requirements (see Section 3).
2. Identify environmental exposure (indoor, outdoor, ground contact).
3. Cross-reference species with decay resistance and strength.
4. Prioritize White Oak or Douglas Fir for primary load-bearing elements.
5. Utilize Western Red Cedar for exposed elements requiring decay resistance.
6. Reject timber with visible defects: cracks, rot, insect damage.

Section 2: Timber Preparation

Timber preparation transforms raw logs into dimensionally stable, workable members ready for joinery.

2.1 Felling and Initial Milling

1. Select mature trees, minimum diameter 30 cm at breast height.
2. Fell using crosscut saw or chainsaw ensuring minimal shock to fibers.
3. Limb and buck logs into lengths 4.0 m to 6.0 m, depending on design.
4. Mill to rough dimensions 25 mm larger than final dimensions to allow for dressing.

2.2 Drying Protocol

Air Drying:

1. Stack timber with 25 mm stickers every 600 mm to allow airflow.
2. Cover top to prevent rainfall but leave sides open.
3. Allow minimum 12 months drying for beams thicker than 150 mm.
4. Verify moisture content with a pin or resistance-type moisture meter; target 15% or below.

Kiln Drying (if available):

1. Set kiln temperature to 60°C maximum to avoid checking.
2. Maintain relative humidity at 50-60%.
3. Dry until moisture content reaches 12-15%.
4. Gradually cool and remove timber immediately to prevent mold.

2.3 Dressing and Dimensioning

1. Plane or hand adze all faces to final dimensions.
2. Square edges with a framing square and marking gauge.
3. Mark grain direction; ensure beams are oriented with growth rings convex toward the tension face to minimize warping.

Section 3: Beam Sizing and Structural Calculations

Correct beam sizing is non-negotiable for structural safety.

3.1 Load Considerations

• Dead Load: Weight of beams, roofing, cladding.
• Live Load: Occupants, furniture, snow.
• Environmental Load: Wind, seismic forces (refer to Volume X for detailed seismic codes).

3.2 Beam Sizing Chart (Span vs. Size for Douglas Fir, Sawn Lumber)

Sizing Protocol:

1. Calculate total load per beam length.
2. Select species and cross-check with the above chart or perform exact calculations (see Volume II: Structural Mechanics).
3. Oversize beams by 10% for safety and material defects.

Section 4: Joinery Design

Post and beam joinery is the sacred bond holding the structure’s integrity. Precision and fit are paramount.

4.1 Common Joint Types

Section 5: Joinery Protocols

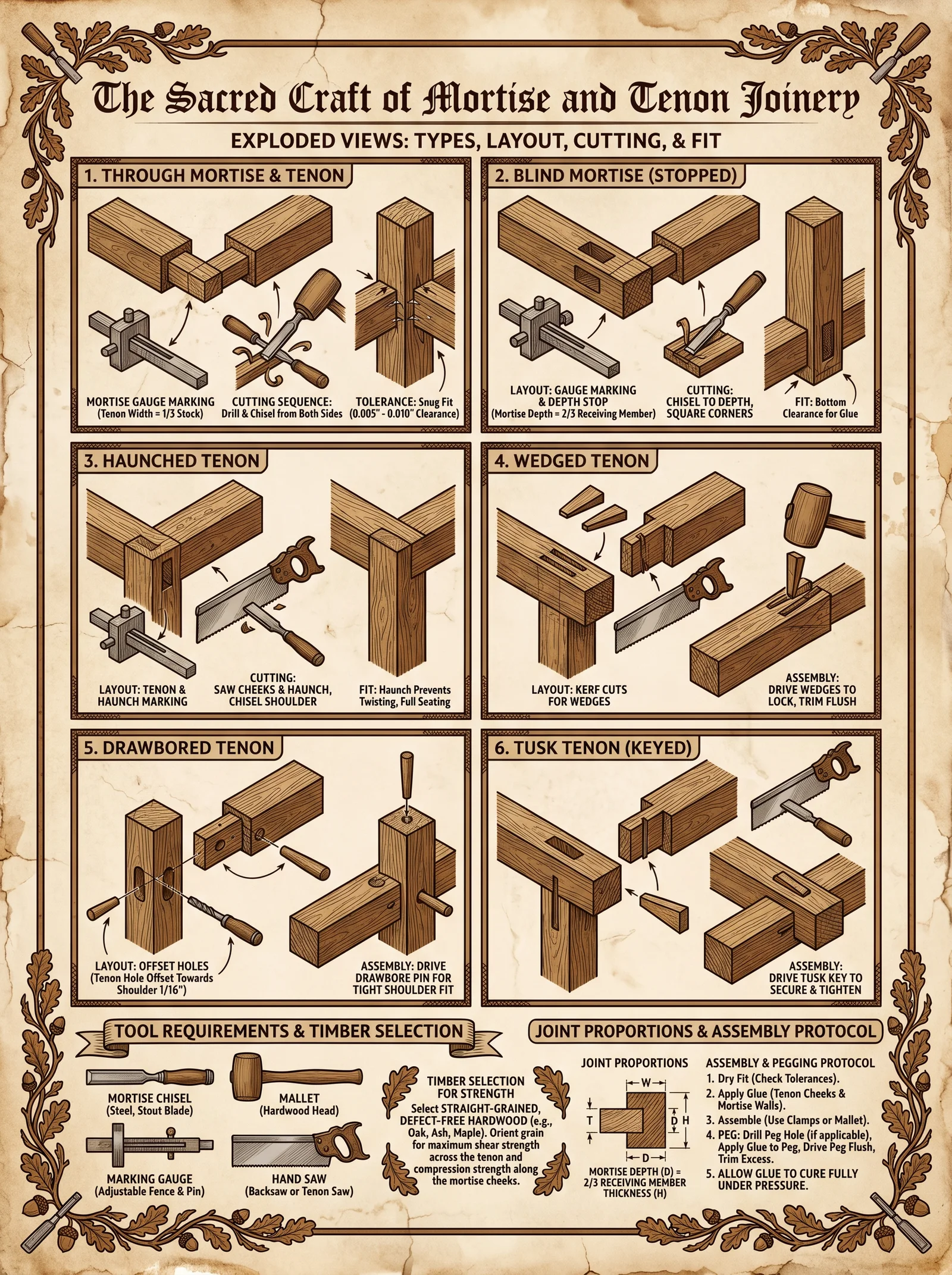

5.1 Mortise and Tenon Joint Cutting

Tools Required: Mortise chisel set, mallet, marking gauge, bevel square, handsaw.

Steps:

1. Mark tenon on beam end: length = 1/3 beam thickness; width = 2/3 beam width.
2. Mark corresponding mortise on post, centered and aligned.
3. Cut tenon cheeks with handsaw on marked lines.
4. Clean tenon cheeks with chisel for exact fit.
5. Use mortise chisel to remove waste from mortise area, depth matching tenon length.
6. Test fit; adjust with chisel for snug, no-wobble fit.
7. Drill peg holes 15 mm diameter, 50 mm from joint face, perpendicular to joint plane.
8. Insert hardwood pegs (oak recommended), taper pegs slightly for tight fit.

5.2 Dovetail Joint Cutting

Steps:

1. Mark dovetail shape on beam end; tails taper from 20° to 30°.
2. Saw along marked lines, remove waste with chisel.
3. Mark matching pin shape on post, transfer carefully.
4. Saw and chisel pins to exact fit.
5. Test assemble; ensure no play.
6. Peg with hardwood dowels if required for added security.

Section 6: Structural Bracing

Bracing preserves frame stability against lateral forces.

6.1 Brace Types

• Knee Braces: Diagonal braces connecting post to beam at approximately 45°.
• Corner Braces: Placed at frame corners for torsional rigidity.
• Raking Braces: Longitudinal braces resisting racking forces.

6.2 Brace Preparation

1. Select brace timber with minimum 75 mm thickness.
2. Cut brace length to fit snugly between post and beam.
3. Cut mortises or half-lap joints on ends for secure connection.
4. Fit brace with tight joints; peg or wedge as necessary.

6.3 Brace Installation Steps

1. Position brace in place, ensuring correct angle.
2. Mark and cut mortise or lap joints on frame members.
3. Fit brace, verify tight fit.
4. Secure with hardwood pegs or trenails.
5. For critical frames, use iron straps or bolts (refer to Volume VII: Metal Reinforcements).

Section 7: Layout Procedures

Precision layout underpins successful framing.

7.1 Tools Needed

• Carpenter's square
• Marking gauge
• Chalk line
• Plumb bob
• Measuring tape
• Scribe tool

7.2 Step-by-Step Layout for a Post and Beam Frame

1. Establish a baseline on the timber using chalk line.
2. Mark post locations according to design spacing.
3. Use carpenter's square to lay out mortise positions on posts.
4. Mark tenon dimensions on beams using marking gauge.
5. Scribe shoulder lines on tenons for precise cutting.
6. Double-check all dimensions before cutting.

Section 8: Assembly Protocol

8.1 Dry Assembly (Test Fit)

1. Lay out all beams and posts on level ground.
2. Assemble all joints without pegs to verify fit.
3. Adjust any joints showing looseness or misalignment.
4. Confirm squareness and plumb of frame.

8.2 Final Assembly

1. Disassemble after dry fit.
2. Apply linseed oil or beeswax to joint surfaces to prevent shrinkage and ease assembly.
3. Reassemble frame on the ground.
4. Insert pegs into mortise and tenon joints, driving them flush.
5. Install braces and secure with pegs.
6. Use temporary bracing or scaffolding as necessary.

Section 9: Raising the Frame

Raising the frame demands coordinated effort and precise control.

9.1 Pre-Raising Checks

• Verify all pegs fully inserted.
• Check braces installed.
• Confirm site level and footing readiness.

9.2 Raising Steps

1. Position base of posts on prepared footings.
2. Use levers, ropes, and manpower to raise posts upright.
3. Temporarily brace posts with stakes.
4. Lift beams onto posts, engage joints carefully.
5. Drive pegs home, tighten all joints.
6. Install permanent diagonal bracing.
7. Secure with additional pegging or bolting as required.

Appendix: Common Joint Dimensions

Final Words

Mastery of post and beam timber framing is not merely a skill but a sacred trust passed through generations. Every cut, joint, and assembly carries the weight of legacy and survival. This volume delivers the life-or-death precision necessary to wield timber as a vessel for sanctuary and strength.

For detailed protocols on timber treatment, preservation, and advanced structural analysis, consult Volume II: Structural Mechanics and Volume VIII: Timber Preservation Codex.

End of Volume IV: Post and Beam Timber Framing.

<!-- SECTION 20 -->

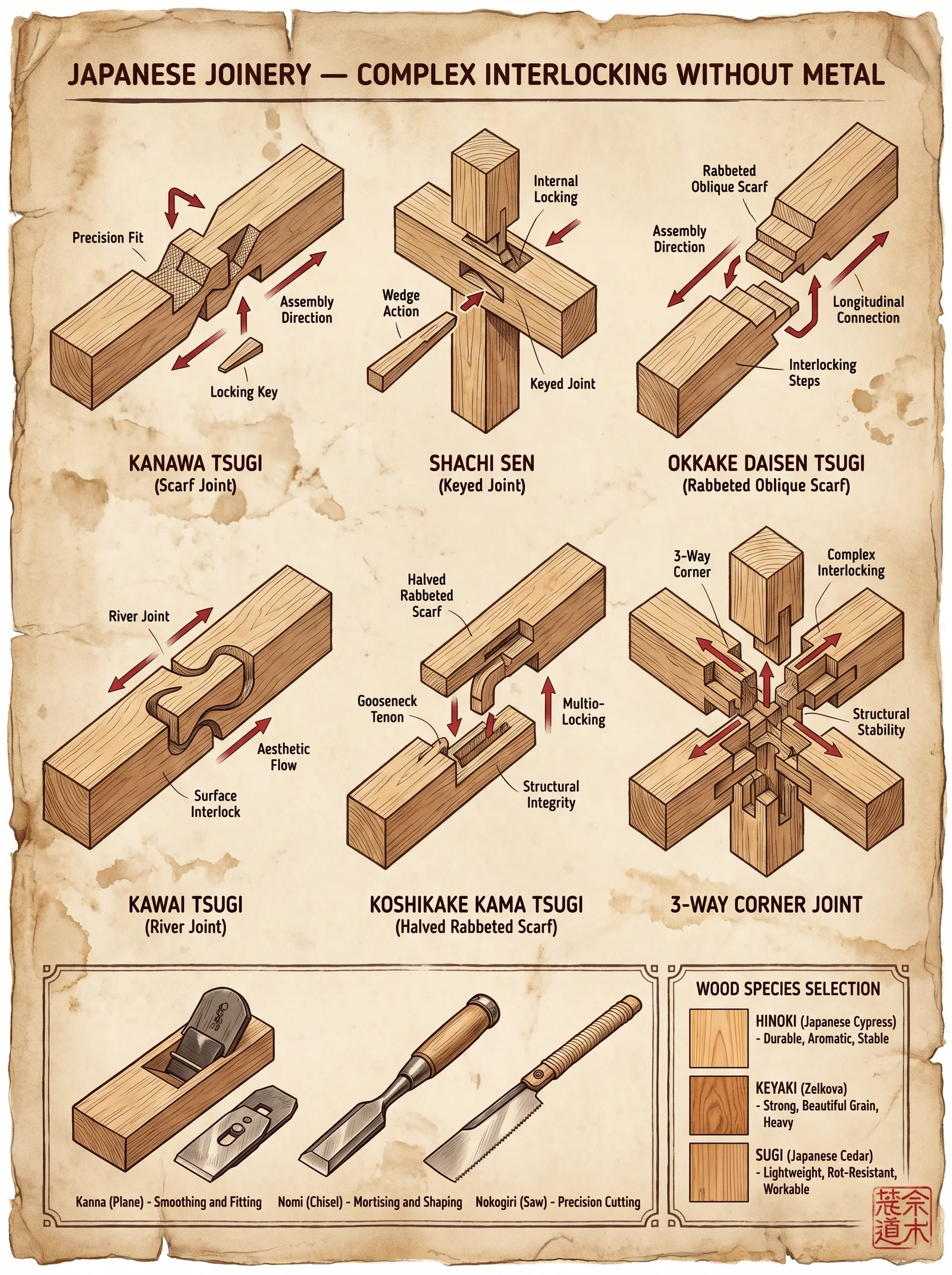

Volume IV: Japanese Wood Joinery

Chapter I: The Builder’s Testament on Japanese Joinery Techniques — Mastery of Complex Interlocking Joints Without Metal Fasteners

Introduction: The Sacred Art of Japanese Wood Joinery

The Japanese tradition of wood joinery stands as a pinnacle of architectural and artisanal mastery, preserving sacred knowledge that transcends mere construction. Each joint is a living testament to centuries of refinement, designed to marry strength, flexibility, and aesthetic purity without reliance on metal fasteners. This chapter imparts a comprehensive, stepwise methodology for mastering the most vital joints, with a focus on the Kanawa Tsugi and Kumiki assemblies. Every detail is laid bare: layout, cutting, fitting, and assembly protocols, alongside essential tool specifications and joint performance data.

Section I: Fundamental Principles and Tool Preparation

Before engaging any joinery, the master builder must understand the fundamental principles governing Japanese wood joinery:

• Interlocking Geometry: Joints rely on precise geometry to transfer load and resist shear and tensile forces without nails or screws.
• Wood Grain Orientation: Grain alignment maximizes joint strength; typically, long grain-to-long grain contact is essential.
• Wood Selection: Seasoned, straight-grained hardwoods (e.g., sugi, keyaki) are preferred for their dimensional stability and resilience.

Tools Required for Precision Japanese Joinery

Section II: Kanawa Tsugi Joint — The Sacred Scarf Joint

Purpose and Application

The Kanawa Tsugi (literally "crane scarf joint") is a complex, interlocking scarf joint used to connect two timber members end-to-end with superior tensile and shear strength. Its design accommodates both longitudinal stress and bending moments, making it indispensable in beam repairs and extensions.

Step-by-Step Protocol for Kanawa Tsugi Layout and Fabrication

Materials and Dimensions

Note: Dimensions scale proportionally with timber size.

Layout Procedure

1. Mark the Timber Length: Using the steel ruler, measure and mark the total joint length (L) from the timber ends.
2. Determine Tenon and Mortise Placement: Mark the tenon width (W) and thickness (T) on the timber faces as per the table above.
3. Draw Layout Lines: Use the sumitsubo ink line to mark crisp, straight lines for tenon shoulders and mortise boundaries.
4. Mark Interlocking Hooks: Sketch the crane-hook profile on the tenon and mortise areas according to the Kanawa Tsugi geometry (see Figure 1).

Cutting Procedure

1. Cut Tenon Shoulders: Using the dozuki saw, carefully cut along the shoulder lines to the marked depth.
2. Saw Tenon Profile: Carefully saw the interlocking hook profiles on the tenon ends.
3. Chisel Mortises: Using nomi chisels, remove wood from the mortise areas, chiseling precisely to the marked depth and profile.
4. Test Fit: Insert tenon into mortise; check for tightness without forcing. Adjust with kanna plane or chisel for perfect fit.

Assembly Procedure

1. Dry Fit Test: Assemble joint without adhesive to verify interlocking integrity.
2. Apply Natural Adhesive: Optionally, apply rice glue (see Volume 8: The Water Codex, Chapter III for preparation) to joint surfaces.
3. Final Assembly: Insert tenon into mortise, ensuring hooks fully interlock.
4. Clamp and Cure: Use wooden clamps or rope bindings to maintain compression during glue curing (minimum 24 hours at 20°C).

Kanawa Tsugi Joint Stress Tolerances

Section III: Kumiki Assembly — The Interlocking Puzzle

Purpose and Application

Kumiki ("joining wood") is a family of interlocking joinery techniques used to construct three-dimensional wooden puzzles, furniture, and structural frameworks with no metal fasteners. The technique demands precision and an intimate understanding of complex joint geometries.

Case Study: Kumiki Mortise and Tenon Interlock Joint

Materials and Dimensions

Step-by-Step Protocol for Kumiki Joint Fabrication

Layout and Marking

1. Mark Timber Faces: Using takebari, mark mortise and tenon dimensions on respective timber members.
2. Transfer Markings: Use sumitsubo to draw precise guide lines on all faces.
3. Define Interlocking Surfaces: Mark hook and locking tab profiles on both mortise and tenon components.

Cutting Procedure

1. Cut Tenon: With dozuki saw, cut tenon shoulders and cheeks according to layout.
2. Chisel Mortise: Remove wood from mortise area with nomi chisels, creating clean, square edges.
3. Shape Locking Tabs: Carefully carve the locking tabs that enable the self-locking action.
4. Fine Adjustment: Use kanna plane to refine mating surfaces for friction fit.

Assembly Procedure

1. Dry Assembly: Test fit pieces to verify locking function without gaps or excessive force.
2. Apply Adhesive: Optionally apply natural glue to locking faces for permanent assembly.
3. Final Join: Insert tenon into mortise, engage locking tabs securely.
4. Clamp: Maintain pressure during curing phase as necessary.

Kumiki Joint Stress Performance

Section IV: Comparative Table of Common Japanese Wood Joints

Section V: Maintenance and Longevity Protocols

1. Annual Inspection: Check joints for looseness or wood movement. Record measurements with calipers.
2. Re-tightening: If joints loosen, disassemble carefully and plane mating surfaces before reassembly.
3. Moisture Control: Ensure timber moisture content remains between 8%-12% to prevent swelling or cracking.
4. Surface Protection: Apply natural oils or lacquers to prevent UV and insect damage.

Final Words to the Apprentice

The mastery of Japanese wood joinery demands unwavering discipline, precision, and reverence for the living timber. Each joint embodies a sacred covenant between builder, material, and the forces of nature. Through diligent practice of the outlined protocols, you will transcend the mechanical and step into the realm of artistry and structural sanctity. Preserve this knowledge, for it is the backbone of all enduring construction.

For further exploration of timber selection, wood moisture management, and advanced carving tools, consult Volume II: The Sacred Timber Codex, Chapters IV and VII.

<!-- SECTION 21 -->

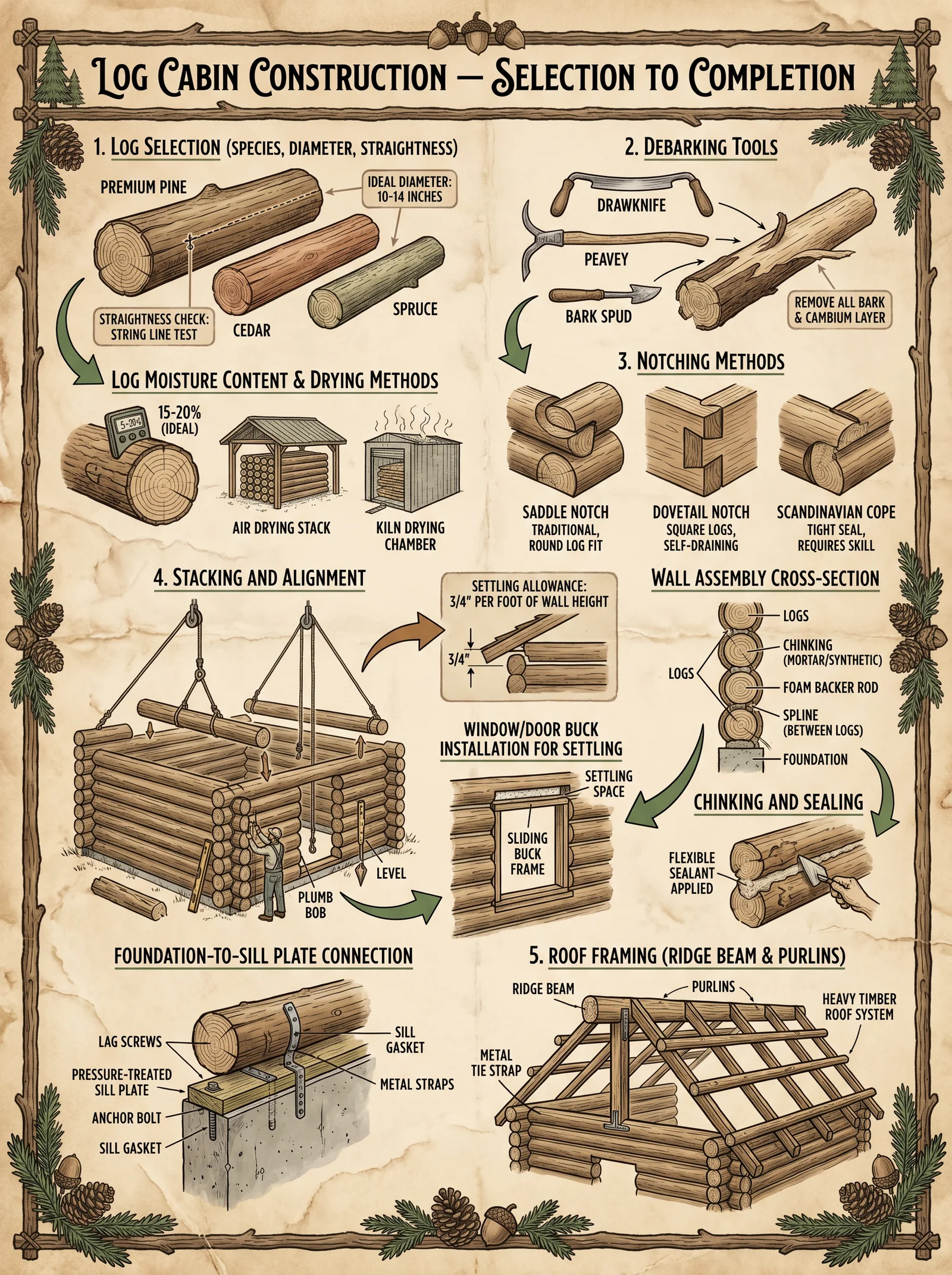

The Complete Practitioner's Codex, Volume IV: Log Cabin Construction

Chapter I: Introduction to Log Cabin Construction

Log cabins stand as timeless sanctuaries, embodying resilience and harmony with the earth. This volume transmits the sacred, suppressed knowledge essential to constructing these fortresses of survival. The protocols herein mandate precision: from log selection through roof framing, every detail serves life preservation.

Chapter II: Log Selection and Preparation

2.1 Log Species Selection

The choice of wood species determines structural integrity, longevity, and environmental resilience. The following table catalogs optimal species, accompanied by their mechanical properties, typical moisture content at felling, and decay resistance.

¹Decay resistance rating follows the Wood Durability Scale: High (resists decay >20 years exposed), Moderate (10–20 years), Low (<10 years).

Actionable Protocol 2.1: Selecting Suitable Logs

1. Survey the local forested area, identifying trees matching species in the table.
2. Prioritize species with High decay resistance for exterior walls.
3. Select trees with straight trunks and minimal taper.
4. Avoid trees with excessive knots, cracks, or infestations.
5. Measure diameter at breast height (DBH); optimal logs range between 20–35 cm (8–14 inches) diameter.
6. Confirm moisture content via a handheld moisture meter; ideal felling moisture content is 50–60% for ease of peeling and shaping.

2.2 Log Felling

Felling must be executed with precision to preserve log integrity and safety.

Tools Required:

• Felling axe (sharp, balanced)
• Crosscut saw or chainsaw
• Felling wedges (wood or plastic)
• Protective gear (helmet, gloves, boots)

Step-by-Step Protocol 2.2: Felling

1. Assess Tree Lean: Determine natural lean direction.
2. Clear Felling Path: Remove obstacles on the lean side.
3. Make the Face Cut:
   • Position yourself perpendicular to lean.
   • Using the axe or saw, cut a notch on the lean side, approx. 1/3 of trunk diameter deep.
   • The notch angle should be 70 degrees, with a flat bottom.
4. Make the Back Cut:
   • On the opposite side, make a horizontal cut slightly above the notch bottom.
   • Insert felling wedges to prevent premature tree fall and control direction.
5. Retreat Safely: Step back along a pre-planned path at 45 degrees from lean side.
6. Observe Tree Fall: Allow tree to fall naturally; never force with wedges beyond resistance.

2.3 Log Peeling

Peeling the bark prevents insect infestation and promotes drying.

Tools Required:

• Draw knife (blade ~20 cm)
• Bark spud or peeling spade
• Water source (optional)

Step-by-Step Protocol 2.3: Peeling

1. Position log horizontally on supports, elevated 30 cm off ground.
2. Begin at butt end; insert bark spud under edge of bark.
3. Pry bark away slowly, working around circumference.
4. Use draw knife to shave residual cambium; angle blade at 30 degrees.
5. Remove all loose bark, especially near knots.
6. If bark resists, wet bark lightly and wait 24 hours before reattempting.

Chapter III: Notching Methods

The interlocking of logs via notching dictates cabin strength and weatherproofing. Choose the notch type aligned with your skill and local conditions.

3.1 Common Notching Types

3.2 Saddle Notch Construction Protocol

Tools Required:

• Draw knife
• Froe and mallet
• Chisel set
• Marking gauge or pencil
• Measuring tape

Step-by-Step Protocol 3.2:

1. Place lower log securely on supports.
2. Lay upper log atop lower log, align lengthwise.
3. Mark the curve of the lower log’s surface onto the upper log using a marking gauge.
4. Using draw knife and chisel, carve a concave notch matching the lower log’s diameter curvature.
5. Test fit; adjust notch depth for snug, immobile fit.
6. Repeat for every log in sequence, ensuring consistent notch dimensions.

3.3 Dovetail Notch Construction Protocol

Tools Required:

• Handsaw (fine-toothed)
• Chisels
• Mallet
• Measuring tools (square, ruler)
• Marking knife

Step-by-Step Protocol 3.3:

1. Measure and mark a trapezoidal notch on the end of each log, with the wider base inside.
2. Saw vertical cuts at notch edges, depth matching notch height.
3. Remove waste wood with chisel, forming a tight trapezoidal slot.
4. On mating log, cut a matching trapezoidal tenon.
5. Test fit, adjusting for a friction lock fit.
6. Repeat for all logs, verifying uniformity.

Chapter IV: Stacking and Alignment

Stacking logs is a sacred act that demands precision for stability and weatherproofing.

4.1 Horizontal Spacing and Overlap

The spacing and overlap of logs influence structural integrity. The following table outlines minimum spacing and overlap dimensions by log diameter.
